Why do vertex diffuse values get overriden by shaders generating data on load?

Author

Message

Chris Tate

DBPro Master

15

Years of Service

User Offline

Joined: 29th Aug 2008

Location: London, England

Posted: 24th Aug 2018 04:02

Link

Hi

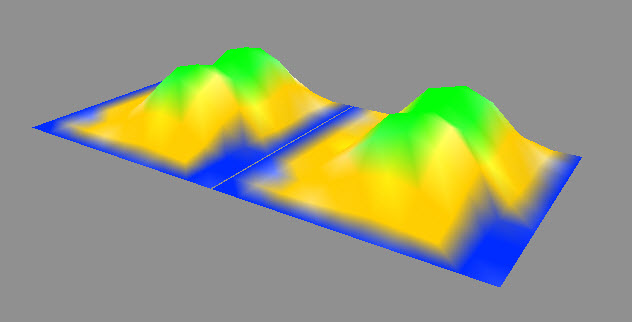

I have attached a project folder containing code which demonstrates that the vertex colours of a loaded 3D object are overridden when generating data upon assigning the shader, which was written for vertex color output for testing purposes.

The code which requires Matrix Utils indicated that an attempt to write the diffuse values back leads to no change whatsoever.

You will have to set the runtime settings in the code as indicated in the comments.

Does anybody know the best solution to get around this problem?

`VertexColorData
`VertexColorData.dba
`======================

` Generating Data affects vertex diffuse on render?

DoNotGenerateData = 1

` Attempt to rewrite diffuse colours?

RewriteVertexData = 0

` Prepare scene

Color Backdrop 0x909090
Sync Rate 80
Sync On

` Open results file for writing

If File Exist(Dir EXE() + "\Results.xml")
	Delete File "Results.xml"
Endif

Open To Write 1, 	Dir EXE() + "\Results.xml"
Write String 1, "<Results>"

` Load terrains with vertex colors and output to file

Dim VertexData(2,400)

For i = 1 to 2
	Load Object "BasicTerrain.x", i
	Move Object Right i, (i+i-3) * Object Size(i) * 0.7
	Load Effect "VertexColorTangent.fx", i, 0, DoNotGenerateData

	If RewriteVertexData
		For l = 0 to Get Limb Count(i)
			If Limb Has Mesh(i,l)
				Lock VertexData For Limb i, l, 2
				vcount = Get VertexData Vertex Count()
				For v = 0 to vcount - 1
					VertexData(i,l) = Get VertexData Diffuse(v)
					Set Cursor 0, 0
					Print "Memorizing Vertex " + Str$(v) + " of " + Str$(vcount) + " for rewriting"
					If v Mod 10 = 0 Then Sync
				Next v
				Unlock VertexData
				Exit
			Endif
		Next l
	Endif

	Set Object Effect i, i
	If i = 1
		Set Effect Technique i, "ColorWithData" ` Technique with tangent usage
	Endif

	` Rewrite after generating data
	If RewriteVertexData
		For l = 0 to Get Limb Count(i)
			If Limb Has Mesh(i,l)
				Lock VertexData For Limb i, l, 2
				vcount = Get VertexData Vertex Count()
				For v = 0 to vcount - 1
					Set VertexData Diffuse v, VertexData(i,l)
					Set Cursor 0, 0
					Print "Restoring Vertex " + Str$(v) + " of " + Str$(vcount)
					If v Mod 10 = 0 Then Sync
				Next v
				Unlock VertexData
				Exit
			Endif
		Next l
	Endif

	For l = 0 to Get Limb Count(i)
		If Limb Has Mesh(i,l)
			Write String 1, Tab$() + "<Limb ID='" + Str$(l) + "' Object='" + Str$(i) + "' Name='" + Limb Name$(i,l) + "' >"
			Lock VertexData For Limb i, l, 2
			vcount = Get VertexData Vertex Count()
			For v = 0 to vcount - 1
				col = Get VertexData Diffuse(v)
				r = RGBR(col)
				g = RGBG(col)
				b = RGBB(col)
				Set Cursor 0, 0
				Print "Writing Vertex " + Str$(v) + " of " + Str$(vcount) + " RGB: " + Str$(r) + "," + Str$(g) + "," + Str$(b)
				If v Mod 5 = 0 Then Sync
				Write String 1, Tab$() + Tab$() + "<V ID='" + Str$(v) + "' RGB='" + Str$(r) + "," + Str$(g) + "," + Str$(b) + "' />"
			Next v
			Unlock VertexData
			Write String 1, Tab$() + "</Limb>"
			Exit
		Endif
	Next l
Next i

Write String 1, "</Results>"
Close File 1

Move Camera Up 30
Global v3Track : v3Track = New Vector3()

Do

	Set Cursor 0, 0
	BasicCameraMovement( c, 1.5, 2, 1, v3Track )
	Sync

Loop
//==================================================
Function BasicCameraMovement( c, fSpeed#, fRotateSpeed#, fMouseInfluence#, v3Track )
	If c < 0 Then ExitFunction
	If Camera Exist(c) = 0 Then ExitFunction
	If fMouseInfluence# <> 0

If v3Track > 0 And Vector Exist(v3Track)
			//If BypassMouseZoom) = 0 Then Move Camera c, fMouseInfluence# * Clamp(MouseMoveZ(),-10,10) * fSpeed#
			Move Camera Left c, Clamp(MouseMoveX(),-10,10) * fSpeed# * fMouseInfluence#
			Position Camera CPX, CPY + Clamp(MouseMoveY(),-10,10) * fSpeed# * fMouseInfluence#, CPZ
		Else
			If ControlKey() + ShiftKey() = 0
				YRotate Camera c, ( CAY + Clamp(MouseMoveX(),-10,10) *  fRotateSpeed# * fMouseInfluence#)
				XRotate Camera c, (CAX +  Clamp(MouseMoveY(),-10,10) * fRotateSpeed# * fMouseInfluence#)
			EndIf
			Move Camera c, Clamp(MouseMoveY(),-10,10) * fSpeed# * fMouseInfluence#
		Endif

	Endif

	Move Camera c, ( KeyState(KEY_W) - KeyState(KEY_S) ) * (fSpeed# + ((ControlKey() * fSpeed# * 9)) - ((ShiftKey() * fSpeed# * 0.75)) )
	If Vector Exist(v3Track)
		Move Camera Left c, KeyState(KEY_D) - KeyState(KEY_A) * fSpeed#
		Move Camera Up c, KeyState(KEY_E) - KeyState(KEY_Q) * fSpeed#
		Point Camera At Vector3 c, v3Track
	Else
		If fMouseInfluence# <> 0 And MouseClicked && 2
			YRotate Camera c, CAY -((KeyState(KEY_A) * fRotateSpeed# ) +  -KeyState(KEY_D) * fRotateSpeed#)
			XRotate Camera c, CAX -( (KeyState(KEY_E) * fRotateSpeed#) +  -KeyState(KEY_Q) * fRotateSpeed#	)
			`Print "Rotate mode"
		Else
			Move Camera Right c, (KeyState(KEY_D) * fSpeed# )  - (KeyState(KEY_A) * fSpeed#)
			XRotate Camera c, CAX -( (KeyState(KEY_E) * fRotateSpeed#) +  -KeyState(KEY_Q) * fRotateSpeed#	)
			`Print "Strafe mode"
		Endif

	Endif
Endfunction

#CONSTANT CPOS Camera Position X(), Camera Position Y(), Camera Position Z()
#CONSTANT CANG Camera Angle X(), Camera Angle Y(), Camera Angle Z()

#CONSTANT RCAM Rotate Camera
#CONSTANT PCAM Position Camera
#CONSTANT XRCAM XRotate Camera
#CONSTANT YRCAM YRotate Camera
#CONSTANT ZRCAM ZRotate Camera

#CONSTANT TCAML Turn Camera Left
#CONSTANT TCAMR Turn Camera Right

#CONSTANT MCAM Move Camera
#CONSTANT MCAML Move Camera Left
#CONSTANT MCAMR Move Camera Right
#CONSTANT MCAMU Move Camera Up
#CONSTANT MCAMD Move Camera Down
#CONSTANT CPX Camera Position X(c)
#CONSTANT CPY Camera Position Y(c)
#CONSTANT CPZ Camera Position Z(c)
#CONSTANT CAX Camera Angle X()
#CONSTANT CAY Camera Angle Y()
#CONSTANT CAZ Camera Angle Z()
#CONSTANT CANGX Camera Angle X(c)
#CONSTANT CANGY Camera Angle Y(c)
#CONSTANT CANGZ Camera Angle Z(c)

#CONSTANT CAM_POS_STRING Str$(Camera Position X()) + ", " + Str$(Camera Position Y()) + ", " +  Str$(Camera Position Z())
#CONSTANT CAM_INT_POS_STRING Str$(Camera Position X(),0) + ", " + Str$(Camera Position Y(),0) + ", " +  Str$(Camera Position Z(),0)

#CONSTANT SHIFT_KEY_FLAG 1
#CONSTANT CTRL_KEY_FLAG 2
#CONSTANT ALT_KEY_FLAG 4
//======================================================================
` Key codes
#constant    Key_0              11
#constant    Key_1               2
#constant    Key_2               3
#constant    Key_3               4
#constant    Key_4               5
#constant    Key_5               6
#constant    Key_6               7
#constant    Key_7               8
#constant    Key_8               9
#constant    Key_9              10
#constant    Key_A              30
#constant    Key_ABNT_C1       115
#constant    Key_ABNT_C2       126
#constant    Key_ADD            78
#constant    Key_APOSTROPHE     40
#constant    Key_APPS          221
#constant    Key_AT            145
#constant    Key_AX            150
#constant    Key_B              48
#constant    Key_BACK           14
#constant    Key_BACKSLASH      43
#constant    Key_BACKSPACE      14
#constant    Key_C              46
#constant    Key_CALCULATOR    161
#constant    Key_CAPITAL        58
#constant    Key_CAPSLOCK       58
#constant    Key_CIRCUMFLEX    144
#constant    Key_COLON         146
#constant    Key_COMMA          51
#constant    Key_CONVERT       121
#constant    Key_D              32
#constant    Key_DECIMAL        83
#constant    Key_DELETE        211
#constant    Key_DIVIDE        181
#constant    Key_DOWN          208
#constant    Key_DOWNARROW     208
#constant    Key_E              18
#constant    Key_END           207
#constant    Key_ENTER         28
#constant    Key_EQUALS         13
#constant    Key_ESCAPE          1
#constant    Key_F              33
#constant    Key_F1             59
#constant    Key_F2             60
#constant    Key_F3             61
#constant    Key_F4             62
#constant    Key_F5             63
#constant    Key_F6             64
#constant    Key_F7             65
#constant    Key_F8             66
#constant    Key_F9             67
#constant    Key_F10            68
#constant    Key_F11            87
#constant    Key_F12            88
#constant    Key_F13           100
#constant    Key_F14           101
#constant    Key_F15           102
#constant    Key_G              34
#constant    Key_GRAVE          41
#constant    Key_H              35
#constant    Key_HOME          199
#constant    Key_I              23
#constant    Key_INSERT        210
#constant    Key_J              36
#constant    Key_K              37
#constant    Key_KANA          112
#constant    Key_KANJI         148
#constant    Key_L              38
#constant    Key_LALT           56
#constant    Key_LBRACKET       26
#constant    Key_LCONTROL       29
#constant    Key_LEFT          203
#constant    Key_LEFTARROW     203
#constant    Key_LMENU          56
#constant    Key_LSHIFT         42
#constant    Key_LWIN          219
#constant    Key_M              50
#constant    Key_MAIL          236
#constant    Key_MEDIASELECT   237
#constant    Key_MEDIASTOP     164
#constant    Key_MINUS          12
#constant    Key_MULTIPLY       55
#constant    Key_MUTE          160
#constant    Key_MYCOMPUTER    235
#constant    Key_N              49
#constant    Key_NEXT          209
#constant    Key_NEXTTRACK     153
#constant    Key_NOCONVERT     123
#constant    Key_NUMLOCK        69
#constant    Key_NUMPAD0        82
#constant    Key_NUMPAD1        79
#constant    Key_NUMPAD2        80
#constant    Key_NUMPAD3        81
#constant    Key_NUMPAD4        75
#constant    Key_NUMPAD5        76
#constant    Key_NUMPAD6        77
#constant    Key_NUMPAD7        71
#constant    Key_NUMPAD8        72
#constant    Key_NUMPAD9        73
#constant    Key_NUMPADCOMMA   179
#constant    Key_NUMPADENTER   156
#constant    Key_NUMPADEQUALS  141
#constant    Key_NUMPADMINUS    74
#constant    Key_NUMPADPERIOD   83
#constant    Key_NUMPADPLUS     78
#constant    Key_NUMPADSLASH   181
#constant    Key_NUMPADSTAR     55
#constant    Key_O              24
#constant    Key_OEM_102        86
#constant    Key_P              25
#constant    Key_PAUSE         197
#constant    Key_PERIOD         52
#constant    Key_PGDN          209
#constant    Key_PGUP          201
#constant    Key_PLAYPAUSE     162
#constant    Key_POWER         222
#constant    Key_PREVTRACK     144
#constant    Key_PRIOR         201
#constant    Key_Q              16
#constant    Key_R              19
#constant    Key_RALT          184
#constant    Key_RBRACKET       27
#constant    Key_RCONTROL      157
#constant    Key_RETURN         28
#constant    Key_RIGHT         205
#constant    Key_RIGHTARROW    205
#constant    Key_RMENU         184
#constant    Key_RSHIFT         54
#constant    Key_RWIN          220
#constant    Key_S              31
#constant    Key_SCROLL         70
#constant    Key_SEMICOLON      39
#constant    Key_SLASH          53
#constant    Key_SLEEP         223
#constant    Key_SPACE          57
#constant    Key_SPACEBAR       57
#constant    Key_STOP          149
#constant    Key_SUBTRACT       74
#constant    Key_SYSRQ         183
#constant    Key_T              20
#constant    Key_TAB            15
#constant    Key_U              22
#constant    Key_UNDERLINE     147
#constant    Key_UNLABELED     151
#constant    Key_UP            200
#constant    Key_UPARROW       200
#constant    Key_V              47
#constant    Key_VOLUMEDOWN    174
#constant    Key_VOLUMEUP      176
#constant    Key_W              17
#constant    Key_WAKE          227
#constant    Key_WEBBACK       234
#constant    Key_WEBFAVORITES  230
#constant    Key_WEBFORWARD    233
#constant    Key_WEBHOME       178
#constant    Key_WEBREFRESH    231
#constant    Key_WEBSEARCH     229
#constant    Key_WEBSTOP       232
#constant    Key_X              45
#constant    Key_Y              21
#constant    Key_YEN           125
#constant    Key_Z              44

+ Code Snippet

`VertexColorData
`VertexColorData.dba
`======================

` Generating Data affects vertex diffuse on render?

DoNotGenerateData = 1


` Attempt to rewrite diffuse colours?

RewriteVertexData = 0


` Prepare scene

Color Backdrop 0x909090
Sync Rate 80
Sync On


` Open results file for writing

If File Exist(Dir EXE() + "\Results.xml")
	Delete File "Results.xml"
Endif

Open To Write 1, 	Dir EXE() + "\Results.xml"
Write String 1, "<Results>"

` Load terrains with vertex colors and output to file

Dim VertexData(2,400)

For i = 1 to 2
	Load Object "BasicTerrain.x", i
	Move Object Right i, (i+i-3) * Object Size(i) * 0.7
	Load Effect "VertexColorTangent.fx", i, 0, DoNotGenerateData

	If RewriteVertexData
		For l = 0 to Get Limb Count(i)
			If Limb Has Mesh(i,l)
				Lock VertexData For Limb i, l, 2
				vcount = Get VertexData Vertex Count()
				For v = 0 to vcount - 1
					VertexData(i,l) = Get VertexData Diffuse(v)
					Set Cursor 0, 0
					Print "Memorizing Vertex " + Str$(v) + " of " + Str$(vcount) + " for rewriting"
					If v Mod 10 = 0 Then Sync
				Next v
				Unlock VertexData
				Exit
			Endif
		Next l
	Endif

	Set Object Effect i, i
	If i = 1
		Set Effect Technique i, "ColorWithData" ` Technique with tangent usage
	Endif

	` Rewrite after generating data
	If RewriteVertexData
		For l = 0 to Get Limb Count(i)
			If Limb Has Mesh(i,l)
				Lock VertexData For Limb i, l, 2
				vcount = Get VertexData Vertex Count()
				For v = 0 to vcount - 1
					Set VertexData Diffuse v, VertexData(i,l)
					Set Cursor 0, 0
					Print "Restoring Vertex " + Str$(v) + " of " + Str$(vcount)
					If v Mod 10 = 0 Then Sync
				Next v
				Unlock VertexData
				Exit
			Endif
		Next l
	Endif

	For l = 0 to Get Limb Count(i)
		If Limb Has Mesh(i,l)
			Write String 1, Tab$() + "<Limb ID='" + Str$(l) + "' Object='" + Str$(i) + "' Name='" + Limb Name$(i,l) + "' >"
			Lock VertexData For Limb i, l, 2
			vcount = Get VertexData Vertex Count()
			For v = 0 to vcount - 1
				col = Get VertexData Diffuse(v)
				r = RGBR(col)
				g = RGBG(col)
				b = RGBB(col)
				Set Cursor 0, 0
				Print "Writing Vertex " + Str$(v) + " of " + Str$(vcount) + " RGB: " + Str$(r) + "," + Str$(g) + "," + Str$(b)
				If v Mod 5 = 0 Then Sync
				Write String 1, Tab$() + Tab$() + "<V ID='" + Str$(v) + "' RGB='" + Str$(r) + "," + Str$(g) + "," + Str$(b) + "' />"
			Next v
			Unlock VertexData
			Write String 1, Tab$() + "</Limb>"
			Exit
		Endif
	Next l
Next i

Write String 1, "</Results>"
Close File 1

Move Camera Up 30
Global v3Track : v3Track = New Vector3()


Do

	Set Cursor 0, 0
	BasicCameraMovement( c, 1.5, 2, 1, v3Track )
	Sync

Loop
//==================================================
Function BasicCameraMovement( c, fSpeed#, fRotateSpeed#, fMouseInfluence#, v3Track )
	If c < 0 Then ExitFunction
	If Camera Exist(c) = 0 Then ExitFunction
	If fMouseInfluence# <> 0

		If v3Track > 0 And Vector Exist(v3Track)
			//If BypassMouseZoom) = 0 Then Move Camera c, fMouseInfluence# * Clamp(MouseMoveZ(),-10,10) * fSpeed#
			Move Camera Left c, Clamp(MouseMoveX(),-10,10) * fSpeed# * fMouseInfluence#
			Position Camera CPX, CPY + Clamp(MouseMoveY(),-10,10) * fSpeed# * fMouseInfluence#, CPZ
		Else
			If ControlKey() + ShiftKey() = 0
				YRotate Camera c, ( CAY + Clamp(MouseMoveX(),-10,10) *  fRotateSpeed# * fMouseInfluence#)
				XRotate Camera c, (CAX +  Clamp(MouseMoveY(),-10,10) * fRotateSpeed# * fMouseInfluence#)
			EndIf
			Move Camera c, Clamp(MouseMoveY(),-10,10) * fSpeed# * fMouseInfluence#
		Endif

	Endif

	Move Camera c, ( KeyState(KEY_W) - KeyState(KEY_S) ) * (fSpeed# + ((ControlKey() * fSpeed# * 9)) - ((ShiftKey() * fSpeed# * 0.75)) )
	If Vector Exist(v3Track)
		Move Camera Left c, KeyState(KEY_D) - KeyState(KEY_A) * fSpeed#
		Move Camera Up c, KeyState(KEY_E) - KeyState(KEY_Q) * fSpeed#
		Point Camera At Vector3 c, v3Track
	Else
		If fMouseInfluence# <> 0 And MouseClicked && 2
			YRotate Camera c, CAY -((KeyState(KEY_A) * fRotateSpeed# ) +  -KeyState(KEY_D) * fRotateSpeed#)
			XRotate Camera c, CAX -( (KeyState(KEY_E) * fRotateSpeed#) +  -KeyState(KEY_Q) * fRotateSpeed#	)
			`Print "Rotate mode"
		Else
			Move Camera Right c, (KeyState(KEY_D) * fSpeed# )  - (KeyState(KEY_A) * fSpeed#)
			XRotate Camera c, CAX -( (KeyState(KEY_E) * fRotateSpeed#) +  -KeyState(KEY_Q) * fRotateSpeed#	)
			`Print "Strafe mode"
		Endif

	Endif
Endfunction


#CONSTANT CPOS Camera Position X(), Camera Position Y(), Camera Position Z()
#CONSTANT CANG Camera Angle X(), Camera Angle Y(), Camera Angle Z()

#CONSTANT RCAM Rotate Camera
#CONSTANT PCAM Position Camera
#CONSTANT XRCAM XRotate Camera
#CONSTANT YRCAM YRotate Camera
#CONSTANT ZRCAM ZRotate Camera



#CONSTANT TCAML Turn Camera Left
#CONSTANT TCAMR Turn Camera Right

#CONSTANT MCAM Move Camera
#CONSTANT MCAML Move Camera Left
#CONSTANT MCAMR Move Camera Right
#CONSTANT MCAMU Move Camera Up
#CONSTANT MCAMD Move Camera Down
#CONSTANT CPX Camera Position X(c)
#CONSTANT CPY Camera Position Y(c)
#CONSTANT CPZ Camera Position Z(c)
#CONSTANT CAX Camera Angle X()
#CONSTANT CAY Camera Angle Y()
#CONSTANT CAZ Camera Angle Z()
#CONSTANT CANGX Camera Angle X(c)
#CONSTANT CANGY Camera Angle Y(c)
#CONSTANT CANGZ Camera Angle Z(c)

#CONSTANT CAM_POS_STRING Str$(Camera Position X()) + ", " + Str$(Camera Position Y()) + ", " +  Str$(Camera Position Z())
#CONSTANT CAM_INT_POS_STRING Str$(Camera Position X(),0) + ", " + Str$(Camera Position Y(),0) + ", " +  Str$(Camera Position Z(),0)

#CONSTANT SHIFT_KEY_FLAG 1
#CONSTANT CTRL_KEY_FLAG 2
#CONSTANT ALT_KEY_FLAG 4
//======================================================================
` Key codes
#constant    Key_0              11
#constant    Key_1               2
#constant    Key_2               3
#constant    Key_3               4
#constant    Key_4               5
#constant    Key_5               6
#constant    Key_6               7
#constant    Key_7               8
#constant    Key_8               9
#constant    Key_9              10
#constant    Key_A              30
#constant    Key_ABNT_C1       115
#constant    Key_ABNT_C2       126
#constant    Key_ADD            78
#constant    Key_APOSTROPHE     40
#constant    Key_APPS          221
#constant    Key_AT            145
#constant    Key_AX            150
#constant    Key_B              48
#constant    Key_BACK           14
#constant    Key_BACKSLASH      43
#constant    Key_BACKSPACE      14
#constant    Key_C              46
#constant    Key_CALCULATOR    161
#constant    Key_CAPITAL        58
#constant    Key_CAPSLOCK       58
#constant    Key_CIRCUMFLEX    144
#constant    Key_COLON         146
#constant    Key_COMMA          51
#constant    Key_CONVERT       121
#constant    Key_D              32
#constant    Key_DECIMAL        83
#constant    Key_DELETE        211
#constant    Key_DIVIDE        181
#constant    Key_DOWN          208
#constant    Key_DOWNARROW     208
#constant    Key_E              18
#constant    Key_END           207
#constant    Key_ENTER         28
#constant    Key_EQUALS         13
#constant    Key_ESCAPE          1
#constant    Key_F              33
#constant    Key_F1             59
#constant    Key_F2             60
#constant    Key_F3             61
#constant    Key_F4             62
#constant    Key_F5             63
#constant    Key_F6             64
#constant    Key_F7             65
#constant    Key_F8             66
#constant    Key_F9             67
#constant    Key_F10            68
#constant    Key_F11            87
#constant    Key_F12            88
#constant    Key_F13           100
#constant    Key_F14           101
#constant    Key_F15           102
#constant    Key_G              34
#constant    Key_GRAVE          41
#constant    Key_H              35
#constant    Key_HOME          199
#constant    Key_I              23
#constant    Key_INSERT        210
#constant    Key_J              36
#constant    Key_K              37
#constant    Key_KANA          112
#constant    Key_KANJI         148
#constant    Key_L              38
#constant    Key_LALT           56
#constant    Key_LBRACKET       26
#constant    Key_LCONTROL       29
#constant    Key_LEFT          203
#constant    Key_LEFTARROW     203
#constant    Key_LMENU          56
#constant    Key_LSHIFT         42
#constant    Key_LWIN          219
#constant    Key_M              50
#constant    Key_MAIL          236
#constant    Key_MEDIASELECT   237
#constant    Key_MEDIASTOP     164
#constant    Key_MINUS          12
#constant    Key_MULTIPLY       55
#constant    Key_MUTE          160
#constant    Key_MYCOMPUTER    235
#constant    Key_N              49
#constant    Key_NEXT          209
#constant    Key_NEXTTRACK     153
#constant    Key_NOCONVERT     123
#constant    Key_NUMLOCK        69
#constant    Key_NUMPAD0        82
#constant    Key_NUMPAD1        79
#constant    Key_NUMPAD2        80
#constant    Key_NUMPAD3        81
#constant    Key_NUMPAD4        75
#constant    Key_NUMPAD5        76
#constant    Key_NUMPAD6        77
#constant    Key_NUMPAD7        71
#constant    Key_NUMPAD8        72
#constant    Key_NUMPAD9        73
#constant    Key_NUMPADCOMMA   179
#constant    Key_NUMPADENTER   156
#constant    Key_NUMPADEQUALS  141
#constant    Key_NUMPADMINUS    74
#constant    Key_NUMPADPERIOD   83
#constant    Key_NUMPADPLUS     78
#constant    Key_NUMPADSLASH   181
#constant    Key_NUMPADSTAR     55
#constant    Key_O              24
#constant    Key_OEM_102        86
#constant    Key_P              25
#constant    Key_PAUSE         197
#constant    Key_PERIOD         52
#constant    Key_PGDN          209
#constant    Key_PGUP          201
#constant    Key_PLAYPAUSE     162
#constant    Key_POWER         222
#constant    Key_PREVTRACK     144
#constant    Key_PRIOR         201
#constant    Key_Q              16
#constant    Key_R              19
#constant    Key_RALT          184
#constant    Key_RBRACKET       27
#constant    Key_RCONTROL      157
#constant    Key_RETURN         28
#constant    Key_RIGHT         205
#constant    Key_RIGHTARROW    205
#constant    Key_RMENU         184
#constant    Key_RSHIFT         54
#constant    Key_RWIN          220
#constant    Key_S              31
#constant    Key_SCROLL         70
#constant    Key_SEMICOLON      39
#constant    Key_SLASH          53
#constant    Key_SLEEP         223
#constant    Key_SPACE          57
#constant    Key_SPACEBAR       57
#constant    Key_STOP          149
#constant    Key_SUBTRACT       74
#constant    Key_SYSRQ         183
#constant    Key_T              20
#constant    Key_TAB            15
#constant    Key_U              22
#constant    Key_UNDERLINE     147
#constant    Key_UNLABELED     151
#constant    Key_UP            200
#constant    Key_UPARROW       200
#constant    Key_V              47
#constant    Key_VOLUMEDOWN    174
#constant    Key_VOLUMEUP      176
#constant    Key_W              17
#constant    Key_WAKE          227
#constant    Key_WEBBACK       234
#constant    Key_WEBFAVORITES  230
#constant    Key_WEBFORWARD    233
#constant    Key_WEBHOME       178
#constant    Key_WEBREFRESH    231
#constant    Key_WEBSEARCH     229
#constant    Key_WEBSTOP       232
#constant    Key_X              45
#constant    Key_Y              21
#constant    Key_YEN           125
#constant    Key_Z              44

Back to top

Profile PM Email Website

Green Gandalf

VIP Member

19

Years of Service

User Offline

Joined: 3rd Jan 2005

Playing: Malevolence:Sword of Ahkranox, Skyrim, Civ6.

Posted: 24th Aug 2018 14:51

Link

This issue has been a long-standing bone of contention between me and Lee. Lee doesn't seem to see this is as a bug - I have no idea why despite his explanations

. In the end I gave up trying to convince him. The only solution Lee could suggest, which leads to other problems, seems to be to use the DoNotGenerateExtraData flag when loading the shader. I believe this has the unfortunate side effect of requiring you to calculate tangents and binormals in the shader if you need them (except see comments about UV stages below).

I'm not sure whether you can cheat and calculate them in advance and store them in a set of UV s which you can reserve for that specific purpose - I vaguely recall someone pointing out that extra sets of UV data get messed up when you use the DoNotGenerateExtraData flag (which I think is what you're saying). My preferred solution to all this is to avoid using the vertex diffuse altogether and store any required colours in extra sets of UV data and use the default LOAD EFFECT command. I believe that method works - and you have up to 14 slots available for storing floats that way, i.e. UV stages 1 to 7. So if your application doesn't require UV stages 5 and 6, for example, then you could use UV(5) for the RG components and UV(6) for the BA components. A bit messy, but doable.

I don't know the underlying reason for these issues - but I suspect it has something to do with the way DBPro defines it's vertex formats internally and the methods it uses to assign data to them. It might be worth asking Rudolpho to take a look at the code as he might be able to fix it for us.

I could have a look at your project folder if you like - but you'd need to attach it first

.

Back to top

Profile PM Email

Chris Tate

DBPro Master

15

Years of Service

User Offline

Joined: 29th Aug 2008

Location: London, England

Posted: 24th Aug 2018 14:59 Edited at: 24th Aug 2018 15:00

Link

Quote: "I'm not sure whether you can cheat and calculate them in advance and store them in a set of UV s which you can reserve for that specific purpose "

That sounds like a good idea; I think I'll have to make use of the unused UV slots.

Quote: "I could have a look at your project folder if you like - but you'd need to attach it first"

Lol, browsed the file but did not click upload.

Many thanks

Attachments

Login to view attachments

Back to top

Profile PM Email Website

Green Gandalf

VIP Member

19

Years of Service

User Offline

Joined: 3rd Jan 2005

Playing: Malevolence:Sword of Ahkranox, Skyrim, Civ6.

Posted: 24th Aug 2018 15:42

Link

Thanks. Got your code now. Will report back when I've got something useful to suggest.

Back to top

Profile PM Email

Green Gandalf

VIP Member

19

Years of Service

User Offline

Joined: 3rd Jan 2005

Playing: Malevolence:Sword of Ahkranox, Skyrim, Civ6.

Posted: 24th Aug 2018 16:44 Edited at: 24th Aug 2018 20:07

Link

Chris, I'm not sure if this is the only problem with your code, but does the following slightly amended version work better?

The important lines are the ones marked with

// amended by GG -- ****** --

i.e. I'm fairly sure you intended to store data for every vertex separately.

// added by GG (out of habit) plus change to Project Screen properties
set display mode desktop width(), desktop height(), 32, 1
sync on
sync rate 60
sync
//

`VertexColorData
`VertexColorData.dba
`======================

` Generating Data affects vertex diffuse on render?

DoNotGenerateData = 1

` Attempt to rewrite diffuse colours?

RewriteVertexData = 1

` Prepare scene

Color Backdrop 0x909090
Sync Rate 80
Sync On

` Open results file for writing

If File Exist(Dir EXE() + "\Results.xml")
	Delete File "Results.xml"
Endif

Open To Write 1, 	Dir EXE() + "\Results.xml"
Write String 1, "<Results>"

` Load terrains with vertex colors and output to file

Dim VertexData(2,5,400) as dword // amended by GG  -- ****** --

For i = 1 to 2
	Load Object "BasicTerrain.x", i
	Move Object Right i, (i+i-3) * Object Size(i) * 0.7
	Load Effect "VertexColorTangent.fx", i, 0, DoNotGenerateData

	If RewriteVertexData
	  numLimbs = get limb count(i)
		For l = 0 to Get Limb Count(i)
			If Limb Has Mesh(i,l)
				Lock VertexData For Limb i, l, 2
				vcount = Get VertexData Vertex Count()
				For v = 0 to vcount - 1
					VertexData(i,l,v) = Get VertexData Diffuse(v) // amended by GG  -- ****** --
					Set Cursor 0, 0
					Print "Memorizing Vertex " + Str$(v) + " of " + Str$(vcount) + " for rewriting"
`					If v Mod 10 = 0 Then Sync
				Next v
				Unlock VertexData
				Exit
			Endif
		Next l
	Endif

	// added by GG to aid testing
	repeat
	  text 20, 20, "Finished storing vertex data for "+str$(vcount)+" vertices"
   text 20,50+20*l, " recorded data for "+str$(numlimbs)+" limbs"
	  sync
	until spacekey()
	//

	Set Object Effect i, i
	If i = 1
	 	Set Effect Technique i, "ColorWithData" ` Technique with tangent usage
	Endif

	` Rewrite after generating data
	If RewriteVertexData
		For l = 0 to Get Limb Count(i)
			If Limb Has Mesh(i,l)
				Lock VertexData For Limb i, l, 2
				vcount = Get VertexData Vertex Count()
				For v = 0 to vcount - 1
					Set VertexData Diffuse v, VertexData(i,l,v) // amended by GG  -- ****** --
					Set Cursor 0, 0
					Print "Restoring Vertex " + Str$(v) + " of " + Str$(vcount)
`					If v Mod 10 = 0 Then Sync
				Next v
				Unlock VertexData
				Exit
			Endif
		Next l
	Endif

	For l = 0 to Get Limb Count(i)
		If Limb Has Mesh(i,l)
			Write String 1, Tab$() + "<Limb ID='" + Str$(l) + "' Object='" + Str$(i) + "' Name='" + Limb Name$(i,l) + "' >"
			Lock VertexData For Limb i, l, 2
			vcount = Get VertexData Vertex Count()
			For v = 0 to vcount - 1
				col = Get VertexData Diffuse(v)
				r = RGBR(col)
				g = RGBG(col)
				b = RGBB(col)
				Set Cursor 0, 0
				Print "Writing Vertex " + Str$(v) + " of " + Str$(vcount) + " RGB: " + Str$(r) + "," + Str$(g) + "," + Str$(b)
				If v Mod 5 = 0 Then Sync : wait 100
				Write String 1, Tab$() + Tab$() + "<V ID='" + Str$(v) + "' RGB='" + Str$(r) + "," + Str$(g) + "," + Str$(b) + "' />"
			Next v
			Unlock VertexData
			Write String 1, Tab$() + "</Limb>"
			Exit
		Endif
	Next l
Next i
