Hello community,

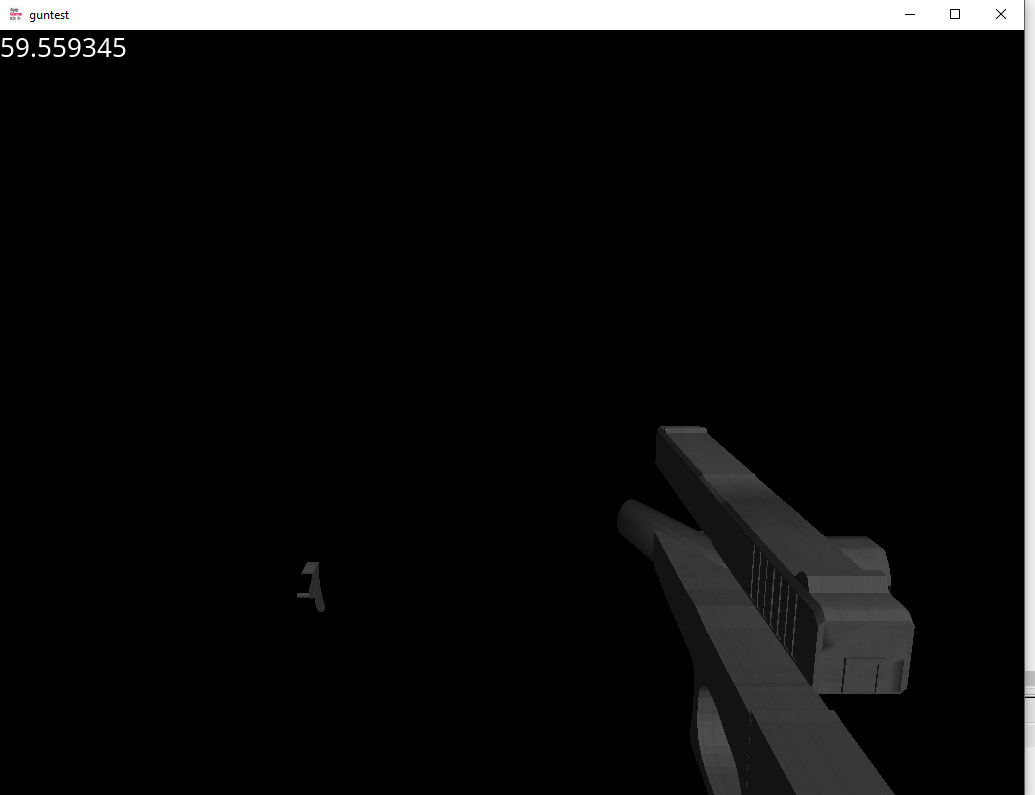

Recently I started modeling in 3DS Max and I imported one of my models. I added a simple animation to the object but when I load it into AppGameKit it looks exploded. Do I must take care of some check marks at the .FBX export window?

Thank you!
www.alexmatei.com

Attachments

Login to view attachments
Back to top
Profile PM Email Website
fubarpk
Retired Moderator
19
Years of Service
User Offline
Joined: 11th Jan 2005
Playing: AGK is my friend
Posted: 10th Dec 2018 14:23
Link
Have you tried saving as a 3ds object
fubar
Back to top
Profile PM Email Website
MateiSoft
11
Years of Service
User Offline
Joined: 22nd Oct 2012
Location:
Posted: 10th Dec 2018 14:36
Link
I tried now, but I can see just the bones animating, not the mesh.
www.alexmatei.com
Back to top
Profile PM Email Website
MateiSoft
11
Years of Service
User Offline
Joined: 22nd Oct 2012
Location:
Posted: 10th Dec 2018 15:11
Link
The problem has been solved by select Autodesk Media and Entertainment as "current preset". Don't know what check mark did the whole model explode... hopefully in the future I'll not have such problems and neither do others.

PS: Current Presets is located on the export window.
www.alexmatei.com
Back to top
Profile PM Email Website
MateiSoft
11
Years of Service
User Offline
Joined: 22nd Oct 2012
Location:
Posted: 10th Dec 2018 16:11
Link
Nope, the problem was not solved by that "solution" I added another bone the mix and it ruined the object as before... Sorry
www.alexmatei.com
Back to top
Profile PM Email Website
puzzler2018
User Banned
Posted: 10th Dec 2018 20:39
Link
Maybe its 3DSMax in general?

Could you create a smaller object with less detail like an animated cube or something to see if it does the same

Im not good with any modelling software - i prefer OBJ though but least giving you something to try to elimate issues
Back to top
Profile
puzzler2018
User Banned
Posted: 10th Dec 2018 21:03
Link
Are you perhaps using

LoadObjectWithChildren

command, which loads i beleive the bones structure too.

Im way not advanced enough here to give you an 100% solution
Back to top
Profile
puzzler2018
User Banned
Posted: 10th Dec 2018 21:09
Link
Have you perhaps transleted all the bones to your object within 3DS Max to X-0, Y-0, Z-0 so the are all translated to the main object

Back to top
Profile
MateiSoft
11
Years of Service
User Offline
Joined: 22nd Oct 2012
Location:
Posted: 10th Dec 2018 23:09
Link
I was using bones and skinning with the model itself in 3DS Max, yes. I loaded the object using the command "LoadObjectWithChildren", since it is the only command that accepts animations. Loading an .OBJ with that command, to support animation, is not detected as an object with animation, sadly. I will try again with rigging animation. Temporary I will use a non rigging solution (animating the object by dragging the mesh itself, not the bones). You maybe have a point regarding the translation of the bones, sure enough.
www.alexmatei.com
Back to top
Profile PM Email Website
Golelorn
7
Years of Service
User Offline
Joined: 20th Nov 2016
Location:
Posted: 11th Dec 2018 03:24
Link
I have not fooled with animations in a bit, but I remember there are lots of pitfalls.

Are your bones scaled? Scaled bones will not export properly. Be sure to Apply all scales and rotations before exporting. This is usually where I go wrong. I forget to apply rotation and scale on the bones and model.

Do you need to recalculate the bone roll? This has also screwed me over more than once.
Back to top
Profile PM
MateiSoft
11
Years of Service
User Offline
Joined: 22nd Oct 2012
Location:
Posted: 12th Dec 2018 11:09
Link
Good advices regarding the rotation and the scale. But no, I do not scale or rotate the bones. Just moving them.
www.alexmatei.com
Back to top
Profile PM Email Website
puzzler2018
User Banned
Posted: 12th Dec 2018 12:00
Link
That's cool

Does that apply to the translate / position too??




Back to top
Profile
puzzler2018
User Banned
Posted: 12th Dec 2018 20:29
Link
Just an idea

Could you possibly load the model is some other well known modelling tools - like Blender and such like to see if its the same?
Back to top
Profile
MateiSoft
11
Years of Service
User Offline
Joined: 22nd Oct 2012
Location:
Posted: 12th Dec 2018 21:59
Link
Well, only if Blender knows how to import .fbx, or .dae or some other formats. But I don't know if this process is 100% compatible with the bones and other structures from 3DS Max.
www.alexmatei.com
Back to top
Profile PM Email Website
puzzler2018
User Banned
Posted: 12th Dec 2018 22:01 Edited at: 12th Dec 2018 22:03
Link
ok - so it looks good in 3dsmax?

did you check the translations "Position data" on the bones? - they all need to be 0,0,0 and relative to the man object
Back to top
Profile
puzzler2018
User Banned
Posted: 12th Dec 2018 22:10
Link
this is pretty much similar to what

FixObjectToObject

command does in AppGameKit when want to join things together, every object fixed must be 0,0,0 relative

Back to top
Profile
MateiSoft
11
Years of Service
User Offline
Joined: 22nd Oct 2012
Location:
Posted: 12th Dec 2018 22:12
Link
Didn't had the chance to test it out with the bones. I have one last problem till I fully understand how it works and then I'll go to the bones section and I will write the problems down, here on this topic or make a new one for those who will encounter problems like mine.

The problem that I got is: When I export the model without having any animations, I can easily apply the textures (in one as a result of the UVW). However, when I add the animations in 3DS Max, I can't texture the object with the same method. I must retrieve the "children" and then apply the textures individually. I want to manage to texture the object the same way when it doesn't have any animations.
The model has multiple textures!
www.alexmatei.com
Back to top
Profile PM Email Website
MateiSoft
11
Years of Service
User Offline
Joined: 22nd Oct 2012
Location:
Posted: 12th Dec 2018 22:12
Link
Now that's a must to try! (What you wrote about the transformation) I will try it after solving the problem with the textures
www.alexmatei.com
Back to top
Profile PM Email Website
puzzler2018
User Banned
Posted: 12th Dec 2018 22:14
Link
Ill think about that one and like to thinkothers maybe able to assist with this too
Back to top
Profile
puzzler2018
User Banned
Posted: 12th Dec 2018 22:16
Link
tranforms - translations - its all the same meaning to me lol
Back to top
Profile
puzzler2018
User Banned
Posted: 12th Dec 2018 22:23
Link
Im not 100% on fbx models, but in OBJ you can individually materialize each bone. In OBJ its called a Group.

Can you convert the model to OBJ at all with textures to see what the OBJ format looks like
Back to top
Profile
MateiSoft
11
Years of Service
User Offline
Joined: 22nd Oct 2012
Location:
Posted: 12th Dec 2018 22:58
Link
yes. I will try this right now and come back
www.alexmatei.com
Back to top
Profile PM Email Website
MateiSoft
11
Years of Service
User Offline
Joined: 22nd Oct 2012
Location:
Posted: 12th Dec 2018 23:02 Edited at: 12th Dec 2018 23:02
Link

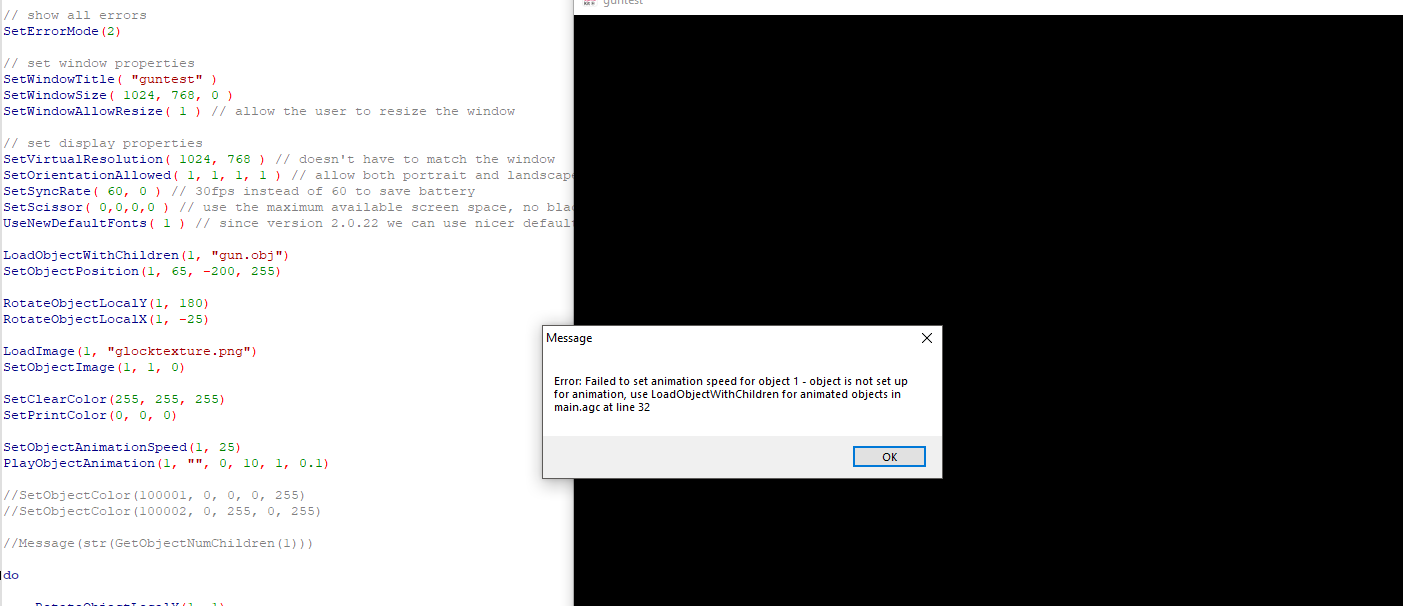

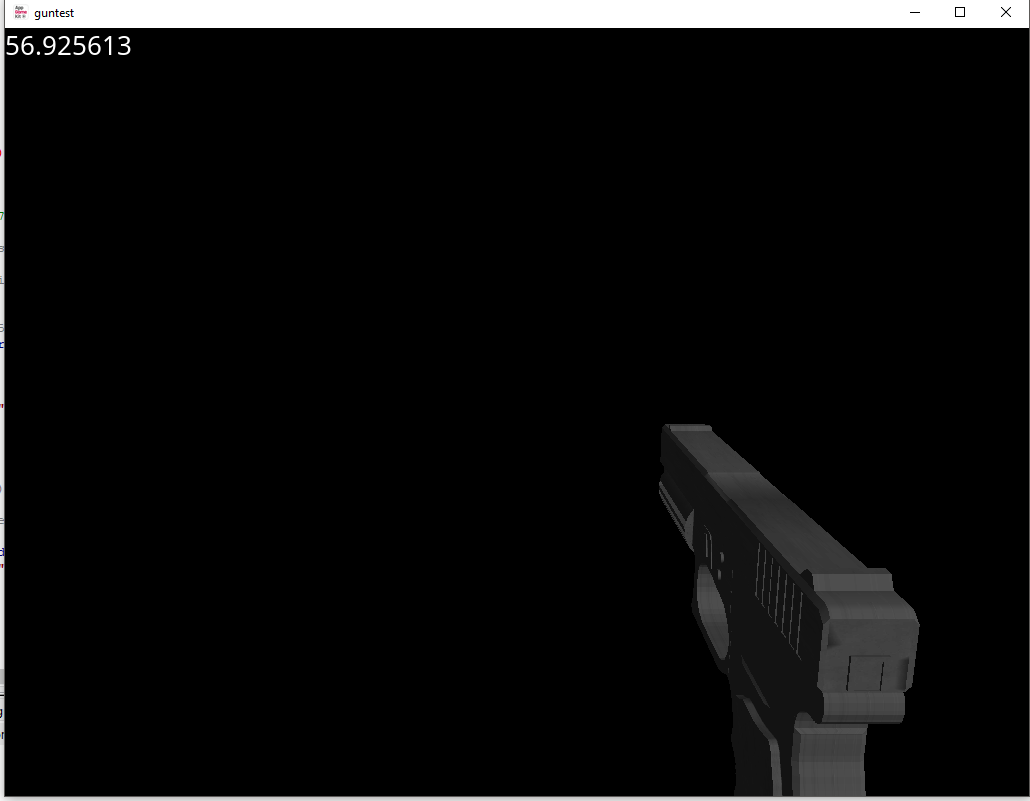

See the attached photo. The animation was done WITHOUT bones. It should've worked as fbx worked.
