Color selection from image palette

Author

Message

Hubert BAYRE

6

Years of Service

User Offline

Joined: 21st Oct 2017

Location: France

Posted: 26th Oct 2019 09:02 Edited at: 26th Oct 2019 09:04

Link

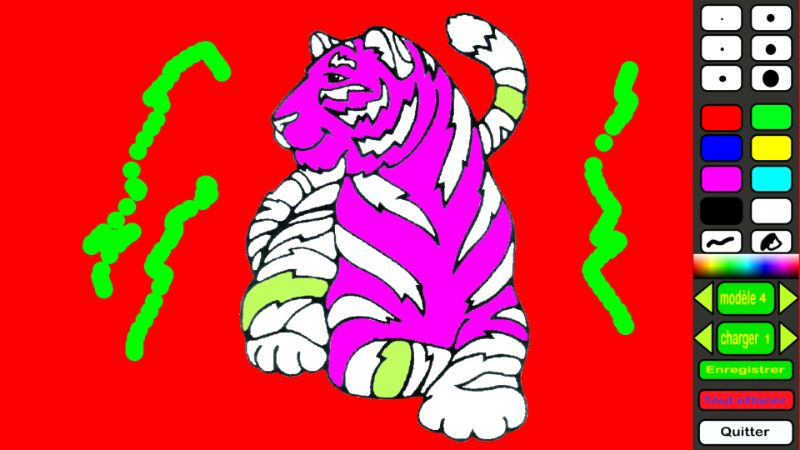

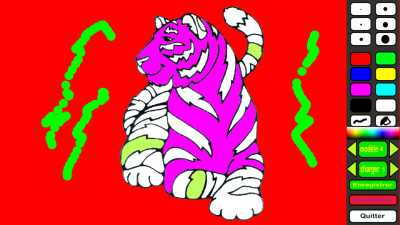

For my draw program part i'm searching a way to propose a more interesting color selection... i've this : (limited colors)

So perhaps i could use this picture and next choose the selected r,g,b colors when user touch on it.

But how to determine the selected color from this palette picture ?

Have you some ideas?

Note this is for use with a tablet.

Thanks for your help.

Note :
Special thanks to Paul Harthen for the FloodFill method : https://forum.thegamecreators.com/thread/213305

Attachments

Login to view attachments

Back to top

Profile PM

fubarpk

Retired Moderator

19

Years of Service

User Offline

Joined: 11th Jan 2005

Playing: AGK is my friend

Posted: 26th Oct 2019 09:17

Link

this may help

+ Code Snippet


Function pickColor(X,Y)

    //color as integer
    rem prepare image grab area
    clearScreen()
    setScissor(X,Y,X+1,Y+1)
    render()

    img = getImage(X,Y,X+1,Y+1)

    rem create memblock

    mem = createMemblockfromImage(img)

    rem get memblock data
    r = getMemblockbyte(mem,12):rem gets red channel data
    g = getMemblockbyte(mem,13):rem gets green channel data
    b = getMemblockbyte(mem,14):rem gets blue channel data


    rem tidy up
    deletememblock(mem)
    deleteimage(img)
    setScissor(0,0,getDeviceWidth(),getDeviceHeight())
    clearScreen()
    color = makeColor(r,g,b)
    //color=0
endfunction color

fubarpk
fubarpk on Itch...………...https://fubarpk.itch.io/
fubarpk on googleplay..https://play.google.com/store/apps/developer?id=fubarpk

Back to top

Profile PM Email Website

fubarpk

Retired Moderator

19

Years of Service

User Offline

Joined: 11th Jan 2005

Playing: AGK is my friend

Posted: 26th Oct 2019 11:16

Link

This post has been marked by the post author as the answer.

if you want the RGB values separate and don't want to use global variables it can be done like this

// show all errors
SetErrorMode(2)

// set window properties
SetWindowTitle( "Pick color" )
SetWindowSize( 1080, 720, 0 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( 1080, 720 ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 60, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts
SetVSync(1)

SetPhysicsDebugOn()

type _Color
	red as integer
	green as integer
	blue as integer
	alpha as integer
endtype

color as _Color
color.red=0
color.green=0
color.blue=0
do
	Print("red "+str(color.red))
	Print("Green "+str(color.green))
	Print("Blue "+str(color.blue))
	pickColor(GetPointerX(),getPointerY(),color)
	sync()
loop

Function pickColor(X as integer,Y as integer, color ref as _Color)

    //color as integer
    rem prepare image grab area
    clearScreen()
    setScissor(X,Y,X+1,Y+1)
    render()

    img = getImage(X,Y,X+1,Y+1)

    rem create memblock

    mem = createMemblockfromImage(img)

    rem get memblock data
    color.red = getMemblockbyte(mem,12):rem gets red channel data
    color.green = getMemblockbyte(mem,13):rem gets green channel data
    color.blue = getMemblockbyte(mem,14):rem gets blue channel data


    rem tidy up
    deletememblock(mem)
    deleteimage(img)
    setScissor(0,0,getDeviceWidth(),getDeviceHeight())
    clearScreen()

endfunction

+ Code Snippet


// show all errors
SetErrorMode(2)

// set window properties
SetWindowTitle( "Pick color" )
SetWindowSize( 1080, 720, 0 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( 1080, 720 ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 60, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts
SetVSync(1)

SetPhysicsDebugOn()

type _Color
	red as integer
	green as integer
	blue as integer
	alpha as integer
endtype

color as _Color
color.red=0
color.green=0
color.blue=0
do
	Print("red "+str(color.red))
	Print("Green "+str(color.green))
	Print("Blue "+str(color.blue))
	pickColor(GetPointerX(),getPointerY(),color)
	sync()
loop


Function pickColor(X as integer,Y as integer, color ref as _Color)

    //color as integer
    rem prepare image grab area
    clearScreen()
    setScissor(X,Y,X+1,Y+1)
    render()

    img = getImage(X,Y,X+1,Y+1)

    rem create memblock

    mem = createMemblockfromImage(img)

    rem get memblock data
    color.red = getMemblockbyte(mem,12):rem gets red channel data
    color.green = getMemblockbyte(mem,13):rem gets green channel data
    color.blue = getMemblockbyte(mem,14):rem gets blue channel data


    rem tidy up
    deletememblock(mem)
    deleteimage(img)
    setScissor(0,0,getDeviceWidth(),getDeviceHeight())
    clearScreen()

endfunction

fubarpk
fubarpk on Itch...………...https://fubarpk.itch.io/
fubarpk on googleplay..https://play.google.com/store/apps/developer?id=fubarpk

Back to top

Profile PM Email Website

Hubert BAYRE

6

Years of Service

User Offline

Joined: 21st Oct 2017

Location: France

Posted: 26th Oct 2019 22:53

Link

Many thanks for the idea !

Back to top

Profile PM

fubarpk

Retired Moderator

19

Years of Service

User Offline

Joined: 11th Jan 2005

Playing: AGK is my friend

Posted: 27th Oct 2019 22:44

Link

your welcome Im curious what your floodfill Algorithm is like as a basic floodfill in its very basic form looks like

Function getPixel(X,Y)

    //color as integer
    rem prepare image grab area
    clearScreen()
    if x+1>=100 or y+1>=20 then exitfunction color
    setScissor(X,Y,X+1,Y+1)
    render()

    img = getImage(X,Y,X+1,Y+1)

    rem create memblock

    mem = createMemblockfromImage(img)

    rem get memblock data
    r = getMemblockbyte(mem,12):rem gets red channel data
    g = getMemblockbyte(mem,13):rem gets green channel data
    b = getMemblockbyte(mem,14):rem gets blue channel data


    rem tidy up
    deletememblock(mem)
    deleteimage(img)
    setScissor(0,0,getDeviceWidth(),getDeviceHeight())
    clearScreen()
    color = makeColor(r,g,b)
    //color=0
endfunction color

//this works but very slowly
function floodFill(x as integer,y as integer,oldcolor,newcolor)
	if getPixel(x,y)=oldcolor
		putpixel(x,y,newcolor)
		floodFill(x+1,y,oldcolor,newcolor)
		floodFill(x,y+1,oldcolor,newcolor)
		floodFill(x-1,y,oldcolor,newcolor)
		floodFill(x,y-1,oldcolor,newcolor)
	endif
endfunction


function putPixel(x,y,newcolor)
	DrawSprite(spr)
endfunction

+ Code Snippet


Function getPixel(X,Y)

    //color as integer
    rem prepare image grab area
    clearScreen()
    if x+1>=100 or y+1>=20 then exitfunction color
    setScissor(X,Y,X+1,Y+1)
    render()

    img = getImage(X,Y,X+1,Y+1)

    rem create memblock

    mem = createMemblockfromImage(img)

    rem get memblock data
    r = getMemblockbyte(mem,12):rem gets red channel data
    g = getMemblockbyte(mem,13):rem gets green channel data
    b = getMemblockbyte(mem,14):rem gets blue channel data


    rem tidy up
    deletememblock(mem)
    deleteimage(img)
    setScissor(0,0,getDeviceWidth(),getDeviceHeight())
    clearScreen()
    color = makeColor(r,g,b)
    //color=0
endfunction color

//this works but very slowly
function floodFill(x as integer,y as integer,oldcolor,newcolor)
	if getPixel(x,y)=oldcolor
		putpixel(x,y,newcolor)
		floodFill(x+1,y,oldcolor,newcolor)
		floodFill(x,y+1,oldcolor,newcolor)
		floodFill(x-1,y,oldcolor,newcolor)
		floodFill(x,y-1,oldcolor,newcolor)
	endif
endfunction


function putPixel(x,y,newcolor)
	DrawSprite(spr)
endfunction

fubarpk
fubarpk on Itch...………...https://fubarpk.itch.io/
fubarpk on googleplay..https://play.google.com/store/apps/developer?id=fubarpk

Back to top

Profile PM Email Website

Hubert BAYRE

6

Years of Service

User Offline

Joined: 21st Oct 2017

Location: France

Posted: 28th Oct 2019 07:29 Edited at: 28th Oct 2019 07:37

Link

In fact post-processing. Image -> memBlock grab Pixels. -> array -> File.

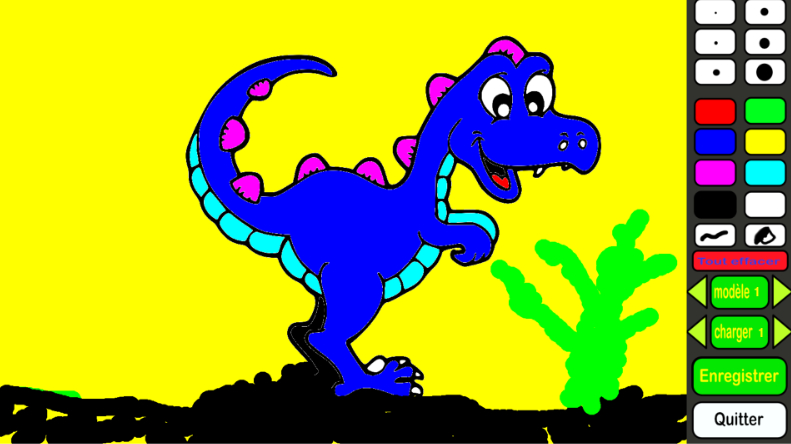

Part of my project :

// Project: Hubibox
// Created: 2017-11-29
// By : Hubert BAYRE.

// Credit additionnel : FillFlood technique
// https://forum.thegamecreators.com/thread/213305
// Created: 2015-01-13
// By: Paul Harthen

//-------------------------------------------------------------------------------------------------------------------------
//
//	JEU DESSIN
//
//-------------------------------------------------------------------------------------------------------------------------

#Constant DESSIN_LARGEUR_IMAGE 1600
#Constant DESSIN_HAUTEUR_IMAGE 900

#Constant DESSIN_DESSINER 1
#Constant DESSIN_REMPLIR 2

Global Dessin_modele_pixelStore as integer[ DESSIN_LARGEUR_IMAGE, DESSIN_HAUTEUR_IMAGE ]
Global Dessin_modele_pixelStoreStack as integer[ 20000 ]
Global Dessin_modele_memBlock as Integer

Global Dessin_ecran_image as Integer
Global Dessin_ecran_sprite as Integer

Global Dessin_num_modele as Integer
Global Dessin_num_fichier as Integer

Global Dessin_sprite_outils as Integer
Global Dessin_image_outils as Integer

Global Dessin_operation as Integer

Global Dessin_texte_num_modele as Integer
Global Dessin_texte_num_fichier as Integer
Global Dessin_texte_message as Integer
Global Dessin_message_timer as Integer

Global Dessin_taille_pinceau as Integer

Type DessinZoneType

	Id as Integer
	x as Integer
	y as Integer
	Largeur as Integer
	Hauteur as Integer

EndType

Type Dessin_stylo_type

	Rouge as Integer
	Bleu as Integer
	Vert as Integer
	Taille as Integer

EndType

Global Dessin_Stylo as Dessin_stylo_type

Global Dessin_tableau_zones as DessinZoneType[]

Global Dessin_etat_jeu as Integer
Global Dessin_son_enregistrement as Integer
Global Dessin_son_outils as Integer

//-------------------------------------------------------------------------------------------------------------------------
//
//	FONCTIONS
//
//-------------------------------------------------------------------------------------------------------------------------

Function Dessin_creer_message (Texte as String)


	SetTextString (Dessin_texte_message, Texte)
	Dessin_message_timer = GetMilliseconds()


EndFunction

Function Dessin_afficher_message ()

	If GetMilliseconds() - Dessin_message_timer > 2000
		SetTextString (Dessin_texte_message, "")
	Endif

EndFunction

Function Dessin_ajouter_zone (Id as Integer, Texte as String, x as Integer, y as Integer, Largeur as Integer, Hauteur as Integer)

Local z as DessinZoneType

	z.Id = Id
	z.x = x
	z.y = y
	z.Largeur = Largeur
	z.Hauteur = Hauteur

	Dessin_tableau_zones.Insert (z)

Endfunction

Function Charger_jeu_dessin()

	Aller_dossier_jeux ("jeu02/data/")

	Local x as Integer
	Local y as Integer

	x = 1386
	y = 0

	Dessin_ajouter_zone (1,"Point1", x+016,y+010,82,52)
	Dessin_ajouter_zone (2,"Point2", x+116,y+010,82,52)
	Dessin_ajouter_zone (3,"Point3", x+016,y+070,82,52)
	Dessin_ajouter_zone (4,"Point4", x+116,y+070,82,52)
	Dessin_ajouter_zone (5,"Point5", x+016,y+130,82,52)
	Dessin_ajouter_zone (6,"Point6", x+116,y+130,82,52)

	Dessin_ajouter_zone (7, "Rouge",   x+016,y+210,82,52)
	Dessin_ajouter_zone (8, "Bleu",    x+016,y+270,82,52)
	Dessin_ajouter_zone (9, "Magenta", x+016,y+332,82,52)
	Dessin_ajouter_zone (10, "Noir",   x+016,y+396,82,52)

Dessin_ajouter_zone (11, "Vert",  x+116,y+210,82,52)
	Dessin_ajouter_zone (12, "Jaune", x+116,y+270,82,52)
	Dessin_ajouter_zone (13, "Cyan",  x+116,y+332,82,52)
	Dessin_ajouter_zone (14, "Blanc", x+116,y+396,82,52)

	Dessin_ajouter_zone (15, "Effacer",     x+12,y+780,190,40)
	Dessin_ajouter_zone (16, "Enregistrer", x+12,y+720,188,40)
	Dessin_ajouter_zone (17, "Quitter",     x+12,y+840,188,50)

	Dessin_ajouter_zone (18, "Modele",                x+48,y+564,116,48)
	Dessin_ajouter_zone (19, "Modele flèche gauche",  x+000,y+563,66,40)
	Dessin_ajouter_zone (20, "Modele flèche droite",  x+172,y+563,66,40)

	Dessin_ajouter_zone (21, "Charger",               x+48,y+644,116,48)
	Dessin_ajouter_zone (22, "Charger flèche gauche", x+000,y+643,66,40)
	Dessin_ajouter_zone (23, "Charger flèche droite", x+172,y+643,66,40)

	Dessin_ajouter_zone (24, "Dessiner", x+16,y+460,82,46)
	Dessin_ajouter_zone (25, "Remplir", x+116,y+460,82,46)

	Dessin_stylo.Taille = 4
	Dessin_stylo.Rouge = 0
	Dessin_stylo.vert = 0
	Dessin_stylo.Bleu = 0

	Dessin_ecran_image = CreateRenderImage (DESSIN_LARGEUR_IMAGE,DESSIN_HAUTEUR_IMAGe,0,0)
	Dessin_ecran_sprite = CreateSprite (Dessin_ecran_image)
	SetSpritePosition (Dessin_ecran_sprite, 0,0)
	SetSpriteDepth (Dessin_ecran_sprite, 3)

SetRenderToImage (Dessin_ecran_image,0)
	SetClearColor(255,255,255)
	ClearScreen()
	SetRenderToScreen()

Dessin_image_outils = LoadImageRaw ("jeu_dessiner.png")
	Dessin_sprite_outils = CreateSprite (Dessin_image_outils)
	SetSpritePosition (Dessin_sprite_outils, x,y)
	SetSpriteTransparency (Dessin_sprite_outils,0)
	SetSpriteDepth (Dessin_sprite_outils,1)

	Dessin_son_enregistrement = LoadSoundOggRaw ("enregistrer.ogg")
	Dessin_son_outils = LoadSoundOggRaw ("choix.ogg")

	Dessin_operation = DESSIN_DESSINER

	Dessin_num_modele = 1
	Dessin_num_fichier = 1

	Dessin_texte_num_modele = CreateText (str(Dessin_num_modele))
	SetTextFont (Dessin_texte_num_modele, Font2)
	SetTextSize (Dessin_texte_num_modele, 32)
	SetTextPosition (Dessin_texte_num_modele, x+140,y+580)
	SetTextColor (Dessin_texte_num_modele, 255,255,0,255)
	SetTextAlignment (Dessin_texte_num_modele,1)
	SetTextDepth (Dessin_texte_num_modele,1)

	Dessin_texte_num_fichier = CreateText (str(Dessin_num_fichier))
	SetTextFont (Dessin_texte_num_fichier, Font2)
	SetTextSize (Dessin_texte_num_fichier, 32)
	SetTextPosition (Dessin_texte_num_fichier, x+148,y+662)
	SetTextColor (Dessin_texte_num_fichier, 255,255,0,255)
	SetTextAlignment (Dessin_texte_num_fichier,1)
	SetTextDepth (Dessin_texte_num_fichier,1)

	Dessin_texte_message = CreateText ("")
	SetTextFont (Dessin_texte_message, Font2)
	SetTextSize (Dessin_texte_message, 40)
	SetTextPosition (Dessin_texte_message, DESSIN_LARGEUR_IMAGE / 2,10)
	SetTextColor (Dessin_texte_message, 0,0,0,255)
	SetTextAlignment (Dessin_texte_message,1)
	SetTextDepth (Dessin_texte_message,0)


EndFunction

Function Dessin_tester_zone (x as Integer, y as Integer)

	Local i as Integer
	Local Id as Integer

	Id = -1

	For i=0 to Dessin_tableau_zones.Length

		If x > Dessin_tableau_zones[i].x and x < Dessin_tableau_zones[i].x + Dessin_tableau_zones[i].Largeur

If y > Dessin_tableau_zones[i].y and y < Dessin_tableau_zones[i].y + Dessin_tableau_zones[i].Hauteur

Id = Dessin_tableau_zones[i].Id
				PlaySound (Dessin_son_outils)
				ExitFunction Id

EndIf

EndIf

	Next

EndFunction Id

Function Dessin_enregistrer_fichier()

	Local Fichier as String

Local Chemin as String

	Chemin = "raw:" + GetDocumentsPath()
	Chemin = Chemin + "/hubibox_dessins/"

	If Dessin_num_modele <=9
		Fichier = "dessin_0" + Str(Dessin_num_fichier) + ".png"
	Else
		Fichier = "dessin_" + Str(Dessin_num_fichier) + ".png"
	Endif

	Dessin_creer_message ("Le fichier '" + Fichier + "' a été enregistré.")

	SaveImage (Dessin_ecran_image,  Chemin + Fichier)
	Playsound (Dessin_son_enregistrement)

EndFunction

Function Dessin_charger_fichier()

	Local Fichier as String

Local Chemin as String

	Chemin = "raw:" + GetDocumentsPath()
	Chemin = Chemin + "/hubibox_dessins/"

	If Dessin_num_modele <=9
		Fichier = "dessin_0" + Str(Dessin_num_fichier) + ".png"
	Else
		Fichier = "dessin_" + Str(Dessin_num_fichier) + ".png"
	Endif

	If GetFileExists (Chemin + Fichier)

Dessin_ecran_image = LoadImage (Chemin + Fichier)
		Playsound (Dessin_son_enregistrement)
		SetSpriteImage ( Dessin_ecran_sprite, Dessin_ecran_image )

		Dessin_creer_message ("Le fichier '" + Fichier + "' a été chargé.")

	Else

		Dessin_creer_message ("Le fichier '" + Fichier + "' n'a pas été trouvé.")

	EndIf


EndFunction

Function Dessin_jouer()

Local x as Integer
	Local y as Integer
	Local Id as Integer

	x = GetPointerX()
	y = GetPointerY()

	MessageInfo_afficher()

	Dessin_afficher_message()

	If x > 1400

		If Pointeur_tester() = TRUE

			Id = Dessin_tester_zone(x,y)

			If Id <> -1

				Select Id

Case 1
						Dessin_stylo.Taille = 4
					EndCase

Case 2
						Dessin_stylo.Taille = 8
					EndCase

Case 3
						Dessin_stylo.Taille = 12
					EndCase

Case 4
						Dessin_stylo.Taille = 16
					EndCase

Case 5
						Dessin_stylo.Taille = 24
					EndCase

Case 6
						Dessin_stylo.Taille = 34
					EndCase

					Case 7
						Dessin_stylo.Rouge = 255
						Dessin_stylo.Vert = 0
						Dessin_stylo.Bleu = 0
					EndCase

Case 8
						Dessin_stylo.Rouge = 0
						Dessin_stylo.Vert = 0
						Dessin_stylo.Bleu = 255

					EndCase

Case 9
						Dessin_stylo.Rouge = 255
						Dessin_stylo.Vert = 0
						Dessin_stylo.Bleu = 255
					EndCase

Case 10
						Dessin_stylo.Rouge = 0
						Dessin_stylo.Vert = 0
						Dessin_stylo.Bleu = 0
					EndCase

Case 11
						Dessin_stylo.Rouge = 0
						Dessin_stylo.Vert = 255
						Dessin_stylo.Bleu = 0
					EndCase

Case 12
						Dessin_stylo.Rouge = 255
						Dessin_stylo.Vert = 255
						Dessin_stylo.Bleu = 0
					EndCase

Case 13
						Dessin_stylo.Rouge = 0
						Dessin_stylo.Vert = 255
						Dessin_stylo.Bleu = 255
					EndCase

Case 14
						Dessin_stylo.Rouge = 255
						Dessin_stylo.Vert = 255
						Dessin_stylo.Bleu = 255
					EndCase

Case 15
						Dessin_effacer_ecran()
					EndCase

					Case 16
						Dessin_enregistrer_fichier()
					EndCase

					Case 17
						Dessin_etat_jeu = JEU_QUITTER
					EndCase

					Case 18
						Dessin_charger_modele()
					EndCase

					Case 19
						If Dessin_num_modele > 1
							Dec Dessin_num_modele, 1
						Else
							Dessin_num_modele = 10
						EndIf
						SetTextString (Dessin_texte_num_modele, Str(Dessin_num_modele))
					EndCase

					Case 20
						If Dessin_num_modele <= 9
							Inc Dessin_num_modele, 1
						Else
							Dessin_num_modele = 1
						EndIf
						SetTextString (Dessin_texte_num_modele, Str(Dessin_num_modele))
					EndCase


					Case 21
						Dessin_charger_fichier()
					EndCase

					Case 22
						If Dessin_num_fichier > 1
							Dec Dessin_num_fichier, 1
						Else
							Dessin_num_fichier = 10
						EndIf
						SetTextString (Dessin_texte_num_fichier, Str(Dessin_num_fichier))
					EndCase

					Case 23
						If Dessin_num_fichier <= 9
							Inc Dessin_num_fichier, 1
						Else
							Dessin_num_fichier = 1
						EndIf
						SetTextString (Dessin_texte_num_fichier, Str(Dessin_num_fichier))
					EndCase

					Case 24
						Dessin_operation = DESSIN_DESSINER
					EndCase

Case 25
						Dessin_operation = DESSIN_REMPLIR
					EndCase

				EndSelect

EndIf

			If y > 508 and y < 559
				Dessin_AttrapperCouleur (x,y)
			EndIf

EndIf

Else

		Select Dessin_operation

			Case DESSIN_REMPLIR

				If Pointeur_tester() = TRUE

					Local Dessin_couleur_fond as Integer

					If GetMemBlockExists(Dessin_modele_memBlock) = TRUE
						DeleteMemblock (Dessin_modele_memBlock)
					EndIf

					Dessin_modele_memBlock = CreateMemBlockFromImage (Dessin_ecran_image)
					Dessin_couleur_fond = Dessin_modele_GetPixel ( Dessin_modele_memBlock, 0, 0, DESSIN_LARGEUR_IMAGE ) // Grab first pixel and set the colour as background colour, this will not be a black line on the pic
					Dessin_modele_remplir(Dessin_stylo.Rouge,Dessin_stylo.Vert, Dessin_stylo.Bleu)
					Dessin_ecran_image = CreateImageFromMemBlock (Dessin_modele_memBlock)
					SetSpriteImage ( Dessin_ecran_sprite, Dessin_ecran_image )

				EndIf
			EndCase

			Case DESSIN_DESSINER


				If GetPointerState() = 1

					SetRenderToImage(Dessin_ecran_image,0)

					Local Dessin_couleur as Integer

					Dessin_couleur = MakeColor (Dessin_stylo.Rouge,Dessin_stylo.Vert, Dessin_stylo.Bleu)
					Dessin_ellipse (x,y,Dessin_stylo.Taille/2,Dessin_stylo.Taille/2, Dessin_couleur)

					SetRenderToScreen()

				EndIf

			EndCase

		EndSelect

	EndIf

EndFunction

Function Dessin_effacer_ecran()

SetRenderToImage (Dessin_ecran_image,0)
	SetClearColor(255,255,255)
	ClearScreen()
	SetRenderToScreen()

EndFunction

Function Dessin_liberer_jeu()

	If GetMemBlockExists(Dessin_modele_memBlock) = TRUE
		DeleteMemblock (Dessin_modele_memBlock)
	EndIf

	SetSpriteDepth(Dessin_ecran_sprite,20)

	DeleteSprite (Dessin_sprite_outils)
	DeleteSPrite (Dessin_ecran_sprite)

	DeleteImage (Dessin_image_outils)
	DeleteImage (Dessin_ecran_image)

	DeleteSound (Dessin_son_enregistrement)
	DeleteSound (Dessin_son_outils)

	DeleteText (Dessin_texte_num_fichier)
	DeleteText (Dessin_texte_num_modele)

	DeleteText (Dessin_texte_message)

EndFunction

Function Dessin_ellipse(xc as Integer, yc as Integer, a as Integer, b as Integer, Color as Integer)

	// http://enchantia.com/graphapp/doc/tech/ellipses.html
	// McIlroy's algorithm

/* e(x,y) = b^2*x^2 + a^2*y^2 - a^2*b^2 */

    Local x as Integer
    Local y as Integer
    Local width as Integer

    Local a2 as Integer
    Local b2 as Integer

Local crit1 as Integer
	Local crit2 as Integer
	Local crit3 as Integer
	Local t as Integer

	Local dxt as Integer
	Local dyt as Integer

Local d2xt as Integer
	Local d2yt as Integer

    x = 0
    y = b
    width = 1

    a2 = a * a
    b2 = b * b

    crit1 = -(a2/4 + mod(a,2) + b2)
    crit2 = -(b2/4 + mod(b,2) + a2)
    crit3 = -(b2/4 + mod (b,2))

    t = -a2 * y /* e(x+1/2,y-1/2) - (a^2+b^2)/4 */

    dxt  = 2 * b2 * x
    dyt  = -2 * a2 * y
    d2xt = 2 * b2
    d2yt = 2 * a2

    While y>=0 and x <= a

        If t + b2 * x <= crit1 or t + a2 * y <= crit3     /* e(x+1,y-1/2) <= 0 */  /* e(x+1/2,y) <= 0 */

            //Incx()
			x = x + 1
			dxt = dxt + d2xt
			t = t + dxt

            width = width + 2

ElseIf t - a2*y > crit2  /* e(x+1/2,y-1) > 0 */

				DrawLine (xc-x, yc-y,xc-x + width, yc-y,Color, Color)

				If (y <> 0) Then DrawLine(xc-x, yc+y, xc-x+ width, yc+y, Color, Color)

				//Incy()
				y = y - 1
				dyt = dyt + d2yt
				t = t + dyt

        Else

            DrawLine (xc - x, yc - y, xc - x+ width, yc - y, Color, Color)

If (y <> 0) Then DrawLine(xc - x, yc + y, xc - x + width, yc + y, Color, Color)

// IncX
			x = x + 1
			dxt = dxt + d2xt
			t = t + dxt

//Incy()
			y = y - 1
			dyt = dyt + d2yt
			t = t + dyt

width = width + 2

EndIf

    EndWhile

If b = 0 Then DrawLine (xc - a, yc, xc - a + 2 * a + 1, yc, Color, Color)

EndFunction

Function Dessin_creer_fichier_donnees (Fichier as String)

	Local f as Integer

	Local Colonne as Integer
	Local Rangee as Integer

	Local Valeur as Integer

	Aller_dossier_jeux ("jeu02/modeles/")

	f = OpenToWrite (Chemin_externe + Fichier)

	WriteString (f, "--- Fichier données dessin hubibox ---")

	For Colonne=0 To DESSIN_LARGEUR_IMAGE

		For Rangee=0 To DESSIN_HAUTEUR_IMAGE

			Valeur = Dessin_modele_pixelStore[Colonne, Rangee]

			WriteInteger (f, Valeur)

		Next

	Next

	CloseFile (f)

EndFunction

Function Dessin_charger_fichier_donnees (Fichier as String)

	Local f as Integer

	Local Colonne as Integer
	Local Rangee as Integer

	Local Valeur as Integer

	Aller_dossier_jeux ("jeu02/modeles/")

	f = OpenToRead (Chemin_externe + Fichier)

	ReadString (f) // Rien

	For Colonne=0 To DESSIN_LARGEUR_IMAGE

		For Rangee=0 To DESSIN_HAUTEUR_IMAGE

			Valeur = ReadInteger (f)
			Dessin_modele_pixelStore[Colonne, Rangee] = Valeur

		Next

	Next

	CloseFile (f)

EndFunction

Function Dessin_charger_modele ()

	Local Dessin_couleur_fond as Integer

	Local Fichier_png as String
	Local Fichier_dat as String

	If Dessin_num_modele <=9
		Fichier_png = "modele_0" + Str(Dessin_num_modele) + ".png"
	Else
		Fichier_png = "modele_" + Str(Dessin_num_modele) + ".png"
	Endif

	Fichier_dat = ReplaceString (Fichier_png, ".png", ".dat",1)

	Aller_dossier_jeux ("jeu02/modeles/")

	If GetFileExists (Chemin_externe + "/" + Fichier_png)

	// set screen properties and images
		// picture is 1600 x 900 and has 2 colours for white background and black lines

		Dessin_ecran_image = LoadImageRaw ( Fichier_png )


		If GetMemBlockExists (Dessin_modele_memBlock) = TRUE
			DeleteMemBlock(Dessin_modele_memBlock)
		EndIf

		Dessin_modele_memBlock = CreateMemblockFromImage ( Dessin_ecran_image )

		Dessin_couleur_fond = Dessin_modele_GetPixel ( Dessin_modele_memBlock, 0, 0, DESSIN_LARGEUR_IMAGE ) // Grab first pixel and set the colour as background colour, this will not be a black line on the pic
		Dessin_couleur_fond  = 765 // equivalent blanc r=255,v=255,b=255


		// set display properties

		If GetFileExists (Chemin_externe + "/" + Fichier_dat)
			Dessin_creer_message ("Le fichier modèle '" + Fichier_png + "' est en cours de chargement...")
			Sync()
			Dessin_charger_fichier_donnees(Fichier_dat)
		Else
			Dessin_creer_message ("Veuillez patienter, le fichier modèle '" + Fichier_png + "' est en cours de post-traitement...")
			Sync()
			Dessin_modele_StoreFillPixels ( Dessin_modele_memBlock, DESSIN_LARGEUR_IMAGE,DESSIn_HAUTEUR_IMAGE, Dessin_couleur_fond )
			Dessin_creer_fichier_donnees (Fichier_dat)
		EndIf

		SetSpriteImage (Dessin_ecran_sprite, Dessin_ecran_image)

		Dessin_creer_message ("Le fichier modèle '" + Fichier_png + "' a été chargé")

	Else

		Dessin_creer_message ("Le fichier modèle '" + Fichier_png + "' n'a pas été trouvé !")
	EndIf

EndFunction

Function Dessin_modele_remplir (Rouge as Integer, Vert as Integer, Bleu as Integer)

	Local PixelCheck as Integer

	Local Alpha as Integer

	Local x as Integer
	Local y as Integer

	x = GetPointerX()
	y = GetPointerY()

while GetPointerReleased()=0
		Sync()
	Endwhile

	// Checks pointer is in the main screen area to fill picture

	If x >= 0 and x <= DESSIN_LARGEUR_IMAGE and y >= 0 and y <= DESSIN_HAUTEUR_IMAGE

		// Checks the pixel Array at the pointer location
		Pixelcheck = Dessin_modele_PixelStore [ x+1, y+1 ]

		// If this location contains a black line then ignore the fill as don't want to fill in the black lines
		// If location is the background then colour the area with a random colour but not transparent re Alpha

		If Pixelcheck <> 0

			Alpha = 255

			Dessin_modele_FloodFill ( Dessin_modele_memBlock, x, y, DESSIN_LARGEUR_IMAGE, DESSIN_HAUTEUR_IMAGE, Rouge, Vert, Bleu, Alpha )

		Endif

	Endif

EndFunction

Function Dessin_modele_StoreFillPixels ( MemBlockInput as Integer , Largeur_image as Integer , Hauteur_image as Integer , Couleur_fond as Integer)

	// grab Memory Block pixels into an array from screen to store each fill area as a seperate value
	// This fills the Array values to zero's

	Local x as Integer
	Local y as Integer

	Local i as Integer

	Local newFillAreaRow as Integer
	Local FillAreaNum as Integer
	Local newColour as Integer
	local oldColour as Integer
	Local RowsAgain as Integer
	Local ColumnsAgain as Integer

	Local Rangees as Integer
	Local Colonnes as Integer

	Local Couleur_test as Integer

	Local Couleur_dessus as Integer
	Local Couleur_gauche as Integer

	For y = 0 to Hauteur_image
		For x = 0 to Largeur_image

			Dessin_modele_PixelStore [ Largeur_image, Hauteur_image ] = 0
		Next
	Next

	For i = 0 To 20000

		Dessin_Modele_pixelStoreStack [ i ] = 0

	Next

	newFillAreaRow = 0

	/*
	This For/Next routine checks every pixel in the memBlock and also checks the pixel
	above and to the left for areas to fill with numbers.
	This creates an Array with numbers similar to a Picture By Numbers card.
	I use this method instead of flood fill on the fly for speed of colouring
	otherwise it is too slow.
	*/

	For Rangees = 1 to Hauteur_image

			Dessin_creer_message ("Veuillez patienter est en cours de post-traitement : " + Str ( (Colonnes-1) + (Rangees-1) * DESSIN_LARGEUR_IMAGE) + "/" + Str(DESSIN_HAUTEUR_IMAGE * DESSIN_LARGEUR_IMAGE) )
			Sync()

			For Colonnes = 1 to Largeur_image

			// Sets Couleur_test to pixel value at co-ords in the memBlock

			Couleur_test = Dessin_modele_GetPixel ( memBlockInput, Colonnes-1, Rangees-1, Largeur_image )

			// If the Couleur_test is equal to the background colour Couleur_fond then find fill area (zero is a black line so will leave Array value as zero)

			If Couleur_test = Couleur_fond

				// Sets pixels above and left to zero incase rows and columns are at the edge of the screen

				Couleur_dessus = 0
				couleur_gauche = 0

				// Checks for edge of screen

				If Rangees > 1 Then Couleur_dessus = Dessin_modele_PixelStore [ Colonnes, Rangees - 1 ]
				If Colonnes > 1 Then Couleur_gauche = Dessin_modele_PixelStore [ Colonnes - 1 , Rangees ]



				If Couleur_dessus = 0 and Couleur_gauche = 0

					NewFillAreaRow = NewFillAreaRow + 1
					FillAreaNum = NewFillAreaRow
					Dessin_modele_PixelStoreStack [ newFillAreaRow ] = Rangees

				Else
					If Couleur_gauche <> 0 and Couleur_dessus <> 0
					If Couleur_gauche = Couleur_dessus
						FillAreaNum = Couleur_gauche
				Else
					newColour = Couleur_dessus
					oldColour = Couleur_gauche

				/*
				The below For/Next Stack:
				Checks rows/columns for new fill area number that
				has been created and if this area is not enclosed
				with a black line changes these numbers to the correct
				fill area number
				*/

				For rowsAgain = Dessin_modele_pixelStoreStack [ oldColour ] to Rangees
					For columnsAgain = 1 to Largeur_image
						If Dessin_modele_pixelStore [ columnsAgain, rowsAgain ] = oldColour
							Dessin_modele_pixelStore [ columnsAgain, rowsAgain ] = newColour
							If rowsAgain < Dessin_modele_pixelStoreStack [ newColour ] Then Dessin_modele_PixelStoreStack [ newColour ] = rowsAgain
						Endif
					Next
				Next

				FillAreaNum = newColour

				Endif
				Else
					FillAreaNum = Couleur_gauche + Couleur_dessus
				Endif

				Endif
				// Sets a fill area value to the pixelStore Array - This Array is the same size as the colouring screen
				Dessin_modele_pixelStore [ Colonnes, Rangees ] = FillAreaNum

			Endif

		Next
	Next

Endfunction

Function Dessin_modele_GetPixel ( MemBlockIn as Integer, x as Integer, y as Integer, Largeur as Integer )

	// function to obtain colour value (RGB) and Alpha value if needed of each pixel in the memory block

	/*
	I add the values for RGB together and return this value as one integer as I do not
	need seperate values to check my fill areas for the Array in pixelStore, I only
	need to check for the values of the background and the black lines in my
	image to colour

	*/

Local PixelColourRGB as Integer

	Local Rouge as Integer
	Local Vert as Integer
	Local Bleu as Integer
	Local Alpha as Integer

	Local OffsetPixel as Integer

	OffsetPixel = 12 + (( x + ( y * Largeur )) * 4 )

	Rouge = GetMemBlockByte ( MemBlockIn, OffsetPixel )
	Vert = GetMemBlockByte ( MemBlockIn, OffsetPixel + 1 )
	Bleu = GetMemBlockByte ( MemBlockIn, OffsetPixel + 2 )
	Alpha = GetMemBlockByte ( MemBlockIn, OffsetPixel + 3 )

	PixelColourRGB = Rouge + Vert + Bleu

Endfunction PixelColourRGB

Function Dessin_modele_FloodFill ( MemBlockIn as Integer, x as Integer, y as Integer, Largeur as Integer, Hauteur as Integer, Rouge as Integer, Vert as Integer, Bleu as Integer, Alpha as Integer)

	// Function to fill area with colour inside the memblock
	/*
	This checks the area of the image at the x/y co-ords where the pointer is and
	stores this value in pixelcheck.
	It then checks the full Array of pixelStore for the image and stores a new
	RGBA value to the memBlock at the location on the Array with the same value
	as in pixelcheck, thus filling the numbered area like colour by numbers card.
	*/

	Local Rangee as Integer
	Local Colonne as Integer
	Local PixelCheck as Integer
	Local OffsetPixel as Integer

	PixelCheck = Dessin_modele_PixelStore [ x+1, y+1 ]

	For Rangee = 1 To Hauteur
		For Colonne = 1 To Largeur

			If Dessin_modele_pixelStore [ Colonne, Rangee ] = Pixelcheck

				OffsetPixel = 12 + (( (Colonne-1) + ( ( Rangee-1) * Largeur )) * 4 )

				SetMemblockByte( MemBlockIn, OffsetPixel, Rouge )
				SetMemblockByte( MemBlockIn, OffsetPixel+1, Vert )
				SetMemblockByte( MemBlockIn, OffsetPixel+2, Bleu )
				SetMemblockByte( MemBlockIn, OffsetPixel+3, Alpha )

			Endif
		Next
	Next

Endfunction

Function Dessin_AttrapperCouleur(X as integer,Y as Integer)

	Local Couleur as Dessin_stylo_type
	Local Mem as Integer
	Local Largeur as Integer
	Local xx as Integer
	Local OffsetPixel as Integer

	Largeur = GetImageWidth (Dessin_image_outils)

    Mem = createMemblockfromImage(Dessin_image_outils)

    xx = x - GetSpriteX (Dessin_sprite_outils)


	OffsetPixel = 12 + (( xx + ( y * Largeur )) * 4 )

	Couleur.Rouge = GetMemBlockByte ( Mem, OffsetPixel )
	Couleur.Vert = GetMemBlockByte ( Mem, OffsetPixel + 1 )
	Couleur.Bleu = GetMemBlockByte ( Mem, OffsetPixel + 2 )

    Deletememblock(Mem)

    Dessin_stylo.Rouge = Couleur.Rouge
    Dessin_stylo.Vert = Couleur.Vert
    Dessin_stylo.Bleu = Couleur.Bleu

EndFunction

//-------------------------------------------------------------------------------------------------------------------------
//
//	PROGRAMME
//
//-------------------------------------------------------------------------------------------------------------------------

Function Jouer_jeu_deux()

	Charger_jeu_dessin()

Pointeur_vider()

Dessin_etat_jeu = JEU_DEBUT_NIVEAU

	Repeat

		Dessin_jouer()

		If GetRawKeyPressed(27)
			Ecrire_dans_journal ("Fin du programme, sortie par touche ECHAP.")
			End
		EndIf

		Pointeur_afficher()

		Sync()

		If GetRawKeyPressed (TOUCHE_CAPTURE_ECRAN)
			Capturer_image_ecran()
		EndIf

	Until Dessin_etat_jeu = JEU_QUITTER

	Dessin_liberer_jeu()

EndFunction

//-------------------------------------------------------------------------------------------------------------------------
//
//	FIN DE PROGRAMME
//
//-------------------------------------------------------------------------------------------------------------------------

+ Code Snippet

// Project: Hubibox
// Created: 2017-11-29
// By : Hubert BAYRE.

// Credit additionnel : FillFlood technique
// https://forum.thegamecreators.com/thread/213305
// Created: 2015-01-13
// By: Paul Harthen

//-------------------------------------------------------------------------------------------------------------------------
//
//	JEU DESSIN
//
//-------------------------------------------------------------------------------------------------------------------------

#Constant DESSIN_LARGEUR_IMAGE 1600
#Constant DESSIN_HAUTEUR_IMAGE 900

#Constant DESSIN_DESSINER 1
#Constant DESSIN_REMPLIR 2

Global Dessin_modele_pixelStore as integer[ DESSIN_LARGEUR_IMAGE, DESSIN_HAUTEUR_IMAGE ]
Global Dessin_modele_pixelStoreStack as integer[ 20000 ]
Global Dessin_modele_memBlock as Integer

Global Dessin_ecran_image as Integer
Global Dessin_ecran_sprite as Integer

Global Dessin_num_modele as Integer
Global Dessin_num_fichier as Integer

Global Dessin_sprite_outils as Integer
Global Dessin_image_outils as Integer

Global Dessin_operation as Integer

Global Dessin_texte_num_modele as Integer
Global Dessin_texte_num_fichier as Integer
Global Dessin_texte_message as Integer
Global Dessin_message_timer as Integer

Global Dessin_taille_pinceau as Integer

Type DessinZoneType

	Id as Integer
	x as Integer
	y as Integer
	Largeur as Integer
	Hauteur as Integer

EndType

Type Dessin_stylo_type

	Rouge as Integer
	Bleu as Integer
	Vert as Integer
	Taille as Integer

EndType

Global Dessin_Stylo as Dessin_stylo_type

Global Dessin_tableau_zones as DessinZoneType[]

Global Dessin_etat_jeu as Integer
Global Dessin_son_enregistrement as Integer
Global Dessin_son_outils as Integer

//-------------------------------------------------------------------------------------------------------------------------
//
//	FONCTIONS
//
//-------------------------------------------------------------------------------------------------------------------------

Function Dessin_creer_message (Texte as String)


	SetTextString (Dessin_texte_message, Texte)
	Dessin_message_timer = GetMilliseconds()


EndFunction

Function Dessin_afficher_message ()

	If GetMilliseconds() - Dessin_message_timer > 2000
		SetTextString (Dessin_texte_message, "")
	Endif

EndFunction

Function Dessin_ajouter_zone (Id as Integer, Texte as String, x as Integer, y as Integer, Largeur as Integer, Hauteur as Integer)

	Local z as DessinZoneType

	z.Id = Id
	z.x = x
	z.y = y
	z.Largeur = Largeur
	z.Hauteur = Hauteur

	Dessin_tableau_zones.Insert (z)

Endfunction

Function Charger_jeu_dessin()

	Aller_dossier_jeux ("jeu02/data/")

	Local x as Integer
	Local y as Integer

	x = 1386
	y = 0

	Dessin_ajouter_zone (1,"Point1", x+016,y+010,82,52)
	Dessin_ajouter_zone (2,"Point2", x+116,y+010,82,52)
	Dessin_ajouter_zone (3,"Point3", x+016,y+070,82,52)
	Dessin_ajouter_zone (4,"Point4", x+116,y+070,82,52)
	Dessin_ajouter_zone (5,"Point5", x+016,y+130,82,52)
	Dessin_ajouter_zone (6,"Point6", x+116,y+130,82,52)

	Dessin_ajouter_zone (7, "Rouge",   x+016,y+210,82,52)
	Dessin_ajouter_zone (8, "Bleu",    x+016,y+270,82,52)
	Dessin_ajouter_zone (9, "Magenta", x+016,y+332,82,52)
	Dessin_ajouter_zone (10, "Noir",   x+016,y+396,82,52)

	Dessin_ajouter_zone (11, "Vert",  x+116,y+210,82,52)
	Dessin_ajouter_zone (12, "Jaune", x+116,y+270,82,52)
	Dessin_ajouter_zone (13, "Cyan",  x+116,y+332,82,52)
	Dessin_ajouter_zone (14, "Blanc", x+116,y+396,82,52)

	Dessin_ajouter_zone (15, "Effacer",     x+12,y+780,190,40)
	Dessin_ajouter_zone (16, "Enregistrer", x+12,y+720,188,40)
	Dessin_ajouter_zone (17, "Quitter",     x+12,y+840,188,50)

	Dessin_ajouter_zone (18, "Modele",                x+48,y+564,116,48)
	Dessin_ajouter_zone (19, "Modele flèche gauche",  x+000,y+563,66,40)
	Dessin_ajouter_zone (20, "Modele flèche droite",  x+172,y+563,66,40)

	Dessin_ajouter_zone (21, "Charger",               x+48,y+644,116,48)
	Dessin_ajouter_zone (22, "Charger flèche gauche", x+000,y+643,66,40)
	Dessin_ajouter_zone (23, "Charger flèche droite", x+172,y+643,66,40)

	Dessin_ajouter_zone (24, "Dessiner", x+16,y+460,82,46)
	Dessin_ajouter_zone (25, "Remplir", x+116,y+460,82,46)

	Dessin_stylo.Taille = 4
	Dessin_stylo.Rouge = 0
	Dessin_stylo.vert = 0
	Dessin_stylo.Bleu = 0

	Dessin_ecran_image = CreateRenderImage (DESSIN_LARGEUR_IMAGE,DESSIN_HAUTEUR_IMAGe,0,0)
	Dessin_ecran_sprite = CreateSprite (Dessin_ecran_image)
	SetSpritePosition (Dessin_ecran_sprite, 0,0)
	SetSpriteDepth (Dessin_ecran_sprite, 3)

	SetRenderToImage (Dessin_ecran_image,0)
	SetClearColor(255,255,255)
	ClearScreen()
	SetRenderToScreen()

	Dessin_image_outils = LoadImageRaw ("jeu_dessiner.png")
	Dessin_sprite_outils = CreateSprite (Dessin_image_outils)
	SetSpritePosition (Dessin_sprite_outils, x,y)
	SetSpriteTransparency (Dessin_sprite_outils,0)
	SetSpriteDepth (Dessin_sprite_outils,1)

	Dessin_son_enregistrement = LoadSoundOggRaw ("enregistrer.ogg")
	Dessin_son_outils = LoadSoundOggRaw ("choix.ogg")

	Dessin_operation = DESSIN_DESSINER

	Dessin_num_modele = 1
	Dessin_num_fichier = 1

	Dessin_texte_num_modele = CreateText (str(Dessin_num_modele))
	SetTextFont (Dessin_texte_num_modele, Font2)
	SetTextSize (Dessin_texte_num_modele, 32)
	SetTextPosition (Dessin_texte_num_modele, x+140,y+580)
	SetTextColor (Dessin_texte_num_modele, 255,255,0,255)
	SetTextAlignment (Dessin_texte_num_modele,1)
	SetTextDepth (Dessin_texte_num_modele,1)

	Dessin_texte_num_fichier = CreateText (str(Dessin_num_fichier))
	SetTextFont (Dessin_texte_num_fichier, Font2)
	SetTextSize (Dessin_texte_num_fichier, 32)
	SetTextPosition (Dessin_texte_num_fichier, x+148,y+662)
	SetTextColor (Dessin_texte_num_fichier, 255,255,0,255)
	SetTextAlignment (Dessin_texte_num_fichier,1)
	SetTextDepth (Dessin_texte_num_fichier,1)

	Dessin_texte_message = CreateText ("")
	SetTextFont (Dessin_texte_message, Font2)
	SetTextSize (Dessin_texte_message, 40)
	SetTextPosition (Dessin_texte_message, DESSIN_LARGEUR_IMAGE / 2,10)
	SetTextColor (Dessin_texte_message, 0,0,0,255)
	SetTextAlignment (Dessin_texte_message,1)
	SetTextDepth (Dessin_texte_message,0)


EndFunction


Function Dessin_tester_zone (x as Integer, y as Integer)

	Local i as Integer
	Local Id as Integer

	Id = -1

	For i=0 to Dessin_tableau_zones.Length

		If x > Dessin_tableau_zones[i].x and x < Dessin_tableau_zones[i].x + Dessin_tableau_zones[i].Largeur

			If y > Dessin_tableau_zones[i].y and y < Dessin_tableau_zones[i].y + Dessin_tableau_zones[i].Hauteur

				Id = Dessin_tableau_zones[i].Id
				PlaySound (Dessin_son_outils)
				ExitFunction Id

			EndIf

		EndIf

	Next

EndFunction Id

Function Dessin_enregistrer_fichier()

	Local Fichier as String

	Local Chemin as String

	Chemin = "raw:" + GetDocumentsPath()
	Chemin = Chemin + "/hubibox_dessins/"

	If Dessin_num_modele <=9
		Fichier = "dessin_0" + Str(Dessin_num_fichier) + ".png"
	Else
		Fichier = "dessin_" + Str(Dessin_num_fichier) + ".png"
	Endif

	Dessin_creer_message ("Le fichier '" + Fichier + "' a été enregistré.")

	SaveImage (Dessin_ecran_image,  Chemin + Fichier)
	Playsound (Dessin_son_enregistrement)

EndFunction

Function Dessin_charger_fichier()

	Local Fichier as String

	Local Chemin as String

	Chemin = "raw:" + GetDocumentsPath()
	Chemin = Chemin + "/hubibox_dessins/"

	If Dessin_num_modele <=9
		Fichier = "dessin_0" + Str(Dessin_num_fichier) + ".png"
	Else
		Fichier = "dessin_" + Str(Dessin_num_fichier) + ".png"
	Endif

	If GetFileExists (Chemin + Fichier)

		Dessin_ecran_image = LoadImage (Chemin + Fichier)
		Playsound (Dessin_son_enregistrement)
		SetSpriteImage ( Dessin_ecran_sprite, Dessin_ecran_image )

		Dessin_creer_message ("Le fichier '" + Fichier + "' a été chargé.")

	Else

		Dessin_creer_message ("Le fichier '" + Fichier + "' n'a pas été trouvé.")

	EndIf


EndFunction

Function Dessin_jouer()

	Local x as Integer
	Local y as Integer
	Local Id as Integer

	x = GetPointerX()
	y = GetPointerY()

	MessageInfo_afficher()

	Dessin_afficher_message()

	If x > 1400

		If Pointeur_tester() = TRUE

			Id = Dessin_tester_zone(x,y)

			If Id <> -1

				Select Id

					Case 1
						Dessin_stylo.Taille = 4
					EndCase

					Case 2
						Dessin_stylo.Taille = 8
					EndCase

					Case 3
						Dessin_stylo.Taille = 12
					EndCase

					Case 4
						Dessin_stylo.Taille = 16
					EndCase

					Case 5
						Dessin_stylo.Taille = 24
					EndCase

					Case 6
						Dessin_stylo.Taille = 34
					EndCase

					Case 7
						Dessin_stylo.Rouge = 255
						Dessin_stylo.Vert = 0
						Dessin_stylo.Bleu = 0
					EndCase

					Case 8
						Dessin_stylo.Rouge = 0
						Dessin_stylo.Vert = 0
						Dessin_stylo.Bleu = 255

					EndCase

					Case 9
						Dessin_stylo.Rouge = 255
						Dessin_stylo.Vert = 0
						Dessin_stylo.Bleu = 255
					EndCase

					Case 10
						Dessin_stylo.Rouge = 0
						Dessin_stylo.Vert = 0
						Dessin_stylo.Bleu = 0
					EndCase

					Case 11
						Dessin_stylo.Rouge = 0
						Dessin_stylo.Vert = 255
						Dessin_stylo.Bleu = 0
					EndCase

					Case 12
						Dessin_stylo.Rouge = 255
						Dessin_stylo.Vert = 255
						Dessin_stylo.Bleu = 0
					EndCase

					Case 13
						Dessin_stylo.Rouge = 0
						Dessin_stylo.Vert = 255
						Dessin_stylo.Bleu = 255
					EndCase

					Case 14
						Dessin_stylo.Rouge = 255
						Dessin_stylo.Vert = 255
						Dessin_stylo.Bleu = 255
					EndCase

					Case 15
						Dessin_effacer_ecran()
					EndCase

					Case 16
						Dessin_enregistrer_fichier()
					EndCase

					Case 17
						Dessin_etat_jeu = JEU_QUITTER
					EndCase

					Case 18
						Dessin_charger_modele()
					EndCase

					Case 19
						If Dessin_num_modele > 1
							Dec Dessin_num_modele, 1
						Else
							Dessin_num_modele = 10
						EndIf
						SetTextString (Dessin_texte_num_modele, Str(Dessin_num_modele))
					EndCase

					Case 20
						If Dessin_num_modele <= 9
							Inc Dessin_num_modele, 1
						Else
							Dessin_num_modele = 1
						EndIf
						SetTextString (Dessin_texte_num_modele, Str(Dessin_num_modele))
					EndCase


					Case 21
						Dessin_charger_fichier()
					EndCase

					Case 22
						If Dessin_num_fichier > 1
							Dec Dessin_num_fichier, 1
						Else
							Dessin_num_fichier = 10
						EndIf
						SetTextString (Dessin_texte_num_fichier, Str(Dessin_num_fichier))
					EndCase

					Case 23
						If Dessin_num_fichier <= 9
							Inc Dessin_num_fichier, 1
						Else
							Dessin_num_fichier = 1
						EndIf
						SetTextString (Dessin_texte_num_fichier, Str(Dessin_num_fichier))
					EndCase

					Case 24
						Dessin_operation = DESSIN_DESSINER
					EndCase


					Case 25
						Dessin_operation = DESSIN_REMPLIR
					EndCase

				EndSelect

			EndIf

			If y > 508 and y < 559
				Dessin_AttrapperCouleur (x,y)
			EndIf

		EndIf

	Else

		Select Dessin_operation

			Case DESSIN_REMPLIR

				If Pointeur_tester() = TRUE

					Local Dessin_couleur_fond as Integer

					If GetMemBlockExists(Dessin_modele_memBlock) = TRUE
						DeleteMemblock (Dessin_modele_memBlock)
					EndIf

					Dessin_modele_memBlock = CreateMemBlockFromImage (Dessin_ecran_image)
					Dessin_couleur_fond = Dessin_modele_GetPixel ( Dessin_modele_memBlock, 0, 0, DESSIN_LARGEUR_IMAGE ) // Grab first pixel and set the colour as background colour, this will not be a black line on the pic
					Dessin_modele_remplir(Dessin_stylo.Rouge,Dessin_stylo.Vert, Dessin_stylo.Bleu)
					Dessin_ecran_image = CreateImageFromMemBlock (Dessin_modele_memBlock)
					SetSpriteImage ( Dessin_ecran_sprite, Dessin_ecran_image )

				EndIf
			EndCase

			Case DESSIN_DESSINER


				If GetPointerState() = 1

					SetRenderToImage(Dessin_ecran_image,0)

					Local Dessin_couleur as Integer

					Dessin_couleur = MakeColor (Dessin_stylo.Rouge,Dessin_stylo.Vert, Dessin_stylo.Bleu)
					Dessin_ellipse (x,y,Dessin_stylo.Taille/2,Dessin_stylo.Taille/2, Dessin_couleur)

					SetRenderToScreen()

				EndIf

			EndCase

		EndSelect

	EndIf

EndFunction

Function Dessin_effacer_ecran()

	SetRenderToImage (Dessin_ecran_image,0)
	SetClearColor(255,255,255)
	ClearScreen()
	SetRenderToScreen()

EndFunction

Function Dessin_liberer_jeu()

	If GetMemBlockExists(Dessin_modele_memBlock) = TRUE
		DeleteMemblock (Dessin_modele_memBlock)
	EndIf

	SetSpriteDepth(Dessin_ecran_sprite,20)

	DeleteSprite (Dessin_sprite_outils)
	DeleteSPrite (Dessin_ecran_sprite)

	DeleteImage (Dessin_image_outils)
	DeleteImage (Dessin_ecran_image)

	DeleteSound (Dessin_son_enregistrement)
	DeleteSound (Dessin_son_outils)

	DeleteText (Dessin_texte_num_fichier)
	DeleteText (Dessin_texte_num_modele)

	DeleteText (Dessin_texte_message)

EndFunction

Function Dessin_ellipse(xc as Integer, yc as Integer, a as Integer, b as Integer, Color as Integer)

	// http://enchantia.com/graphapp/doc/tech/ellipses.html
	// McIlroy's algorithm

    /* e(x,y) = b^2*x^2 + a^2*y^2 - a^2*b^2 */

    Local x as Integer
    Local y as Integer
    Local width as Integer

    Local a2 as Integer
    Local b2 as Integer

	Local crit1 as Integer
	Local crit2 as Integer
	Local crit3 as Integer
	Local t as Integer

	Local dxt as Integer
	Local dyt as Integer

	Local d2xt as Integer
	Local d2yt as Integer

    x = 0
    y = b
    width = 1

    a2 = a * a
    b2 = b * b

    crit1 = -(a2/4 + mod(a,2) + b2)
    crit2 = -(b2/4 + mod(b,2) + a2)
    crit3 = -(b2/4 + mod (b,2))

    t = -a2 * y /* e(x+1/2,y-1/2) - (a^2+b^2)/4 */

    dxt  = 2 * b2 * x
    dyt  = -2 * a2 * y
    d2xt = 2 * b2
    d2yt = 2 * a2

    While y>=0 and x <= a

        If t + b2 * x <= crit1 or t + a2 * y <= crit3     /* e(x+1,y-1/2) <= 0 */  /* e(x+1/2,y) <= 0 */

            //Incx()
			x = x + 1
			dxt = dxt + d2xt
			t = t + dxt

            width = width + 2

        ElseIf t - a2*y > crit2  /* e(x+1/2,y-1) > 0 */

				DrawLine (xc-x, yc-y,xc-x + width, yc-y,Color, Color)

				If (y <> 0) Then DrawLine(xc-x, yc+y, xc-x+ width, yc+y, Color, Color)

				//Incy()
				y = y - 1
				dyt = dyt + d2yt
				t = t + dyt

        Else

            DrawLine (xc - x, yc - y, xc - x+ width, yc - y, Color, Color)

            If (y <> 0) Then DrawLine(xc - x, yc + y, xc - x + width, yc + y, Color, Color)

			// IncX
			x = x + 1
			dxt = dxt + d2xt
			t = t + dxt

            //Incy()
			y = y - 1
			dyt = dyt + d2yt
			t = t + dyt

            width = width + 2

        EndIf

    EndWhile

    If b = 0 Then DrawLine (xc - a, yc, xc - a + 2 * a + 1, yc, Color, Color)

EndFunction

Function Dessin_creer_fichier_donnees (Fichier as String)

	Local f as Integer

	Local Colonne as Integer
	Local Rangee as Integer

	Local Valeur as Integer

	Aller_dossier_jeux ("jeu02/modeles/")

	f = OpenToWrite (Chemin_externe + Fichier)

	WriteString (f, "--- Fichier données dessin hubibox ---")

	For Colonne=0 To DESSIN_LARGEUR_IMAGE

		For Rangee=0 To DESSIN_HAUTEUR_IMAGE

			Valeur = Dessin_modele_pixelStore[Colonne, Rangee]

			WriteInteger (f, Valeur)

		Next

	Next

	CloseFile (f)

EndFunction

Function Dessin_charger_fichier_donnees (Fichier as String)

	Local f as Integer

	Local Colonne as Integer
	Local Rangee as Integer

	Local Valeur as Integer

	Aller_dossier_jeux ("jeu02/modeles/")

	f = OpenToRead (Chemin_externe + Fichier)

	ReadString (f) // Rien

	For Colonne=0 To DESSIN_LARGEUR_IMAGE

		For Rangee=0 To DESSIN_HAUTEUR_IMAGE

			Valeur = ReadInteger (f)
			Dessin_modele_pixelStore[Colonne, Rangee] = Valeur

		Next

	Next

	CloseFile (f)

EndFunction

Function Dessin_charger_modele ()

	Local Dessin_couleur_fond as Integer

	Local Fichier_png as String
	Local Fichier_dat as String

	If Dessin_num_modele <=9
		Fichier_png = "modele_0" + Str(Dessin_num_modele) + ".png"
	Else
		Fichier_png = "modele_" + Str(Dessin_num_modele) + ".png"
	Endif

	Fichier_dat = ReplaceString (Fichier_png, ".png", ".dat",1)

	Aller_dossier_jeux ("jeu02/modeles/")

	If GetFileExists (Chemin_externe + "/" + Fichier_png)

	// set screen properties and images
		// picture is 1600 x 900 and has 2 colours for white background and black lines

		Dessin_ecran_image = LoadImageRaw ( Fichier_png )


		If GetMemBlockExists (Dessin_modele_memBlock) = TRUE
			DeleteMemBlock(Dessin_modele_memBlock)
		EndIf

		Dessin_modele_memBlock = CreateMemblockFromImage ( Dessin_ecran_image )

		Dessin_couleur_fond = Dessin_modele_GetPixel ( Dessin_modele_memBlock, 0, 0, DESSIN_LARGEUR_IMAGE ) // Grab first pixel and set the colour as background colour, this will not be a black line on the pic
		Dessin_couleur_fond  = 765 // equivalent blanc r=255,v=255,b=255


		// set display properties

		If GetFileExists (Chemin_externe + "/" + Fichier_dat)
			Dessin_creer_message ("Le fichier modèle '" + Fichier_png + "' est en cours de chargement...")
			Sync()
			Dessin_charger_fichier_donnees(Fichier_dat)
		Else
			Dessin_creer_message ("Veuillez patienter, le fichier modèle '" + Fichier_png + "' est en cours de post-traitement...")
			Sync()
			Dessin_modele_StoreFillPixels ( Dessin_modele_memBlock, DESSIN_LARGEUR_IMAGE,DESSIn_HAUTEUR_IMAGE, Dessin_couleur_fond )
			Dessin_creer_fichier_donnees (Fichier_dat)
		EndIf

		SetSpriteImage (Dessin_ecran_sprite, Dessin_ecran_image)

		Dessin_creer_message ("Le fichier modèle '" + Fichier_png + "' a été chargé")

	Else

		Dessin_creer_message ("Le fichier modèle '" + Fichier_png + "' n'a pas été trouvé !")
	EndIf

EndFunction

Function Dessin_modele_remplir (Rouge as Integer, Vert as Integer, Bleu as Integer)

	Local PixelCheck as Integer

	Local Alpha as Integer

	Local x as Integer
	Local y as Integer

	x = GetPointerX()
	y = GetPointerY()

	while GetPointerReleased()=0
		Sync()
	Endwhile

	// Checks pointer is in the main screen area to fill picture

	If x >= 0 and x <= DESSIN_LARGEUR_IMAGE and y >= 0 and y <= DESSIN_HAUTEUR_IMAGE

		// Checks the pixel Array at the pointer location
		Pixelcheck = Dessin_modele_PixelStore [ x+1, y+1 ]

		// If this location contains a black line then ignore the fill as don't want to fill in the black lines
		// If location is the background then colour the area with a random colour but not transparent re Alpha

		If Pixelcheck <> 0

			Alpha = 255

			Dessin_modele_FloodFill ( Dessin_modele_memBlock, x, y, DESSIN_LARGEUR_IMAGE, DESSIN_HAUTEUR_IMAGE, Rouge, Vert, Bleu, Alpha )

		Endif

	Endif

EndFunction

Function Dessin_modele_StoreFillPixels ( MemBlockInput as Integer , Largeur_image as Integer , Hauteur_image as Integer , Couleur_fond as Integer)

	// grab Memory Block pixels into an array from screen to store each fill area as a seperate value
	// This fills the Array values to zero's

	Local x as Integer
	Local y as Integer

	Local i as Integer

	Local newFillAreaRow as Integer
	Local FillAreaNum as Integer
	Local newColour as Integer
	local oldColour as Integer
	Local RowsAgain as Integer
	Local ColumnsAgain as Integer

	Local Rangees as Integer
	Local Colonnes as Integer

	Local Couleur_test as Integer

	Local Couleur_dessus as Integer
	Local Couleur_gauche as Integer

	For y = 0 to Hauteur_image
		For x = 0 to Largeur_image

			Dessin_modele_PixelStore [ Largeur_image, Hauteur_image ] = 0
		Next
	Next

	For i = 0 To 20000

		Dessin_Modele_pixelStoreStack [ i ] = 0

	Next

	newFillAreaRow = 0

	/*
	This For/Next routine checks every pixel in the memBlock and also checks the pixel
	above and to the left for areas to fill with numbers.
	This creates an Array with numbers similar to a Picture By Numbers card.
	I use this method instead of flood fill on the fly for speed of colouring
	otherwise it is too slow.
	*/

	For Rangees = 1 to Hauteur_image

			Dessin_creer_message ("Veuillez patienter est en cours de post-traitement : " + Str ( (Colonnes-1) + (Rangees-1) * DESSIN_LARGEUR_IMAGE) + "/" + Str(DESSIN_HAUTEUR_IMAGE * DESSIN_LARGEUR_IMAGE) )
			Sync()

			For Colonnes = 1 to Largeur_image

			// Sets Couleur_test to pixel value at co-ords in the memBlock

			Couleur_test = Dessin_modele_GetPixel ( memBlockInput, Colonnes-1, Rangees-1, Largeur_image )

			// If the Couleur_test is equal to the background colour Couleur_fond then find fill area (zero is a black line so will leave Array value as zero)

			If Couleur_test = Couleur_fond

				// Sets pixels above and left to zero incase rows and columns are at the edge of the screen

				Couleur_dessus = 0
				couleur_gauche = 0

				// Checks for edge of screen

				If Rangees > 1 Then Couleur_dessus = Dessin_modele_PixelStore [ Colonnes, Rangees - 1 ]
				If Colonnes > 1 Then Couleur_gauche = Dessin_modele_PixelStore [ Colonnes - 1 , Rangees ]



				If Couleur_dessus = 0 and Couleur_gauche = 0

					NewFillAreaRow = NewFillAreaRow + 1
					FillAreaNum = NewFillAreaRow
					Dessin_modele_PixelStoreStack [ newFillAreaRow ] = Rangees

				Else
					If Couleur_gauche <> 0 and Couleur_dessus <> 0
					If Couleur_gauche = Couleur_dessus
						FillAreaNum = Couleur_gauche
				Else
					newColour = Couleur_dessus
					oldColour = Couleur_gauche

				/*
				The below For/Next Stack:
				Checks rows/columns for new fill area number that
				has been created and if this area is not enclosed
				with a black line changes these numbers to the correct
				fill area number
				*/

				For rowsAgain = Dessin_modele_pixelStoreStack [ oldColour ] to Rangees
					For columnsAgain = 1 to Largeur_image
						If Dessin_modele_pixelStore [ columnsAgain, rowsAgain ] = oldColour
							Dessin_modele_pixelStore [ columnsAgain, rowsAgain ] = newColour
							If rowsAgain < Dessin_modele_pixelStoreStack [ newColour ] Then Dessin_modele_PixelStoreStack [ newColour ] = rowsAgain
						Endif
					Next
				Next

				FillAreaNum = newColour

				Endif
				Else
					FillAreaNum = Couleur_gauche + Couleur_dessus
				Endif

				Endif
				// Sets a fill area value to the pixelStore Array - This Array is the same size as the colouring screen
				Dessin_modele_pixelStore [ Colonnes, Rangees ] = FillAreaNum

			Endif

		Next
	Next

Endfunction

Function Dessin_modele_GetPixel ( MemBlockIn as Integer, x as Integer, y as Integer, Largeur as Integer )

	// function to obtain colour value (RGB) and Alpha value if needed of each pixel in the memory block

	/*
	I add the values for RGB together and return this value as one integer as I do not
	need seperate values to check my fill areas for the Array in pixelStore, I only
	need to check for the values of the background and the black lines in my
	image to colour

	*/

	Local PixelColourRGB as Integer

	Local Rouge as Integer
	Local Vert as Integer
	Local Bleu as Integer
	Local Alpha as Integer

	Local OffsetPixel as Integer

	OffsetPixel = 12 + (( x + ( y * Largeur )) * 4 )

	Rouge = GetMemBlockByte ( MemBlockIn, OffsetPixel )
	Vert = GetMemBlockByte ( MemBlockIn, OffsetPixel + 1 )
	Bleu = GetMemBlockByte ( MemBlockIn, OffsetPixel + 2 )
	Alpha = GetMemBlockByte ( MemBlockIn, OffsetPixel + 3 )

	PixelColourRGB = Rouge + Vert + Bleu

Endfunction PixelColourRGB

Function Dessin_modele_FloodFill ( MemBlockIn as Integer, x as Integer, y as Integer, Largeur as Integer, Hauteur as Integer, Rouge as Integer, Vert as Integer, Bleu as Integer, Alpha as Integer)

	// Function to fill area with colour inside the memblock
	/*
	This checks the area of the image at the x/y co-ords where the pointer is and
	stores this value in pixelcheck.
	It then checks the full Array of pixelStore for the image and stores a new
	RGBA value to the memBlock at the location on the Array with the same value
	as in pixelcheck, thus filling the numbered area like colour by numbers card.
	*/

	Local Rangee as Integer
	Local Colonne as Integer
	Local PixelCheck as Integer
	Local OffsetPixel as Integer

	PixelCheck = Dessin_modele_PixelStore [ x+1, y+1 ]

	For Rangee = 1 To Hauteur
		For Colonne = 1 To Largeur

			If Dessin_modele_pixelStore [ Colonne, Rangee ] = Pixelcheck

				OffsetPixel = 12 + (( (Colonne-1) + ( ( Rangee-1) * Largeur )) * 4 )

				SetMemblockByte( MemBlockIn, OffsetPixel, Rouge )
				SetMemblockByte( MemBlockIn, OffsetPixel+1, Vert )
				SetMemblockByte( MemBlockIn, OffsetPixel+2, Bleu )
				SetMemblockByte( MemBlockIn, OffsetPixel+3, Alpha )

			Endif
		Next
	Next

Endfunction

Function Dessin_AttrapperCouleur(X as integer,Y as Integer)

	Local Couleur as Dessin_stylo_type
	Local Mem as Integer
	Local Largeur as Integer
	Local xx as Integer
	Local OffsetPixel as Integer

	Largeur = GetImageWidth (Dessin_image_outils)

    Mem = createMemblockfromImage(Dessin_image_outils)

    xx = x - GetSpriteX (Dessin_sprite_outils)


	OffsetPixel = 12 + (( xx + ( y * Largeur )) * 4 )

	Couleur.Rouge = GetMemBlockByte ( Mem, OffsetPixel )
	Couleur.Vert = GetMemBlockByte ( Mem, OffsetPixel + 1 )
	Couleur.Bleu = GetMemBlockByte ( Mem, OffsetPixel + 2 )

    Deletememblock(Mem)

    Dessin_stylo.Rouge = Couleur.Rouge
    Dessin_stylo.Vert = Couleur.Vert
    Dessin_stylo.Bleu = Couleur.Bleu

EndFunction

//-------------------------------------------------------------------------------------------------------------------------
//
//	PROGRAMME
//
//-------------------------------------------------------------------------------------------------------------------------

Function Jouer_jeu_deux()

	Charger_jeu_dessin()

	Pointeur_vider()

	Dessin_etat_jeu = JEU_DEBUT_NIVEAU

	Repeat

		Dessin_jouer()

		If GetRawKeyPressed(27)
			Ecrire_dans_journal ("Fin du programme, sortie par touche ECHAP.")
			End
		EndIf

		Pointeur_afficher()

		Sync()

		If GetRawKeyPressed (TOUCHE_CAPTURE_ECRAN)
			Capturer_image_ecran()
		EndIf

	Until Dessin_etat_jeu = JEU_QUITTER

	Dessin_liberer_jeu()

EndFunction

//-------------------------------------------------------------------------------------------------------------------------
//
//	FIN DE PROGRAMME
//
//-------------------------------------------------------------------------------------------------------------------------

Attachments

Login to view attachments

Back to top

Profile PM

Sorry your browser is not supported!

AppGameKit Classic Chat / [SOLVED] Color selection from image palette

Attachments

Attachments
