3 Dimensional Chat / Reduce polygons in FPSC characters

Author
Message
BraindeaD
16
Years of Service
User Offline
Joined: 30th Mar 2008
Location:
Posted: 28th Nov 2019 19:18
Link
Hi all,
I'm doing a little 3d game with AppGameKit 2 using some 3d characters from FPSC. FPSC characters are really nice but it has too much polygons and, if I have several enemies the polygons drawn increases a lot. I'd like that the game could be played in a low end PC or android phone. So, the question is: is there any way (routine/program/etc) that can reduce the number of polygons of the FPSC model preserving the animations?

Thanks in advance.
Best regrads
Back to top
Profile PM
SolaraV
4
Years of Service
User Offline
Joined: 6th Dec 2019
Location:
Posted: 11th Dec 2019 17:13
Link
You could drive a low poly character with that characters animations, but it's not feasible to try to delete polygons, and then reseal the mesh. Do you realize how many faces there are in a low poly dude or dudette? First practice removing polys on something simple, like a cube, then you will understand exactly what you are asking for. You can, but It's not going to be fun
Back to top
Profile PM Website
BraindeaD
16
Years of Service
User Offline
Joined: 30th Mar 2008
Location:
Posted: 11th Dec 2019 18:59 Edited at: 11th Dec 2019 18:59
Link
Hi, SolaraV.
Thanks for your answer, yes, it looks really hard and bored doing it by hand. I am a very bad modeller.
I'll try to see how many models I can have in screen without raletizations and adapt the gameplay a bit in order to get it.

Thanks
Back to top
Profile PM
SolaraV
4
Years of Service
User Offline
Joined: 6th Dec 2019
Location:
Posted: 11th Dec 2019 19:18
Link
Hold up, I just realized that there's an automated solution to this...
Someone already did the hard part for us:
3ds:
http://mycreativedaddy.com/how-to-reduce-polygon-count-in-3ds-max-easily/
Blender:
https://m.all3dp.com/2/blender-how-to-reduce-polygons/
Back to top
Profile PM Website
BraindeaD
16
Years of Service
User Offline
Joined: 30th Mar 2008
Location:
Posted: 12th Dec 2019 05:20
Link
Hey! thank you, SolaraV.
I'll try to use, mainly blender method. A few days ago, I tried to reduce the polys with fragmotion but it doesn't work for me (or I don't know how use it correctly), so I'll try with Blender.
Thanks for you help.
Back to top
Profile PM
SolaraV
4
Years of Service
User Offline
Joined: 6th Dec 2019
Location:
Posted: 12th Dec 2019 08:12 Edited at: 12th Dec 2019 08:14
Link
Happy to help!

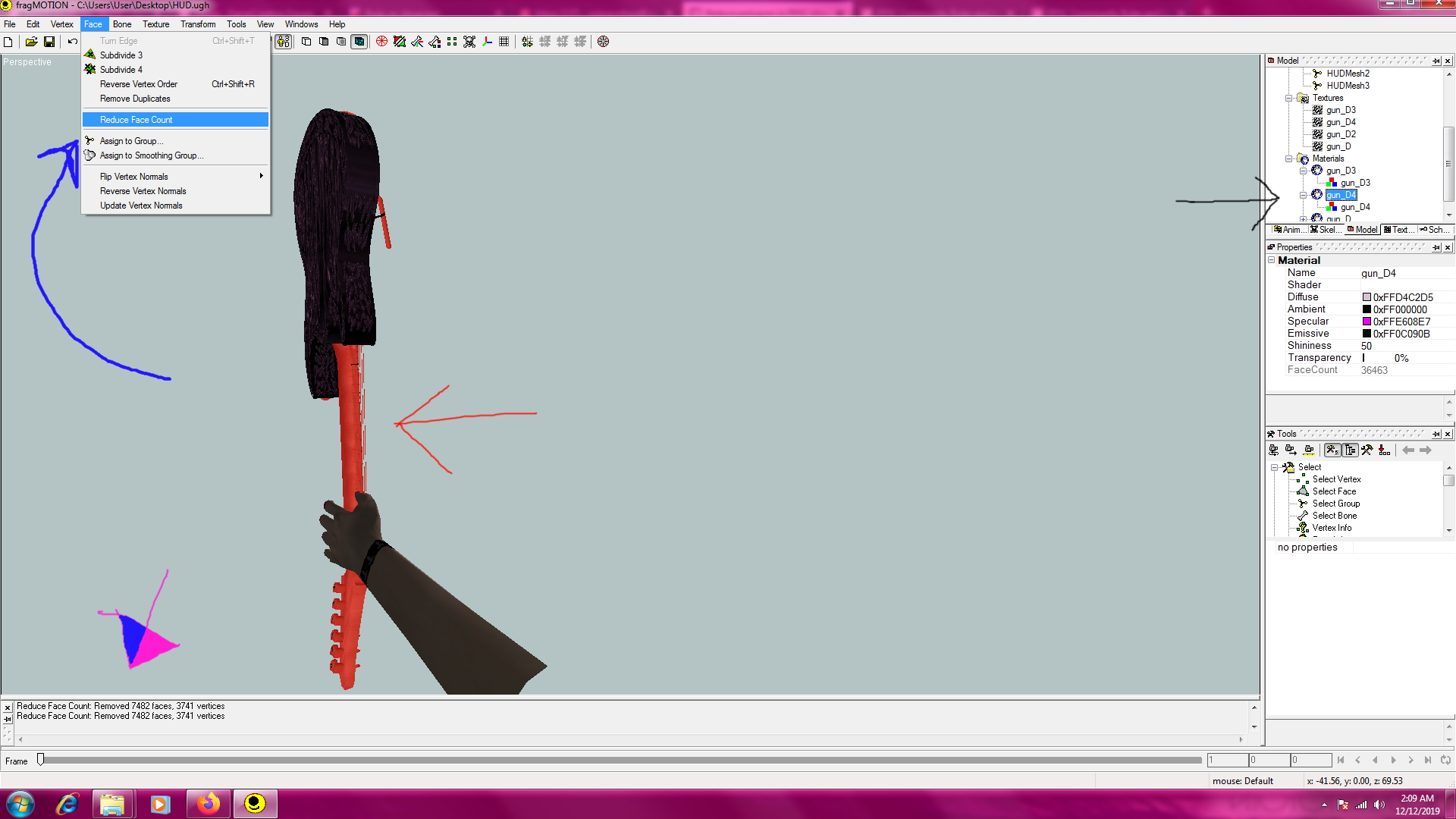

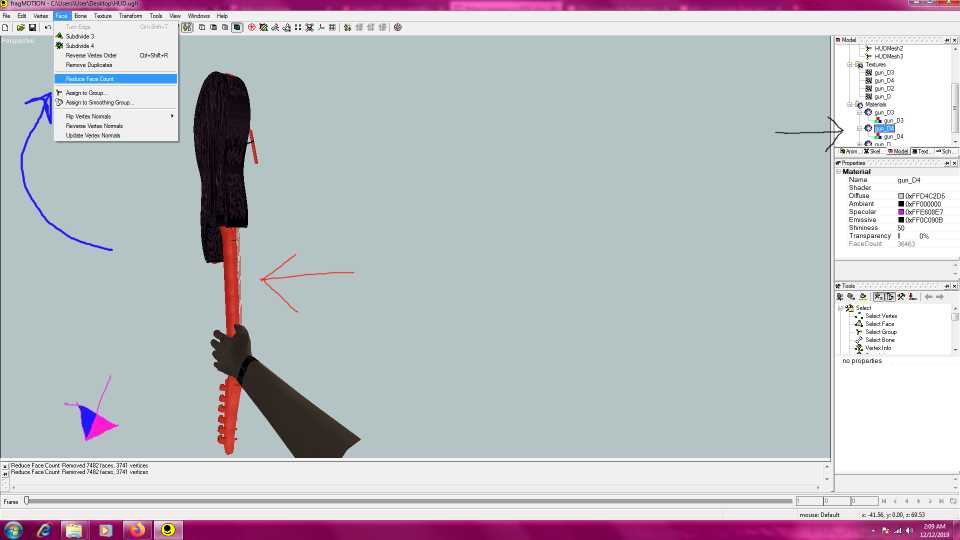

In fragmotion select the mesh from the tree by double clicking it, the mesh should turn red, and then click "Face" from toolbar,
Then select "reduce face count
set any max angle greater than your maximum vertices angle that is present before the reduction and hit ok,
, then at the bottom output window it will tell you how many vertices it removed
",

Attachments

Login to view attachments
Back to top
Profile PM Website
BraindeaD
16
Years of Service
User Offline
Joined: 30th Mar 2008
Location:
Posted: 13th Dec 2019 14:16
Link
Many thanks, SolaraV, I'll try again with Fragmotion as soon as I can.
Back to top
Profile PM
fubarpk
Retired Moderator
19
Years of Service
User Offline
Joined: 11th Jan 2005
Playing: AGK is my friend
Posted: 25th Dec 2019 21:09 Edited at: 25th Dec 2019 21:28
Link
https://www.turbosquid.com/ for free models
There are plenty of low poly models out there that are free to use
the problem I found was finding animated low poly models until
https://www.mixamo.com/#/ which is great for animating
character models
refer to this thread for instructions
https://forum.thegamecreators.com/thread/224613

Reducing polygons is a skill in itself and is best thought about before you start the model
MerryChristmas Everyone
fubarpk on Itch...………...https://fubarpk.itch.io/
fubarpk on googleplay..https://play.google.com/store/apps/developer?id=fubarpk
Back to top
Profile PM Email Website
xilith117
14
Years of Service
User Offline
Joined: 1st Nov 2009
Location:
Posted: 18th Jan 2020 17:33
Link
I would import the .x file into blender and use the "Decimate tool" to lower poly count. Then you just export it as a .x file again. I hope this helps!
Check out my website!
Back to top
Profile PM Website
