Hi, guys,

I was often asked if I could include some Windows controls in my file explorer plugin. I was of the opinion that the effort is too big to make it available to only one system (Windows). So I searched for other possibilities.

Now AGK-Studio uses ImGui for their IDE as far as I know. This is a very powerful GUI interface. I think the latest hints from TGC suggest that they will include it in AppGameKit. The way it sounded only for the STUDIO version. But what I didn't like about ImGui is the fact that it can't use skins. I mean replacing buttons and other controls with images. While searching for other libraries I stumbled upon Nuclear. This is also a so called 'immediate mode graphical user interface' I don't think it's as powerful as 'Dear ImGui' but it's easier to integrate and you can use your own skins. I think this makes sense for AppGameKit. So you can create and use atmospheric skins for games.

The difference between Event-Based-GUI's and the Immediate Mode-GUI's is very big. This required some rethinking for me. It has its pitfalls and certainly its advantages. Because of the architecture of AppGameKit compared to Nuklear, I haven't been able to move all functions from Nuklear to AGK.
I am not ready to provide this plugin yet. But I have already achieved a lot. Here I show you some GIF's, what is possible with it at the moment. The plugin will be available for Windows and Linux for now.

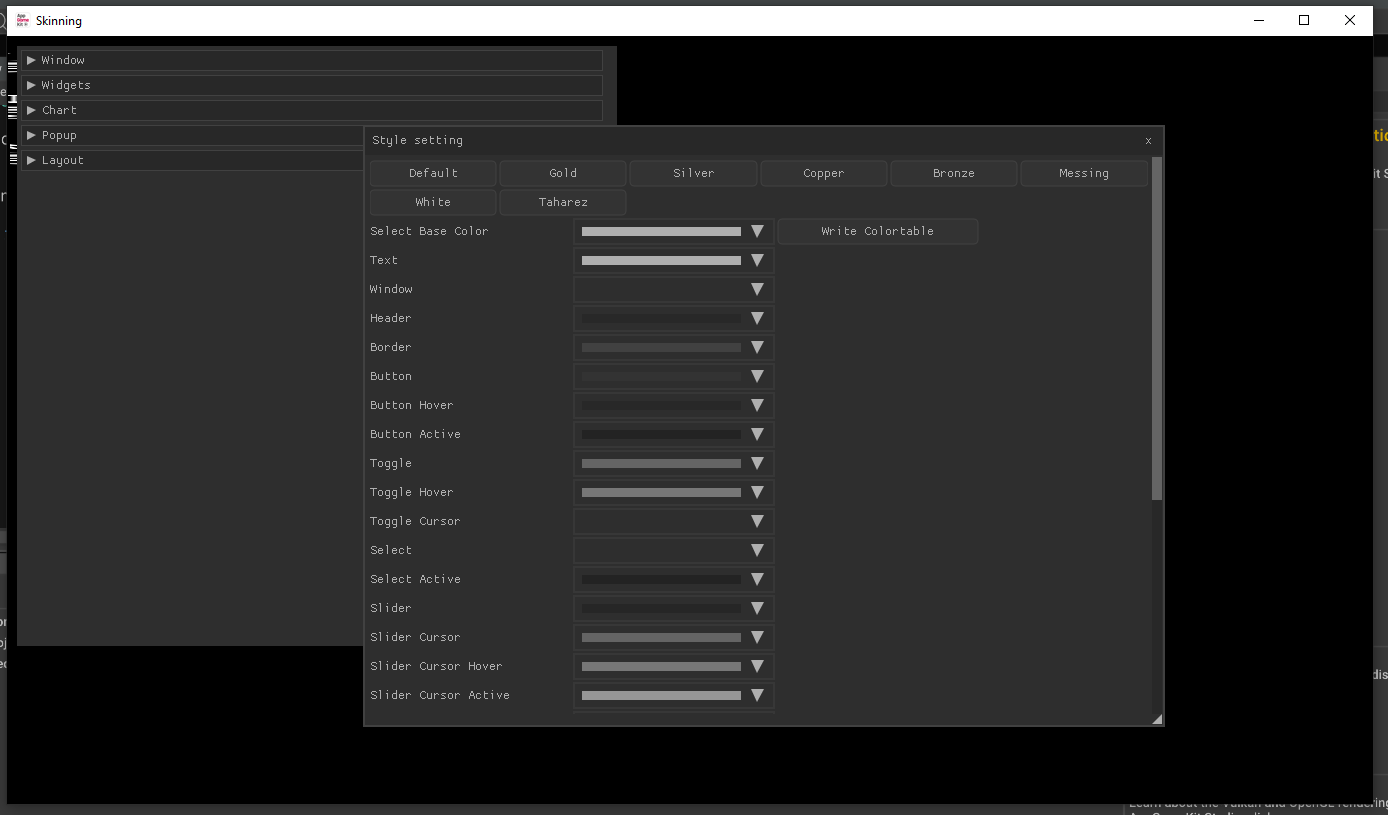

First you can see the style/skinning demo here. The TaharezLook Skin I took from CEGUI. But it was designed by Lars Rinde. Thanks for that . I only added one or two objects.
The skinning properties of Nuklear were kept very basic. I pimped that a bit for AGK. You can change the skinning either in the program or via an XML file. Nuklear only stretched the included images and so the buttons looked a bit distorted. I gave the engine a so-called 9-patch image. That means the images can now be provided with state edges (top, bottom, left, right).



This gif shows what nuclear could look like in the game. I designed the controls myself. Excuse my artistic skills are not that high. Graphically, there is certainly more to be gained.



Finally, I will show you two standard dialog boxes. There are only two at the moment. A MessageBox and a file selector box. Both can be customized with flags. The fileselection box for example is used to select files which can be loaded or saved. But you can also customize it to select folders.



I'd like to know what you think about that. Should I keep at it? Or is it all nonsense since STUDIO provides a GUI anyway. I'm also open for suggestions and ideas.
