Serial Packet Data Plugin for protocol development

Author

Message

Yeshu777

4

Years of Service

User Offline

Joined: 26th Feb 2020

Location: Cymru

Posted: 24th Jun 2023 01:23

Link

Hi All,

I've developed a rather simple Plugin that allows you to send raw bytes, or an array of bytes ( eg. a command packet ) down the serial port.

It's purpose is for low level protocol development, rather than sending strings as per SerialPlugin.

If it's of use to anyone I'm happy to share.

Back to top

Profile PM

Virtual Nomad

Moderator

18

Years of Service

User Offline

Joined: 14th Dec 2005

Location: SF Bay Area, USA

Posted: 24th Jun 2023 01:43 Edited at: 24th Jun 2023 01:49

Link

i know nothing about protocol development but assuming that THIS is the SerialPlugin you referenced?

meanwhile, as this is in Showcase, you should share or showcase something more than a description? ie, feel free to attach the dll (and i'll fit it into the first post HERE). i'm sure someone would appreciate it

btw, this one's different in that it can send bytes vs strings? again, i don't know anything about this stuff but trying to understand what differentiates this from the TGC plugin. if/when i do reference this in the directory, would "Byte-sized Serial Plugin" be a good description?

AGK Resource Directory
Made with AppGameKit on Itch.io
VN @ itch.io | AGK Jam HQ
Some Snippets

Back to top

Profile PM Website

Yeshu777

4

Years of Service

User Offline

Joined: 26th Feb 2020

Location: Cymru

Posted: 24th Jun 2023 12:49 Edited at: 26th Jun 2023 10:16

Link

Hi VM,

It's different to SerialPlugin as this only sends strings.

eg. try sending the byte value 0x00 with SerialPlugin.. not a lot happens.

This plugin will allow you to send a packet of hex / decimal / byte values

So in essence, you could send [ 0, 0, 1, 253, 2 ] via the serial port..

And yes, I've posted in the wrong forum!

Too many late nights

Back to top

Profile PM

335600330

User Offline

Joined: 25th Jul 2023

Location:

Posted: 25th Jul 2023 13:43

Link

Dear Ye

Could you please share your serial plugin to me? I confused “string “ problem so much.

Thank you so much.

335600330gfk@gmail.com

Back to top

Profile PM

Yeshu777

4

Years of Service

User Offline

Joined: 26th Feb 2020

Location: Cymru

Posted: 2nd Sep 2023 12:22

Link

Hi!

Didn't get a notification of your response, happy to share my byte version

Back to top

Profile PM

Yeshu777

4

Years of Service

User Offline

Joined: 26th Feb 2020

Location: Cymru

Posted: 23rd Sep 2023 14:37 Edited at: 23rd Sep 2023 19:10

Link

This post has been marked by the post author as the answer.

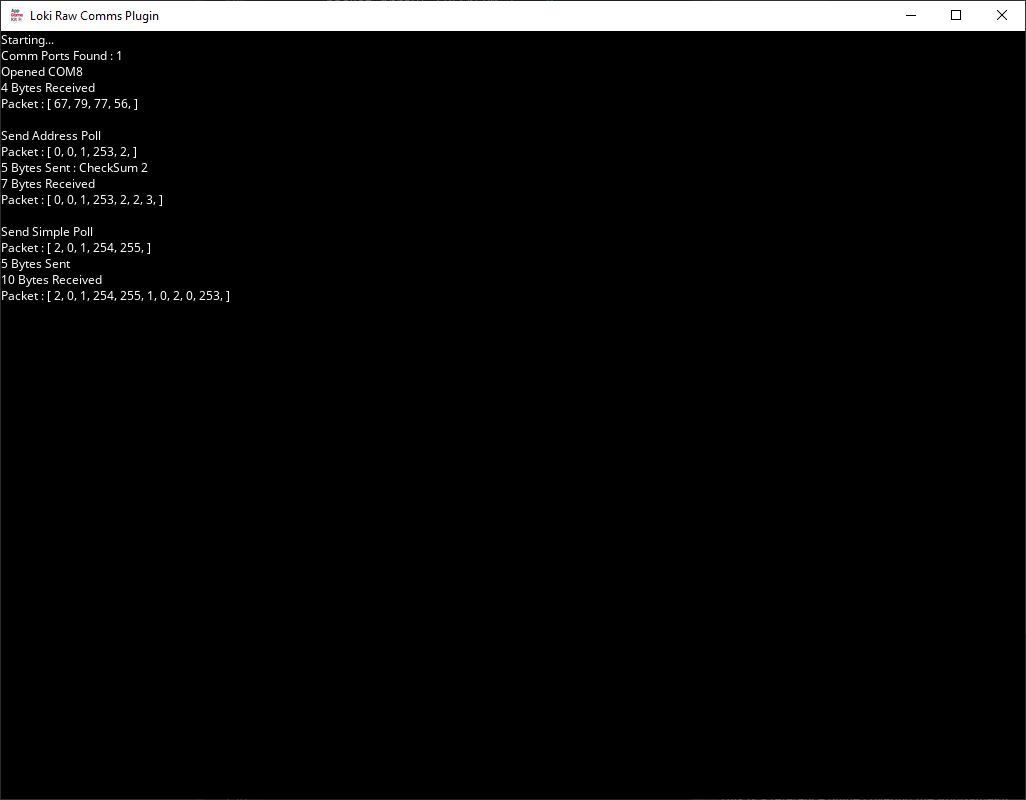

Low Level Serial PlugIn

Hi All,

Here's a simple 'low-level' serial plugin for all to use, at present I've only compiled the DLL for Windows64.

It differs from SerialPlugin as it's sending RAW bytes not strings, so can be used for talking to Arduino's, Raspberry Pi's etc.

eg..

If you want to send a packet like an address poll..

[ destination address, nof bytes, host address, command, checksum ]

[ 0, 0, 1, 254, 2 ] ( decimal / hex )

Usage and Commands:

+ Code Snippet

#import_plugin LokiPlugin as loki_port

Basic COM handling..

get_nof_ports( max_ports as Integer )
open_com_port(  "COM8", 9600, TRUE or FALSE )
close_com_port( TRUE or FALSE to clear rx & tx buffers )

Buffer Handling..

clear_rx_buffer( )
clear_tx_buffer( )


get_rx_byte( offset into rx_buffer )
set_tx_byte( offset into tx_buffer )

/*-- Anything recieved? --*/

is_byte_available( )

reutrns nof bytes available as Integer

/*-- Read nof bytes from COM Port into Rx_Buffer --*/

read_nof_bytes_in( nof_bytes as Integer )

// return number of bytes written as Integer

read_byte( )

// return the byte value as a Integer

/*-- Write nof bytes from Tx_Buffer to COM Port --*/

write_nof_bytes_out( nof_bytes as Integer )

// return number of bytes written as Integer

write_byte( byte to send )

// return number of bytes written as Integer ( in this case 1 on success, 0 on fail )

Attachments

Login to view attachments

Back to top

Profile PM

blink0k

Moderator

11

Years of Service

User Offline

Joined: 22nd Feb 2013

Location: the land of oz

Posted: 1st Oct 2023 01:10

Link

Added to List of Community-Developed Plugins in Showcase

Back to top

Profile PM

JDforce

19

Years of Service

User Offline

Joined: 27th Jul 2004

Location: Sea of Tranquility

Posted: 22nd Dec 2023 03:46

Link

Hi Yeshu777,
Do you have a version of the plugin for Raspberry Pi?

Let's go to Mars

Back to top

Profile PM Email

Yeshu777

4

Years of Service

User Offline

Joined: 26th Feb 2020

Location: Cymru

Posted: 23rd Dec 2023 16:49 Edited at: 23rd Dec 2023 16:51

Link

Hi,

I'll take a look at it.

At present I use a simple c program I wrote, opens the COM port and acts as a go between AppGameKit and the system.

You can then call it via RunApp from AppGameKit, admittedly it was a quick fix solution, worked - so left it as is.

It'll send whatever you pass as variables.

This was to talk to an Arduino Nano / Mega whatever.. see the following :

+ Code Snippet


function nano_ResetBoard( )

	RunApp( "sudo", "./dtr.sh" )

	poll_app_count = 0
	kill_app_count = 0

endfunction

function nano_CheckIfConnected( )

	nano_present = FALSE

	// Remove Last Buffer
	if( GetFileExists( NANO_FILE_PATH ) > 0 )

		DeleteFile( NANO_FILE_PATH)

	endif

	RunApp( "loki", "?" )

	Sleep( 500 )

	if( GetFileExists( NANO_FILE_PATH ) > 0 )

		buffer_file_ptr = OpenToRead( NANO_FILE_PATH )

		if( GetFileSize( buffer_file_ptr ) >= BUFFER_SIZE )

			last_buffer_mem = ReadString( buffer_file_ptr )

		endif

		CloseFile( buffer_file_ptr )

		DeleteFile( NANO_FILE_PATH )

		nano_present = TRUE

	endif

endfunction

Yeshu777
