FPSC Classic Models and Media / My new PIG model has problems

Author
Message
X Games
18
Years of Service
User Offline
Joined: 8th May 2007
Location: World Wide Web
Posted: 28th Dec 2008 17:02 Edited at: 28th Dec 2008 17:02
Link
I have spent days on this and now hit a problem, i'm using MS3D, see image for my problem!




I have added vertex to mostly build this pig and ithink i have built the face the wrong way but should this not show in ms3d?

Anyone know of a way to fix it without starting again?

Attachments

Login to view attachments
Back to top
Profile PM Email Website
Seth Black
FPSC Reloaded TGC Backer
20
Years of Service
User Offline
Joined: 22nd Feb 2005
Location: Pittsburgh, PA
Posted: 28th Dec 2008 17:09 Edited at: 28th Dec 2008 17:12
Link
...since you created this model from scratch, can't you just reverse the faces in question?

It'd take some time, but shouldn't be difficult to do...


Back to top
Profile PM
tjaabee
18
Years of Service
User Offline
Joined: 14th Apr 2007
Location: somewhere
Posted: 28th Dec 2008 17:09
Link
Hm... That's very strange... I think the faces not showing properly may be inverted, try fixing that in MS3D.

Best.

Yor mod has been erased by a signature. (Oops... something is wrong)
Back to top
Profile PM
X Games
18
Years of Service
User Offline
Joined: 8th May 2007
Location: World Wide Web
Posted: 28th Dec 2008 17:12 Edited at: 28th Dec 2008 17:13
Link

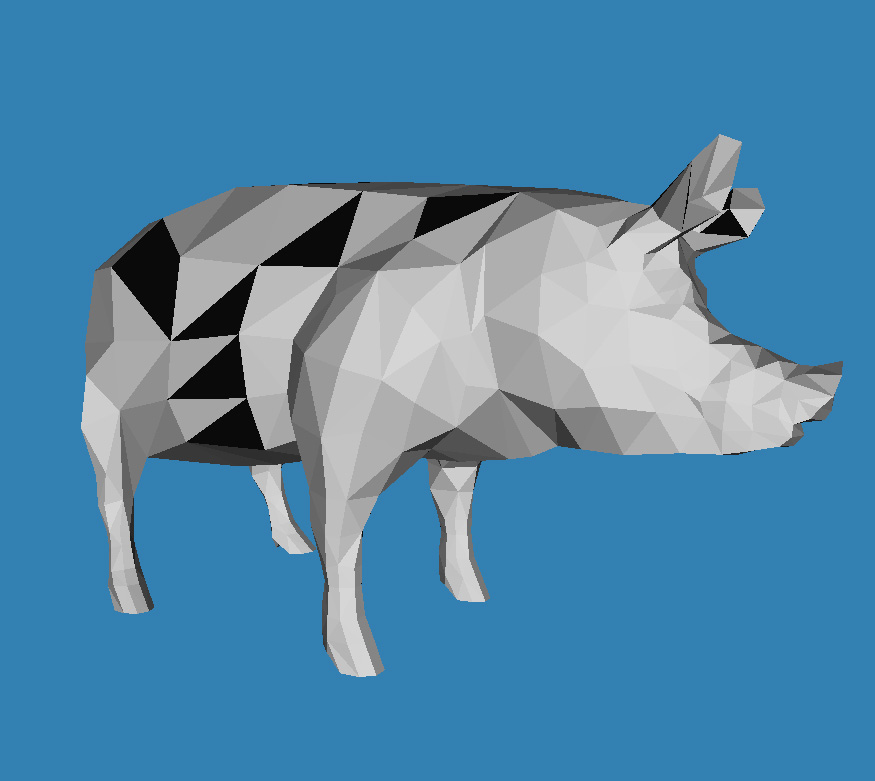

Damm just viewed model in flat shaded view, what can i do? Will i have to redo vertex face?

Attachments

Login to view attachments
Back to top
Profile PM Email Website
Disturbing 13
20
Years of Service
User Offline
Joined: 12th Apr 2005
Location: Murder Capital of the World
Posted: 28th Dec 2008 17:24 Edited at: 13th Jan 2009 06:57
Link
Just take your time and select each face not showing up(one at a time to avoid confusion) then at the top under the 'Face' option choose 'Reverse Vertex Order'. In the future its good to model with 'Draw Backfaces' unchecked in each window.Hope that helped.

Don't just say No it can't be done. Think outside the box.
Back to top
Profile PM Email
X Games
18
Years of Service
User Offline
Joined: 8th May 2007
Location: World Wide Web
Posted: 28th Dec 2008 17:46
Link
Quote: "under the 'Face' option choose 'Reverse Vertex Order'"


Thanks Disturbing 13 that fixed it
Back to top
Profile PM Email Website
darimc
18
Years of Service
User Offline
Joined: 19th Jan 2007
Location: Canada
Posted: 28th Dec 2008 18:03
Link
Or you could make it so that it doesn't select back faces, drag a selection box over the pig and reverse vertex order. Then the whole pig will be black, then make it so that you select back faces and select the whole pig and reverse vertex order.



Back to top
Profile PM
X Games
18
Years of Service
User Offline
Joined: 8th May 2007
Location: World Wide Web
Posted: 28th Dec 2008 18:18
Link
darimc i can't get that way to work or i don't understand
Back to top
Profile PM Email Website
Avid
17
Years of Service
User Offline
Joined: 24th Jun 2007
Location:
Posted: 28th Dec 2008 23:57
Link
That wouldn't quite work, as faces that are at an angle would also be selected. If it was a cube it would work that way. Best to do a manual fix, and try to avoid the problem in the first place in future.

Visit my site http://www.fpsmodels.com for models and media for fps creator.
Back to top
Profile PM Website
Ross tra damus
3D Media Maker
19
Years of Service
User Offline
Joined: 7th Jun 2006
Location: Looking to Escape London
Posted: 29th Dec 2008 11:49 Edited at: 29th Dec 2008 11:55
Link
Great pig model by the way.

I find it best to select and delete each offending face and recreate a new one 'in turn' (Do not forget to select the vertices after creating the new faces and weld together).
When doing this with a subject model such as yours its best to 'select and hide' all other vertices when recreating the new faces.

I hope this helps.

All the best of luck


EDIT: You may have to 'regroup' the new faces with the previous faces groups for the sake of the texture's application. Maybe 'Edit-refresh textures' afterwards.
Back to top
Profile PM
darimc
18
Years of Service
User Offline
Joined: 19th Jan 2007
Location: Canada
Posted: 29th Dec 2008 21:03
Link
Quote: "That wouldn't quite work, as faces that are at an angle would also be selected. If it was a cube it would work that way. Best to do a manual fix, and try to avoid the problem in the first place in future."
This actually doesn't happen. I do this with all of my models in milkshape, it works perfectly.



Back to top
Profile PM
dudemanking
16
Years of Service
User Offline
Joined: 13th Dec 2008
Location:
Posted: 29th Dec 2008 21:15
Link
whadda you need a pig for

(\__/)
(O.o )
(> < )Im listenin to Shake it by Metro Station right now
Back to top
Profile PM Email
Game Maker
17
Years of Service
User Offline
Joined: 27th Jul 2007
Location:
Posted: 29th Dec 2008 21:43
Link
Quote: "whadda you need a pig for"

I think it's for his game "Abattoir Nightmare".

http://gunn3rgames.net/forum/index.php?referredby=121
Download the free stuff.
Back to top
Profile PM
X Games
18
Years of Service
User Offline
Joined: 8th May 2007
Location: World Wide Web
Posted: 30th Dec 2008 13:10
Link
Quote: "Great pig model by the way."


Thanks

And thanks for everyones help i have it fixed now! I have re-done the ears and made the mesh a bit better! will show here soon.

Quote: "Quote: "whadda you need a pig for"
I think it's for his game "Abattoir Nightmare"."


Yes this is for my game ANX
http://forum.thegamecreators.com/?m=forum_view&t=139310&b=25

Once i have a full model that im happy with i will cut this up and make meat parts lol. Also i'm going to have a go at animateing it
Back to top
Profile PM Email Website
Toasty Fresh
18
Years of Service
User Offline
Joined: 10th Jun 2007
Location: In my office, making poly-eating models.
Posted: 31st Dec 2008 11:02
Link
Nice model, I like it.


http://gunn3rgames.net/forum/index.php?referredby=19
Back to top
Profile PM Email
ninja9578
17
Years of Service
User Offline
Joined: 25th May 2008
Location:
Posted: 31st Dec 2008 15:25
Link
I don't know the program that you are using, but doesn't it have an option to automatically calculate the outside normals? It should at least have a flip normals button somewhere, so that you don't have to reorder the vertices yourself.

Nothing is impossible
Back to top
Profile PM
dudemanking
16
Years of Service
User Offline
Joined: 13th Dec 2008
Location:
Posted: 31st Dec 2008 17:22
Link
when will your game be out me wanna play

(\__/)
(O.o )
(> < )Im listenin to Shake it by Metro Station right now
Back to top
Profile PM Email
Dar13
17
Years of Service
User Offline
Joined: 12th May 2008
Location: Microsoft VisualStudio 2010 Professional
Posted: 31st Dec 2008 21:47
Link
that looks like milkshape to me and it doesn't have an option to automatically calculate outside normals as far as i know...

I know not with what weapons WWIII will be fought but WWIV will be fought with sticks and stones-Albert Einstein
Back to top
Profile PM Email
X Games
18
Years of Service
User Offline
Joined: 8th May 2007
Location: World Wide Web
Posted: 13th Jan 2009 00:40 Edited at: 13th Jan 2009 00:43
Link
Quote: "that looks like milkshape to me "


yep it is!

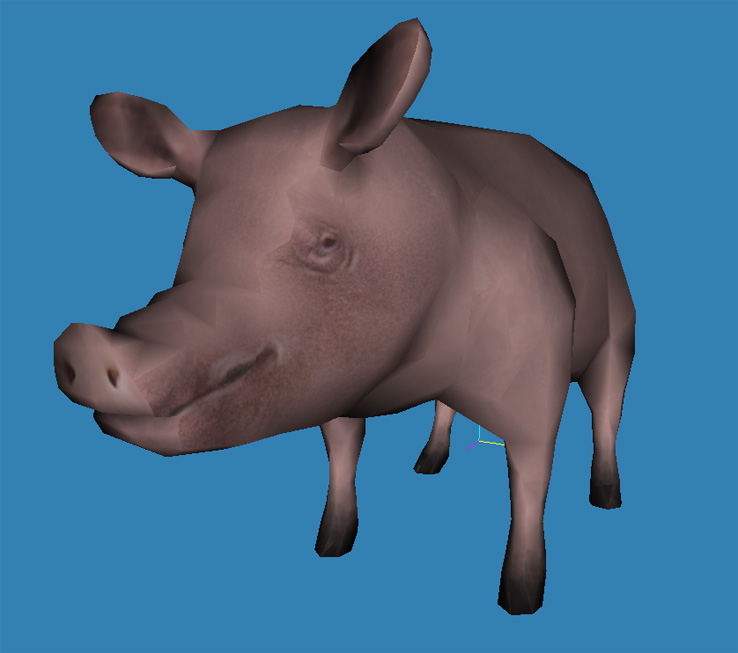

Update on perssy pig; i have given her new ears, re-done the UV map and texture.

NEXT i'm going to have a go at anim her, all i think i will do is have here stand still and just move the head, side to side and eating!



EDIT: starting to think this should have been in 3D chat, MOD your call!

Attachments

Login to view attachments
Back to top
Profile PM Email Website
Dar13
17
Years of Service
User Offline
Joined: 12th May 2008
Location: Microsoft VisualStudio 2010 Professional
Posted: 13th Jan 2009 00:42
Link
looks good!

I know not with what weapons WWIII will be fought but WWIV will be fought with sticks and stones-Albert Einstein
Back to top
Profile PM Email
Dr Parsnips
17
Years of Service
User Offline
Joined: 14th Jul 2007
Location: London
Posted: 13th Jan 2009 01:07
Link
Just as a quick tip, what i do is build it with the 3d port in flat shaded mode, and when ever i see a black face i select it (it is usually selected after it is made.) and i use the shortcut to reverse the vertex order. I think its ctrl shift f.....yeah i think it is. hope this helps

HMMMMMMM
Back to top
Profile PM Email Website
darimc
18
Years of Service
User Offline
Joined: 19th Jan 2007
Location: Canada
Posted: 13th Jan 2009 03:08
Link
I think I like the old texture better, but good work!
