Hey everyone,

I'm not sure if there is anyone that can help out, but for some reason the physics hinge can't seem to act properly, despite most values like the Vector3 for attaching the door to a separate door post cylinder being somewhat alright visually;



There's also another problem at play; I can offset the 3D model in my modelling software to get it to 'attach' more accurately, however that messes with the physics system not understanding which areas should be captured in a physics box for the object shape. As we do not have access to DynamicPolygon physics shapes, it seems I'm a bit screwed? I tried using ConvexHull for the physics shape, but that produces the effect in this video.

The doorway in the wall uses a polygonal physics collision box using SetObjectShapeStaticPolygon(objectid) and the other stuff uses Static physics shapes, except for the player. (Also, the player doesn't collide, the weird wiggle of the door happens even with the player completely some place else.
Back to top
Profile PM
PHeMoX
6
Years of Service
User Offline
Joined: 9th Jan 2018
Location:
Posted: 17th Feb 2018 17:12
Link
We really need PhysicsDebug tools....
Back to top
Profile PM
Stab in the Dark software
Valued Member
21
Years of Service
User Offline
Joined: 12th Dec 2002
Playing: Badges, I don't need no stinkin badges
Posted: 20th Feb 2018 20:22
Link
Please provide a code example.
The coffee is lovely dark and deep,and I have code to write before I sleep.
Back to top
Profile PM Email Website
PHeMoX
6
Years of Service
User Offline
Joined: 9th Jan 2018
Location:
Posted: 21st Feb 2018 01:04
Link
I had parts of it commented for now, as I seemed stuck with what I could reasonably do, but the code was basically this:



The thing that is important to note is how the wall with the hole for the door is actually also an object using a StaticPolygon physics shape (this is required otherwise you would not be able to move through the door way hole).

My guess is that the automatically created physics shape, that's polygonal, for the door, can't match the hole well enough for it to not 'be created' within the other physics object being the wall with the hole for the door.

The more I messed with the model itself, the less the rotation of the door in terms of it's axis made any sense. And the closer the values for positions would match, the more the door would glitch out as seen in the video.

Note: I am aware the door probably should be a physics object that has a box physics shape or maybe a convexhull to not have a static physics object do 'dynamic physics body' things, however literally the only way I can achieve a polygon-accurate physics shape that matches the door accurately (yes, even despite being basically just a simple box shape) is using SetObjectShapeStaticPolygon.

I would love to see the actual physics shape the engine generates for my model to be honest. because maybe there's something glitching there which shouldn't normally cause problems but somehow does. I do use MagickaVoxel to create models, which isn't quite 'clever' in how it merges the cubes you create with it. However, none of my other models made with that ever gave a problem. All of them are accurate down to the cube faces in terms of physics collisions using StaticPolygon where such a physics shape makes sense or in rare cases is required (think about physics collisions within a box or the hole of a window, or a kitchen sink thing that's also part of a wall).

Anyway, long story short, I am open to any and all suggestions. I kind of would love to implement a door like this in my game.
Back to top
Profile PM
PHeMoX
6
Years of Service
User Offline
Joined: 9th Jan 2018
Location:
Posted: 21st Feb 2018 01:06
Link
Another thing to note: I did test the same model whilst also having it scaled down to so small the generated physics shape should never instantly collide. This sadly still gave the same weird issue we're looking at in the video.
Back to top
Profile PM
Stab in the Dark software
Valued Member
21
Years of Service
User Offline
Joined: 12th Dec 2002
Playing: Badges, I don't need no stinkin badges
Posted: 21st Feb 2018 17:04
Link
First thing I notice is that you can not have your door be static.

Create3DPhysicsDynamicBody(door)
SetObjectShapeStaticPolygon(door)

Changing the Dynamic Body your door to a static physics objects is forbidden.
A Polygon collision shape can only be static. So you have changed your dynamic object to static.

Do this instead.

Create3DPhysicsDynamicBody(door)// This line by default creates a box collision shape.
SetObjectShapeConveHull(door)

If your modeling progam does not have your models centered about origin then
the primative collision shapes will be offset(i.e. box, sphere, cone, cylinder, capsule.
Except the convexhull shape and the Static polygon shape whic will be accurate.
The coffee is lovely dark and deep,and I have code to write before I sleep.
Back to top
Profile PM Email Website
PHeMoX
6
Years of Service
User Offline
Joined: 9th Jan 2018
Location:
Posted: 21st Feb 2018 17:52 Edited at: 21st Feb 2018 17:52
Link
Yes, however the video above is with the physics shape for the door already set to ConvexHull and that did not solve the issue. Needless to say I commented out StaticPolygon for that test, but seemed to have the same result.

Also, ConvexHull doesn't have the same effect for a physics shape as the staticpolygon shape does unfortunately. For example, I have a chair which ideal physics shape is essentially a square box physics shape for the legs and lower seat that's like half the size of my model and the upper seat area being a flat upright plane or box, right?

Well, using a ConvexHull physics shape creates a slope between the back of the chair and the actual seat making it impossible to make a character sit on the chair using the Bullet physics commands. That's why I do use StaticPolygon for some DynamicBody physics objects and with the right mass settings it does not go crazy.

Quote: "Changing the Dynamic Body your door to a static physics objects is forbidden.
A Polygon collision shape can only be static. So you have changed your dynamic object to static."


Right, but a static object would respond like door would. It needs to be a dynamic physics body.

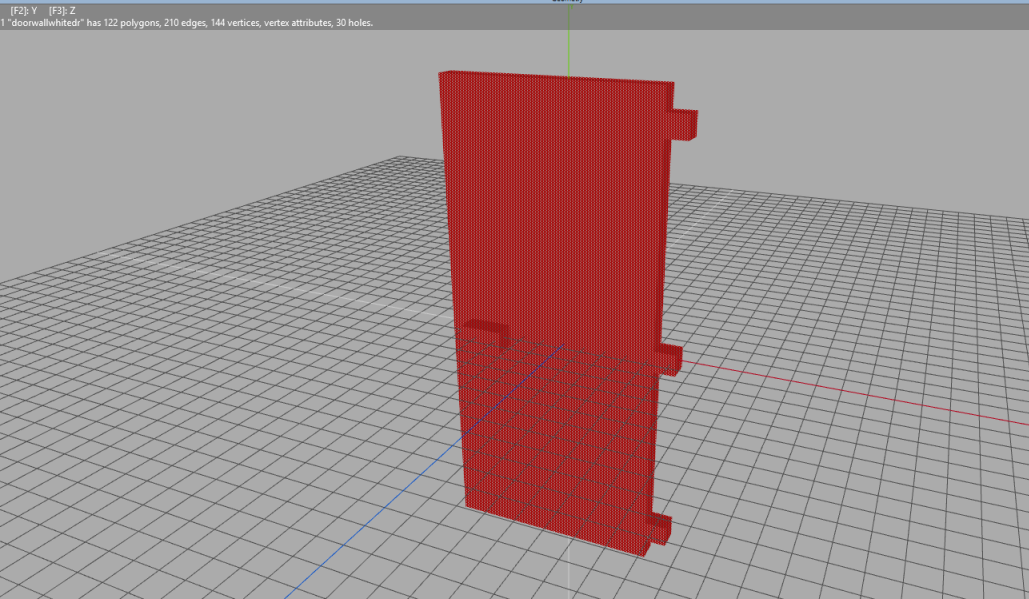

My model looks like this, which is really about as perfectly centered as can be:
