3 Dimensional Chat / AGK problem with X. files

Author
Message
Old Dude
19
Years of Service
User Offline
Joined: 10th Oct 2005
Location:
Posted: 18th Jul 2019 20:16
Link

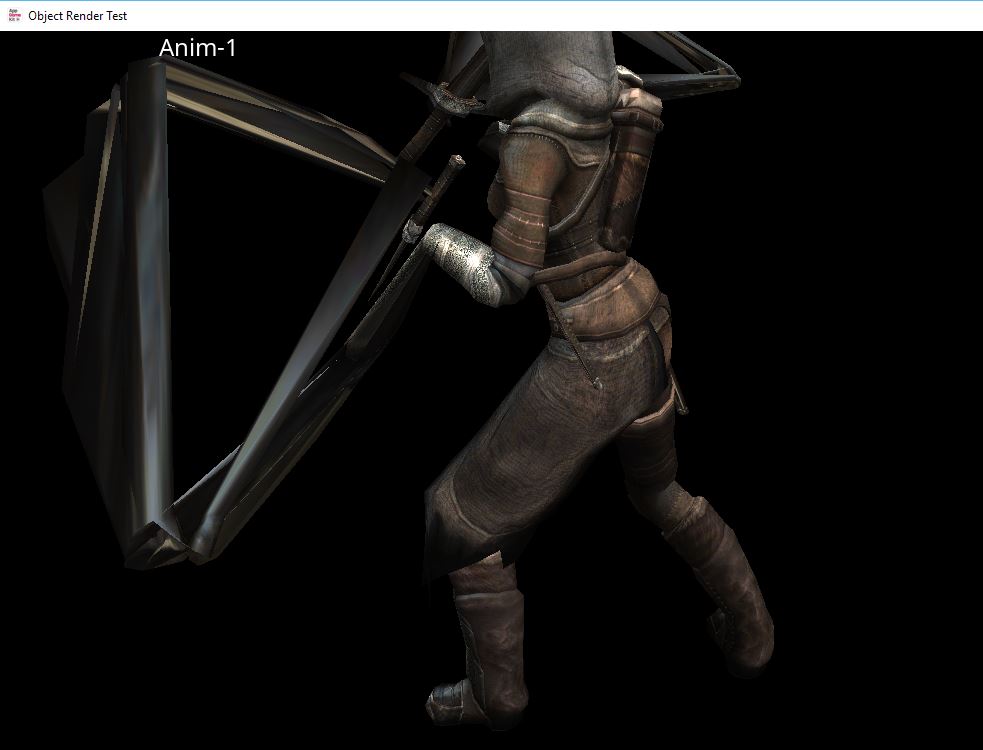

I've been going 3D and running into a problem with my models. They are fine in GG but they do weird things when I load them into AGK. I wanted to be sure it wasn't me so I loaded "Assassin.X" from thegamecreators and it had the same problems. As you can see, the wrists do not behave in AppGameKit, my model has the same problems with wrists and neck and ends up looking like ET. I was wondering if anybody else had a problem with models with bones in AppGameKit and what they might have done to fix these problems as they don't occur in either GG or my modeling software(s).

Thanks for any input!

Attachments

Login to view attachments
Back to top
Profile PM
Bored of the Rings
User Banned
Posted: 19th Jul 2019 20:12 Edited at: 19th Jul 2019 20:45
Link

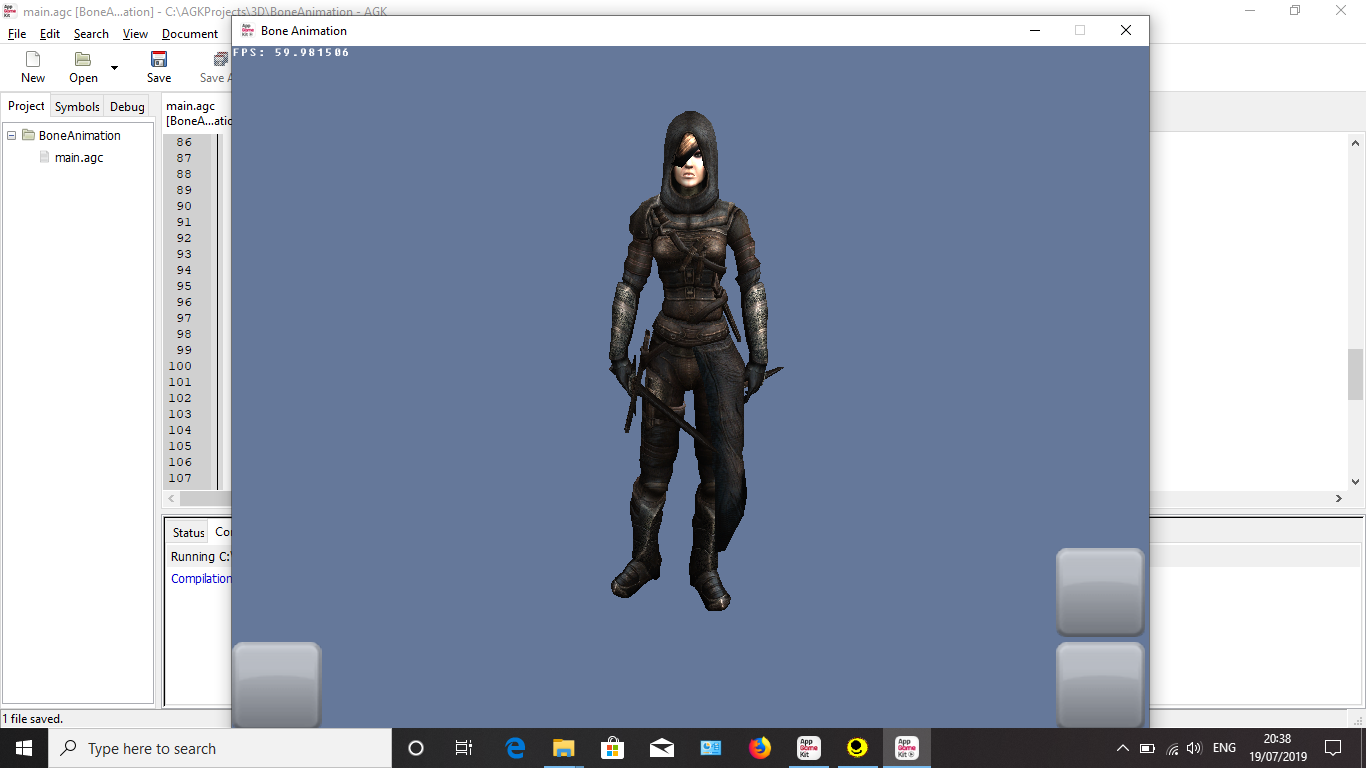

I have used Mender 2.0/Meshview/Fragmotion to correct these types of issues for Gameguru and AGK. This is usually bone weight problem. See pic below, where I used Fragmotion to load in the Assassin.X model and selected all, then chose validate weights and assignments under Bone menu. At the 'clean vertex assignments' window. I used the defualt settings and pressed ok. weights will be adjusted. then just export out, maybe rename the original X file. Loaded in AppGameKit and voila, all looks good.


.
Professional Programmer, languages: SAS, C++, SQL, PL-SQL, DBPro, Purebasic, JavaScript, others

Attachments

Login to view attachments
Back to top
Profile
Old Dude
19
Years of Service
User Offline
Joined: 10th Oct 2005
Location:
Posted: 20th Jul 2019 13:14
Link
Well, that's really interesting. I gave it a try and it worked flawlessly on the Assassin.X character, however it didn't work on my character, however, it is a really good place to start. I am going over all of my vertex assignments to see what I can find. Thank you for pointing this out. I am still confused as to why the models are fine in modeling programs and are fine with the import to GG but get all wonky in AppGameKit? Strange... but I will keep on it as AppGameKit is far more important to me than GG. Thanks for pointing me in this direction!
Back to top
Profile PM
Bored of the Rings
User Banned
Posted: 20th Jul 2019 14:52
Link
Could be down to animation bone rotation issues, bone weights, left and right handed systems.
Professional Programmer, languages: SAS, C++, SQL, PL-SQL, DBPro, Purebasic, JavaScript, others
Back to top
Profile
Raven
19
Years of Service
User Offline
Joined: 23rd Mar 2005
Location: Hertfordshire, England
Posted: 23rd Jul 2019 06:41
Link
Remember that AppGameKit is using OpenGL, not DirectX (like GameGuru / DBP / FPSC) … so the .X Format can potentially have some issues.
I'd personally recommend converting Models you want to use in AppGameKit to FBX or DBO Formats.
Back to top
Profile PM Email Website
smerf
19
Years of Service
User Offline
Joined: 24th Feb 2005
Location: nm usa
Posted: 23rd Jul 2019 08:31
Link
LoadObjectWithChildren(objid,"filename as string") SetObjectScalePermanent(objid,x,y,z)
Signature removed for breach of size rules
Signature images may not be any larger than a total of 600x120 pixels in size.


Back to top
Profile PM Email
Old Dude
19
Years of Service
User Offline
Joined: 10th Oct 2005
Location:
Posted: 23rd Jul 2019 13:44
Link
Raven, unfortunately AppGameKit does not currently use FBX or DBO file types but it was a great idea.
Back to top
Profile PM
blink0k
Moderator
11
Years of Service
User Offline
Joined: 22nd Feb 2013
Location: the land of oz
Posted: 23rd Jul 2019 23:55
Link
Quote: " AppGameKit does not currently use FBX or DBO"

Yes it does. I use .fbx format files all the time. Great for animation, especially mixamo
Back to top
Profile PM
Old Dude
19
Years of Service
User Offline
Joined: 10th Oct 2005
Location:
Posted: 24th Jul 2019 17:28
Link
I guess the problem is that I read the documentation on LoadObjectWithChildren and they're not listed... but I tried them and sure enough FBX worked. I couldn't get DBO to load, which seems really odd but AppGameKit said there was no suitable reader. Thanks for the help, I will be using FBX files in the future.
Back to top
Profile PM
Bored of the Rings
User Banned
Posted: 24th Jul 2019 20:33 Edited at: 24th Jul 2019 20:34
Link
Currently, AppGameKit doesn't load in DBO format, but my program does. Although currently , the AppGameKit program only converts static DBO's as it converts directly to AppGameKit meshmemblock format. My other conversion program (non-AGK), converts both static and animated (skinned meshes) directly to either .X or OBJ formats. So I use the latter program to convert directly to .X or OBJ and then load into AppGameKit directly and works fine.
Professional Programmer, languages: SAS, C++, SQL, PL-SQL, DBPro, Purebasic, JavaScript, others
Back to top
Profile
