a2CreateFont command in Advanced 2d plugin

Author

Message

Unseen Ghost

21

Years of Service

User Offline

Joined: 2nd Sep 2002

Location: Ohio

Posted: 23rd Feb 2021 03:36 Edited at: 23rd Feb 2021 03:45

Link

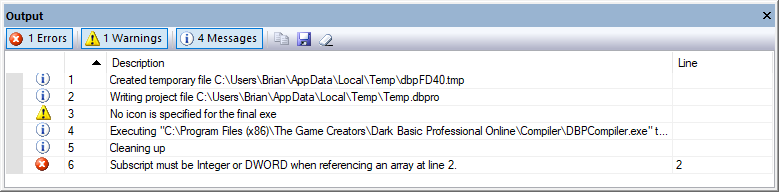

I have run the following example program from the help files of Advanced 2d plugin to get an idea how to use the "a2CreateFont" command and I get an error. I attached an image of the output of the error below. How can I fix this?

[EDIT] actually the error is line 3 not line 2. I messed up the lines lol

+ Code Snippet

rem Set up the font
myFont = a2CreateFont("ariel", 20, a2Size_Char(), a2Style_Normal() ,1)

rem Draw a bounding box, so we can see how the command works
a2Box 10, 10, 200, 200, 0x88FFFFFF

rem Set up some variables
a$ = "Now is the time for all quick foxes to jump over their lazy dogs."
valign = 0
halign = 0
wordWrap = 1
color = 0xFFFFFF00

rem Draw the text
a2BoxText myFont, 10, 10, 200, 200, a$, halign, valign, wordWrap, color

WAIT KEY

Gigabyte Board/2.93Ghtz Intel Core Duo Proc./4GB Ram/Nvidia Geforce 730 2GB/1TB Western Dig. SSD/Windows 10 Home/Dark Basic Pro 9Ex

No one cares how much you know until they know how much you care.

Attachments

Login to view attachments

Back to top

Profile PM Email

Raven

19

Years of Service

User Offline

Joined: 23rd Mar 2005

Location: Hertfordshire, England

Posted: 23rd Feb 2021 05:02

Link

a2Size_Char() and a2Style_Normal() are Arrays., so they MUST be passed a2Size_Char(0) and a2Style_Normal(0) when you want to Reference them.
DBP is just letting you know that it KNOW you're trying to access an Array but you're not telling it what Element (Subscript)

Back to top

Profile PM Email Website

Unseen Ghost

21

Years of Service

User Offline

Joined: 2nd Sep 2002

Location: Ohio

Posted: 23rd Feb 2021 20:43

Link

Thank you Raven for pointing that out. When I saw the 2 commands there, I was taking them as just functions because of the empty parentheses

Gigabyte Board/2.93Ghtz Intel Core Duo Proc./4GB Ram/Nvidia Geforce 730 2GB/1TB Western Dig. SSD/Windows 10 Home/Dark Basic Pro 9Ex

No one cares how much you know until they know how much you care.

Back to top

Profile PM Email

Unseen Ghost

21

Years of Service

User Offline

Joined: 2nd Sep 2002

Location: Ohio

Posted: 23rd Feb 2021 21:25

Link

I just tried to do what you said and I'm still getting the same error as above

Here is the same code as above except I added the 0's for the arrays

+ Code Snippet

rem Set up the font
myFont = a2CreateFont("ariel", 20, a2Size_Char(0), a2Style_Normal(0) ,1)

rem Draw a bounding box, so we can see how the command works
a2Box 10, 10, 200, 200, 0x88FFFFFF

rem Set up some variables
a$ = "Now is the time for all quick foxes to jump over their lazy dogs."
valign = 0
halign = 0
wordWrap = 1
color = 0xFFFFFF00

rem Draw the text
a2BoxText myFont, 10, 10, 200, 200, a$, halign, valign, wordWrap, color

WAIT KEY

Gigabyte Board/2.93Ghtz Intel Core Duo Proc./4GB Ram/Nvidia Geforce 730 2GB/1TB Western Dig. SSD/Windows 10 Home/Dark Basic Pro 9Ex

No one cares how much you know until they know how much you care.

Back to top

Profile PM Email

Raven

19

Years of Service

User Offline

Joined: 23rd Mar 2005

Location: Hertfordshire, England

Posted: 23rd Feb 2021 23:19

Link

Is the plug-in Compatible with the version of DBP you're using?
Some are only compatible with certain versions.

Back to top

Profile PM Email Website

James H

16

Years of Service

User Offline

Joined: 21st Apr 2007

Location: St Helens

Posted: 23rd Feb 2021 23:59 Edited at: 24th Feb 2021 00:02

Link

Those are not arrays - put anything in and you will get a parameter mismatch error, without the zero your code works perfectly fine here, using version 1.077(U7.7RC7) Specs in sig. a2Size_Char is the mode and a2Style_Normal is the style, you can replace either with similar commands listed in keywords file.

Not sure about any specific version required, but you should make sure those commands are highlighted in the editor, if not chances are you haven't installed it correctly if at all - ofc could be you just didn't install keywords file as it would compile fine without so long as the dll is correctly placed. Only sure way of knowing - get other advanced 2d plugin commands working.

Win 7 Pro 64 bit SP1, AMD A4-5300 APU 3.4GHz, 8GB DDR3, NVidia GeForce GTX 750 1GB GDDR5, ASUS A55BM-E

Back to top

Profile PM

Unseen Ghost

21

Years of Service

User Offline

Joined: 2nd Sep 2002

Location: Ohio

Posted: 24th Feb 2021 02:22

Link

I've installed the latest 7.7R7 update and the 9Ex version after that. I have all the commands highlighted in blue in the Synergy IDE. I have figured it out. I didn't have the right version dll installed. I had an older version instead. I thought I put the new one in, but didn't. I had the right keywords in, but wrong dll.

Thanks for the help

Gigabyte Board/2.93Ghtz Intel Core Duo Proc./4GB Ram/Nvidia Geforce 730 2GB/1TB Western Dig. SSD/Windows 10 Home/Dark Basic Pro 9Ex

No one cares how much you know until they know how much you care.

Back to top

Profile PM Email

James H

16

Years of Service

User Offline

Joined: 21st Apr 2007

Location: St Helens

Posted: 24th Feb 2021 02:27

Link

Glad it worked out for you

Win 7 Pro 64 bit SP1, AMD A4-5300 APU 3.4GHz, 8GB DDR3, NVidia GeForce GTX 750 1GB GDDR5, ASUS A55BM-E
