Play an object-animation without hitting a key

Author

Message

guegra

4

Years of Service

User Offline

Joined: 9th Jan 2020

Location:

Posted: 15th Nov 2021 15:36

Link

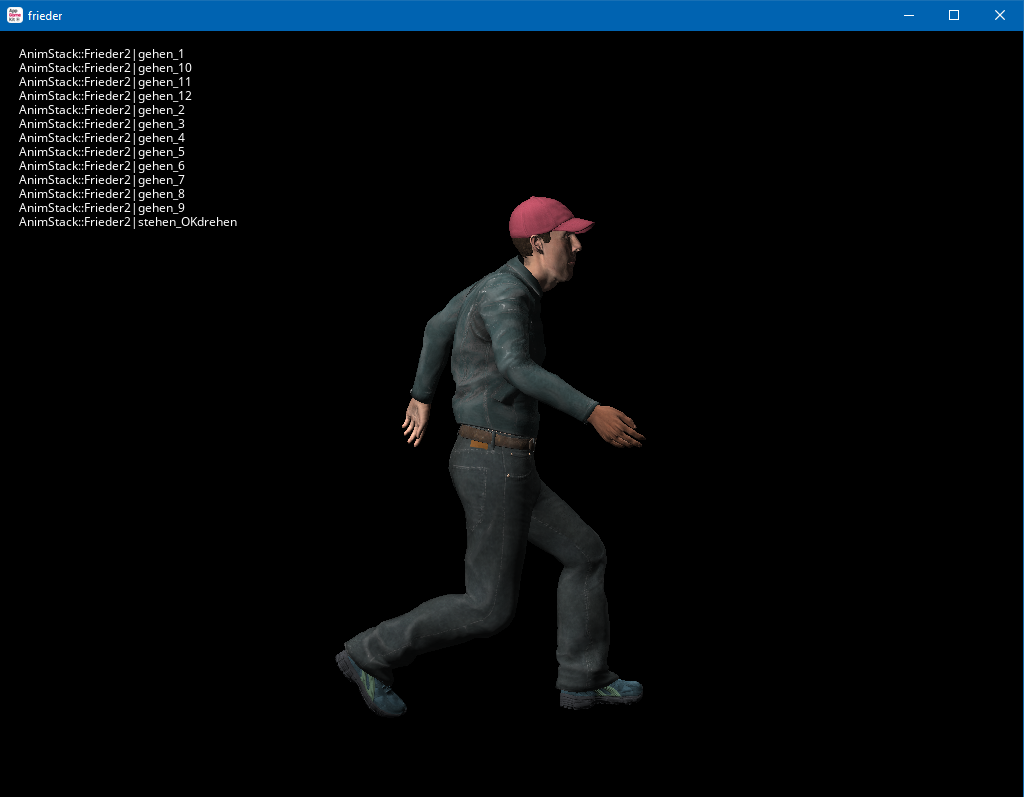

I made a Character (he is called frieder) in Blender and exported it to AppGameKit as an fbx-file. The file has a lot of animations in it, e. g. walking, standing and looking around. My character walks from the left side of the screen to the right. This works. I wanted him to stop at a certain point and play another animation.
Therefore I wrote the following code:

function bewegen ()
if GetObjectX(frieder)<4
MoveObjectLocalZ (frieder, -0.1)
elseif GetObjectX(frieder)>4
PlayObjectAnimation( frieder, handlung[13], 0, 40, 0, 1 )
endif
endfunction

The Character stops and there is a little animation to the first frame of the animation that should be played.

if I write

function bewegen ()
if GetObjectX(frieder)<4
MoveObjectLocalZ (frieder, -0.1)
elseif GetObjectX(frieder)>4
if ( GetRawKeyPressed( 35 ) )
PlayObjectAnimation( frieder, handlung[13], 0, 40, 0, 1 )
endif
endif
endfunction

the animation 'handlung[13]' is played when I hit the key ('end').
Is there a possibility to go from one animation to another withour hitting a key or a mouseclick???

Attachments

Login to view attachments

Back to top

Profile PM

Game_Code_here

3

Years of Service

User Offline

Joined: 2nd Jun 2020

Location:

Posted: 15th Nov 2021 16:29

Link

if ( GetRawKeyPressed( 35 ) )
PlayObjectAnimation( frieder, handlung[13], 0, 40, 0, 1 )
endif

Is a ending flag

So do this

If getspriteplaying(frieder)=0 then playsprite(frieder)

Back to top

Profile PM

ando

4

Years of Service

User Offline

Joined: 21st Feb 2020

Location: Australia

Posted: 15th Nov 2021 16:59 Edited at: 15th Nov 2021 17:14

Link

Also looks like you are checking less than 4 and greater than 4. What if it = 4 ?

+ Code Snippet

elseif GetObjectX(frieder) >=4

BASIC appeared in May 1964. Lightning flashed, the wind roared and the Earth moved.
And nine months later I was born.
So here I am.
I am Basic.
Code is in my genes.

Back to top

Profile PM

Game_Code_here

3

Years of Service

User Offline

Joined: 2nd Jun 2020

Location:

Posted: 15th Nov 2021 17:29

Link

+ Code Snippet

function bewegen ()
if GetObjectX(frieder)<4
MoveObjectLocalZ (frieder, -0.1)
else
If getobjectplaying(frieder)=0 then PlayObjectAnimation( frieder, handlung[13], 0, 40, 0, 1 )
endif
endfunction

Sorry I see you are using objects not sprites.

Back to top

Profile PM

ando

4

Years of Service

User Offline

Joined: 21st Feb 2020

Location: Australia

Posted: 15th Nov 2021 17:31 Edited at: 15th Nov 2021 17:49

Link

Test all the frames too.
PlayObjectAnimation( frieder, handlung[13], 0,last frame number, 1, 1 ) // changed to 1 for repeat
print(" "+str(GetObjectAnimationTime(frieder)))

BASIC appeared in May 1964. Lightning flashed, the wind roared and the Earth moved.
And nine months later I was born.
So here I am.
I am Basic.
Code is in my genes.

Back to top

Profile PM

ando

4

Years of Service

User Offline

Joined: 21st Feb 2020

Location: Australia

Posted: 15th Nov 2021 18:26 Edited at: 15th Nov 2021 19:18

Link

You are constantly telling it to play from frame 0 so it can't reach frame 1 2 3 etc

@ Game_Code_here. It took me a while to see that one and now I see how your response is correct. (if the animation is stopped at the end of the walk)
I'll just go back to sleep.

BASIC appeared in May 1964. Lightning flashed, the wind roared and the Earth moved.
And nine months later I was born.
So here I am.
I am Basic.
Code is in my genes.

Back to top

Profile PM

ando

4

Years of Service

User Offline

Joined: 21st Feb 2020

Location: Australia

Posted: 15th Nov 2021 19:42

Link

You could avoid stopping the animation like this.
Where you tell your anim to walk add this-
anim_mode$="walk"
and add an anim_mode$ name for every animation.

then

+ Code Snippet

function bewegen ()
if GetObjectX(frieder)<4
MoveObjectLocalZ (frieder, -0.1)
elseif GetObjectX(frieder)>4
If anim_mode$="walk"
PlayObjectAnimation( frieder, handlung[13], 0, 40, 0, 1 )
anim_mode$="standing" // if that is the anim you are going for next.
endif
endif
endfunction

I used this code as a test.

anim=0
    if getrawmouseleftpressed()
        cycle=cycle+1
        if cycle>13 then cycle=1
        anim=cycle
    endif
    if getrawmouserightpressed()
        cycle=cycle-1
        if cycle<1 then cycle=13
        anim=cycle
    endif

    if anim>0
        if anim=1
            PlayObjectAnimation(trex,anim_name$,0,45,1,t_time#)
            anim_mode$="WALK"
        endif
        if anim=2
            PlayObjectAnimation(trex,anim_name$,47,77,1,t_time#)
            anim_mode$="RUN"
        endif
        if anim=3
            PlayObjectAnimation(trex,anim_name$,79,124,1,t_time#)
            anim_mode$="STAND"
        endif
        if anim=4
            PlayObjectAnimation(trex,anim_name$,126,276,1,t_time#)
            anim_mode$="IDLE"
        endif
        if anim=5
            PlayObjectAnimation(trex,anim_name$,278,398,1,t_time#)
            anim_mode$="ROAR"
        endif
        if anim=6
            PlayObjectAnimation(trex,anim_name$,400,430,1,t_time#)
            anim_mode$="ATTACK 1"
        endif
        if anim=7
            PlayObjectAnimation(trex,anim_name$,432,462,1,t_time#)
            anim_mode$="ATTACK 2"
        endif
        if anim=8
            PlayObjectAnimation(trex,anim_name$,464,494,1,t_time#)
            anim_mode$="ATTACK 3"
        endif
        if anim=9
            PlayObjectAnimation(trex,anim_name$,496,556,1,t_time#)
            anim_mode$="WHIP TAIL"
        endif
        if anim=10
            PlayObjectAnimation(trex,anim_name$,558,588,1,t_time#)
            anim_mode$="HIT 1"
        endif
        if anim=11
            PlayObjectAnimation(trex,anim_name$,590,620,1,t_time#)
            anim_mode$="HIT 2"
        endif
        if anim=12
            PlayObjectAnimation(trex,anim_name$,622,676,1,t_time#)
            anim_mode$="DEATH"
        endif
        if anim=13
            PlayObjectAnimation(trex,anim_name$,0,676,1,t_time#)
            anim_mode$="ALL"
        endif
    endif

+ Code Snippet


    anim=0
    if getrawmouseleftpressed()
        cycle=cycle+1
        if cycle>13 then cycle=1
        anim=cycle
    endif
    if getrawmouserightpressed()
        cycle=cycle-1
        if cycle<1 then cycle=13
        anim=cycle
    endif

    if anim>0
        if anim=1
            PlayObjectAnimation(trex,anim_name$,0,45,1,t_time#)
            anim_mode$="WALK"
        endif
        if anim=2
            PlayObjectAnimation(trex,anim_name$,47,77,1,t_time#)
            anim_mode$="RUN"
        endif
        if anim=3
            PlayObjectAnimation(trex,anim_name$,79,124,1,t_time#)
            anim_mode$="STAND"
        endif
        if anim=4
            PlayObjectAnimation(trex,anim_name$,126,276,1,t_time#)
            anim_mode$="IDLE"
        endif
        if anim=5
            PlayObjectAnimation(trex,anim_name$,278,398,1,t_time#)
            anim_mode$="ROAR"
        endif
        if anim=6
            PlayObjectAnimation(trex,anim_name$,400,430,1,t_time#)
            anim_mode$="ATTACK 1"
        endif
        if anim=7
            PlayObjectAnimation(trex,anim_name$,432,462,1,t_time#)
            anim_mode$="ATTACK 2"
        endif
        if anim=8
            PlayObjectAnimation(trex,anim_name$,464,494,1,t_time#)
            anim_mode$="ATTACK 3"
        endif
        if anim=9
            PlayObjectAnimation(trex,anim_name$,496,556,1,t_time#)
            anim_mode$="WHIP TAIL"
        endif
        if anim=10
            PlayObjectAnimation(trex,anim_name$,558,588,1,t_time#)
            anim_mode$="HIT 1"
        endif
        if anim=11
            PlayObjectAnimation(trex,anim_name$,590,620,1,t_time#)
            anim_mode$="HIT 2"
        endif
        if anim=12
            PlayObjectAnimation(trex,anim_name$,622,676,1,t_time#)
            anim_mode$="DEATH"
        endif
        if anim=13
            PlayObjectAnimation(trex,anim_name$,0,676,1,t_time#)
            anim_mode$="ALL"
        endif
    endif

BASIC appeared in May 1964. Lightning flashed, the wind roared and the Earth moved.
And nine months later I was born.
So here I am.
I am Basic.
Code is in my genes.

Back to top

Profile PM

PartTimeCoder

AGK Tool Maker

9

Years of Service

User Offline

Joined: 9th Mar 2015

Location: London UK

Posted: 15th Nov 2021 20:57

Link

To "auto skip" to an animation without no user input you will need to get the animation time v's duration, if time=duration its the last frame, play the next ani ...

or use GetObjectIsAnimating, if the previous animation was looped then this will always be true so use time v's duration instead

setting up animations like this you are 1000% going to need to use a a very strict "state machine"
