How to do multitexturing of objects correctly?

WorldObjectID=LoadWorld()

function LoadWorld()
	WorldObjectID=LoadObjectWithChildren("Map/SP_Showcase.x")   `````````````````````````````````` load map
	SetObjectScalePermanent(WorldObjectID,0.1,0.1,0.1)
	SetObjectScreenCulling(WorldObjectID,0) // portal culling would work best in this kind of level

// Beware: the Material order is important
	// most 3D model formats create groups for every texture
	// so one Material/Texture-Set for every mesh
	Diffuse=LoadImage("Map/pk01_gra_floor01_d.png") `````````````````` load materials

AddMaterial(Diffuse) ``````````````````````````````````````` applying a material to a specific mesh

Diffuse=LoadImage("Map/pk01_roof01_d.png")

AddMaterial(Diffuse)

Diffuse=LoadImage("Map/pk01_wall03b_d.png")

AddMaterial(Diffuse

	Diffuse=LoadImage("Map/pk01_tile_floor01b_d.png")

AddMaterial(Diffuse)

Diffuse=LoadImage("Map/pk01_pan_floor02b_d.png")

AddMaterial(Diffuse)

Diffuse=LoadImage("Map/pk01_trims01b_d.png")

AddMaterial(Diffuse)

Diffuse=LoadImage("Map/pk01_door01b_d.png")

AddMaterial(Diffuse)

SetObjectMaterials(WorldObjectID)  ```````````````````````applying all materials to specific mesh
	RemoveMaterials()
endfunction WorldObjectID

function SetObjectMaterials(WorldObjectID)
	for MeshID=1 to GetObjectNumMeshes(WorldObjectID) ````````````the task of looping over the entire main map of meshes

if Material[MeshID-1].Diffuse>0
			SetObjectMeshImage(WorldObjectID,MeshID,Material[MeshID-1].Diffuse,0)
		endif
	next MeshID
endfunction

function AddMaterial(Diffuse)
	TempMaterial as MatData
	if GetImageExists(Diffuse)
		TempMaterial.Diffuse=Diffuse
		SetImageWrapU(TempMaterial.Diffuse,1)
		SetImageWrapV(TempMaterial.Diffuse,1)
	endif

	Material.insert(TempMaterial)
endfunction

function RemoveMaterials()
	Material.length=-1
endfunction

WorldObjectID=LoadWorld()

function LoadWorld()
	WorldObjectID=LoadObjectWithChildren("Map/SP_Showcase.x")   `````````````````````````````````` load map
	SetObjectScalePermanent(WorldObjectID,0.1,0.1,0.1)
	SetObjectScreenCulling(WorldObjectID,0) // portal culling would work best in this kind of level

	// Beware: the Material order is important
	// most 3D model formats create groups for every texture
	// so one Material/Texture-Set for every mesh
	Diffuse=LoadImage("Map/pk01_gra_floor01_d.png") `````````````````` load materials

	AddMaterial(Diffuse) ``````````````````````````````````````` applying a material to a specific mesh

	Diffuse=LoadImage("Map/pk01_roof01_d.png")

	AddMaterial(Diffuse)

	Diffuse=LoadImage("Map/pk01_wall03b_d.png")

	AddMaterial(Diffuse

	Diffuse=LoadImage("Map/pk01_tile_floor01b_d.png")

	AddMaterial(Diffuse)

	Diffuse=LoadImage("Map/pk01_pan_floor02b_d.png")

	AddMaterial(Diffuse)

	Diffuse=LoadImage("Map/pk01_trims01b_d.png")

	AddMaterial(Diffuse)

	Diffuse=LoadImage("Map/pk01_door01b_d.png")

	AddMaterial(Diffuse)

	SetObjectMaterials(WorldObjectID)  ```````````````````````applying all materials to specific mesh
	RemoveMaterials()
endfunction WorldObjectID

function SetObjectMaterials(WorldObjectID)
	for MeshID=1 to GetObjectNumMeshes(WorldObjectID) ````````````the task of looping over the entire main map of meshes

		if Material[MeshID-1].Diffuse>0
			SetObjectMeshImage(WorldObjectID,MeshID,Material[MeshID-1].Diffuse,0)
		endif
	next MeshID
endfunction

function AddMaterial(Diffuse)
	TempMaterial as MatData
	if GetImageExists(Diffuse)
		TempMaterial.Diffuse=Diffuse
		SetImageWrapU(TempMaterial.Diffuse,1)
		SetImageWrapV(TempMaterial.Diffuse,1)
	endif

	Material.insert(TempMaterial)
endfunction

function RemoveMaterials()
	Material.length=-1
endfunction

This is an example of loading a map from a fps creator into an app game kit.
Did I write everything correctly?

The code doesn't work for some reason.
Although it worked in the examples.

programming is a hobby, not a job.
P.S. in google and youtube - nikename pavelman- it is not me!

Back to top

Profile PM Email Website

PartTimeCoder

AGK Tool Maker

9

Years of Service

User Offline

Joined: 9th Mar 2015

Location: London UK

Posted: 5th Dec 2021 15:01 Edited at: 5th Dec 2021 15:29

if it works in the examples and not in your project then the code is good, check the file paths

and please, don't spam my inbox with your help requests, all it will achieve is make me ignore you!

Edit: in future, if you want help via PM send the project, not a wall of unformatted text

Open Source plugins
Cl - DnD Plugin
Buy Me A Coffee

Back to top

Profile PM

pavel_sv_1982

11

Years of Service

User Offline

Joined: 9th Apr 2013

Location: Russia

Posted: 6th Dec 2021 13:03

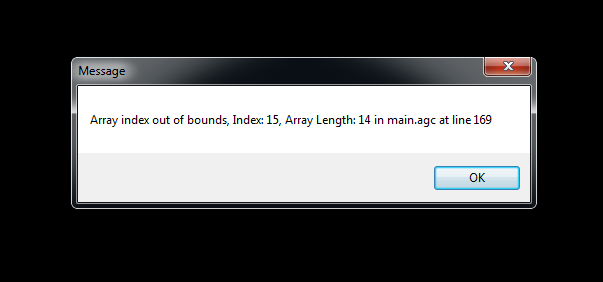

The program gave an error when going to the list of meshes of the main mesh. I suppose this is due to a glitch in determining the number of meshes of the main mesh.
After all, I compiled the simplest game in fps creator and used your program to convert the map.
I just haven't dealt with objects like object before so I have no idea. how it actually works.
Checked in dark basic pro. Everything works.
It automatically applies all textures. he does not need this code.
I added comments to the code.
Correct me if I was wrong. Thanks.

programming is a hobby, not a job.

Back to top

Profile PM Email Website

PartTimeCoder

AGK Tool Maker

9

Years of Service

User Offline

Joined: 9th Mar 2015

Location: London UK

Posted: 6th Dec 2021 13:41 Edited at: 6th Dec 2021 13:42

Not my program, Not my code.

That code *looks* ok to me, I see no obvious errors the fault must be the model

LoadObjectWithChildren expects a animated object, the meshes are children of the armature, try with LoadObject

add:

Log(Str(GetObjectNumMeshes(WorldObjectID)))
Log(Str(GetObjectNumChildren(WorldObjectID)))

and run in debug >> if you get 0, there is your problem

Open Source plugins
Cl - DnD Plugin
Buy Me A Coffee

Back to top

Profile PM

pavel_sv_1982

11

Years of Service

User Offline

Joined: 9th Apr 2013

Location: Russia

Posted: 6th Dec 2021 14:50

code from DLC Shader pack

//##########################################################
//####    AppGameKit - Shader Pack 2017 Jan Bögemann    ####
//####    Project: DoF                                  ####
//####    Created: 2017-05-27                           ####
//##########################################################

From here this code.
I cut off the special effects that are premium to him.
Left only loading the textures themselves. And that's all. the code doesn't work. Can you help me figure out the part of the code that loads and textures the map?
Please.

programming is a hobby, not a job.

Back to top

Profile PM Email Website

PartTimeCoder

AGK Tool Maker

9

Years of Service

User Offline

Joined: 9th Mar 2015

Location: London UK

Posted: 6th Dec 2021 15:56

Quote: "the code doesn't work."

That's very vague, what does not work, exactly?

I just ran a test here

The untextured part uses illumination maps which you saw I commented out, to use this you need to use the shaders

Open Source plugins
Cl - DnD Plugin
Buy Me A Coffee

Back to top

Profile PM

pavel_sv_1982

11

Years of Service

User Offline

Joined: 9th Apr 2013

Location: Russia

Posted: 6th Dec 2021 19:47

Now swing the magic wand.
Have you tried to put your card there?
For example, made in FPS creator,
And converted with a welder?

programming is a hobby, not a job.

Back to top

Profile PM Email Website

PartTimeCoder

AGK Tool Maker

9

Years of Service

User Offline

Joined: 9th Mar 2015

Location: London UK

Posted: 6th Dec 2021 21:21

Expelliarmus!! ....

Many Confucius quotes are running through my head right now!

I do not have FPSC or the welder installed, sorry, you still have not said what is not working, I think I need a magic wand trying to solve your problem!!

upload your project to dropbox [or other reputable file sharing site] and PM me a link I will take a look but I am not installing a bunch of stuff just to answer a question

Open Source plugins
Cl - DnD Plugin
Buy Me A Coffee

Back to top

Profile PM

EdzUp

21

Years of Service

User Offline

Joined: 8th Sep 2002

Location: UK

Posted: 14th Dec 2021 08:48

For one thing shouldn't the length of the array be set to 0 not -1 as setting to -1 will cause an issue when accessing the materials array.

-EdzUp
Patreon: https://www.patreon.com/EdzUp
Buy me a coffee:https://www.buymeacoffee.com/EdzUp

Back to top

Profile PM Email Website

pavel_sv_1982

11

Years of Service

User Offline

Joined: 9th Apr 2013

Location: Russia

Posted: 14th Dec 2021 13:24 Edited at: 14th Dec 2021 13:25

function LoadWorld()
	WorldObjectID=LoadObjectWithChildren("Map/test.x")
	`SetObjectScalePermanent(WorldObjectID,0.1,0.1,0.1)
	SetObjectScreenCulling(WorldObjectID,0) // portal culling would work best in this kind of level

// Beware: the Material order is important
	// most 3D model formats create groups for every texture
	// so one Material/Texture-Set for every mesh

Diffuse=LoadImage("Map/f_g_01_d2.png")

AddMaterial(Diffuse)

Diffuse=LoadImage("Map/f_z_01_d2.png")

AddMaterial(Diffuse)

Diffuse=LoadImage("Map/ground_d2.png")

AddMaterial(Diffuse)

Diffuse=LoadImage("Map/lava_01_d2.png")
	AddMaterial(Diffuse)

SetObjectMaterials(WorldObjectID)
	RemoveMaterials()
endfunction WorldObjectID

function SetObjectMaterials(WorldObjectID)
	for MeshID=1 to GetObjectNumMeshes(WorldObjectID)-1
if Material[MeshID-1].Diffuse>0
			SetObjectMeshImage(WorldObjectID,MeshID,Material[MeshID-1].Diffuse,0)
		endif
	next MeshID
endfunction

function AddMaterial(Diffuse)
	TempMaterial as MatData
	if GetImageExists(Diffuse)
		TempMaterial.Diffuse=Diffuse
		SetImageWrapU(TempMaterial.Diffuse,1)
		SetImageWrapV(TempMaterial.Diffuse,1)

endif

Material.insert(TempMaterial)
endfunction

function RemoveMaterials()
	Material.length=-1
endfunction

function LoadWorld()
	WorldObjectID=LoadObjectWithChildren("Map/test.x")
	`SetObjectScalePermanent(WorldObjectID,0.1,0.1,0.1)
	SetObjectScreenCulling(WorldObjectID,0) // portal culling would work best in this kind of level

	// Beware: the Material order is important
	// most 3D model formats create groups for every texture
	// so one Material/Texture-Set for every mesh

	Diffuse=LoadImage("Map/f_g_01_d2.png")

	AddMaterial(Diffuse)

	Diffuse=LoadImage("Map/f_z_01_d2.png")

	AddMaterial(Diffuse)

	Diffuse=LoadImage("Map/ground_d2.png")

	AddMaterial(Diffuse)


	Diffuse=LoadImage("Map/lava_01_d2.png")
	AddMaterial(Diffuse)


SetObjectMaterials(WorldObjectID)
	RemoveMaterials()
endfunction WorldObjectID

function SetObjectMaterials(WorldObjectID)
	for MeshID=1 to GetObjectNumMeshes(WorldObjectID)-1
if Material[MeshID-1].Diffuse>0
			SetObjectMeshImage(WorldObjectID,MeshID,Material[MeshID-1].Diffuse,0)
		endif
	next MeshID
endfunction

function AddMaterial(Diffuse)
	TempMaterial as MatData
	if GetImageExists(Diffuse)
		TempMaterial.Diffuse=Diffuse
		SetImageWrapU(TempMaterial.Diffuse,1)
		SetImageWrapV(TempMaterial.Diffuse,1)

	endif

	Material.insert(TempMaterial)
endfunction

function RemoveMaterials()
	Material.length=-1
endfunction

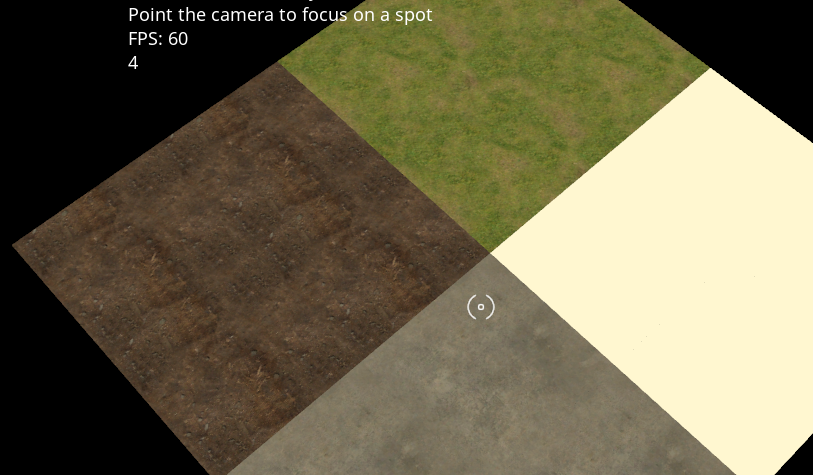

It seems to have worked out, but the last texture for some reason does not want to dress.

programming is a hobby, not a job.

Attachments

Login to view attachments

Back to top

Profile PM Email Website

Bored of the Rings

User Banned

Posted: 14th Dec 2021 13:42

a quick guess at a glance:

try removing the -1 from:

function SetObjectMaterials(WorldObjectID)
for MeshID=1 to GetObjectNumMeshes(WorldObjectID)-1

Professional Programmer, languages: SAS, C++, SQL, PL-SQL, DBPro, Purebasic, JavaScript, others

Back to top

Profile

pavel_sv_1982

11

Years of Service

User Offline

Joined: 9th Apr 2013

Location: Russia

Posted: 14th Dec 2021 14:30 Edited at: 14th Dec 2021 14:59

function SetObjectMaterials(WorldObjectID)
for MeshID=1 to GetObjectNumMeshes(WorldObjectID)
Error message.

function LoadWorld()
	WorldObjectID=LoadObjectWithChildren("Map/test.x")
	SetObjectScalePermanent(WorldObjectID,0.1,0.1,0.1)
	SetObjectScreenCulling(WorldObjectID,0) // portal culling would work best in this kind of level

// Beware: the Material order is important
	// most 3D model formats create groups for every texture
	// so one Material/Texture-Set for every mesh

Diffuse=LoadImage("Map/F_v_01_D2.png")
	AddMaterial(Diffuse)

	Diffuse=LoadImage("Map/f_c_01_d2.png")
	AddMaterial(Diffuse)

Diffuse=LoadImage("Map/f_c_02_D2.png")
	AddMaterial(Diffuse)

Diffuse=LoadImage("Map/f_c_03_D2.png")
	AddMaterial(Diffuse)

Diffuse=LoadImage("Map/f_f_01_d2.png")
	AddMaterial(Diffuse)

Diffuse=LoadImage("Map/f_f_02_D2.png")
	AddMaterial(Diffuse)

Diffuse=LoadImage("Map/f_f_03_D2.png")
	AddMaterial(Diffuse)

`1111111111111111111111111111111111111111111111111
	Diffuse=LoadImage("Map/w_e_up_01_d2.png")
	AddMaterial(Diffuse)

Diffuse=LoadImage("Map/w_e_up_02_D2.png")
	AddMaterial(Diffuse)

Diffuse=LoadImage("Map/w_e_up_03_D2.png")
	AddMaterial(Diffuse)

Diffuse=LoadImage("Map/w_f_up_01_d2.png")
	AddMaterial(Diffuse)

Diffuse=LoadImage("Map/w_k_all_01_d2.png")
	AddMaterial(Diffuse)

Diffuse=LoadImage("Map/w_k_all_02_D2.png")
	AddMaterial(Diffuse)

Diffuse=LoadImage("Map/w_k_all_03_D2.png")
	AddMaterial(Diffuse)

Diffuse=LoadImage("Map/w_l_all_01_d2.png")
	AddMaterial(Diffuse)

SetObjectMaterials(WorldObjectID)
	RemoveMaterials()
endfunction WorldObjectID

function SetObjectMaterials(WorldObjectID)
	for MeshID=1 to GetObjectNumMeshes(WorldObjectID)-1
if Material[MeshID-1].Diffuse>0
			SetObjectMeshImage(WorldObjectID,MeshID,Material[MeshID-1].Diffuse,0)
		endif
	next MeshID
endfunction

function AddMaterial(Diffuse)
	TempMaterial as MatData
	if GetImageExists(Diffuse)
		TempMaterial.Diffuse=Diffuse
		SetImageWrapU(TempMaterial.Diffuse,1)
		SetImageWrapV(TempMaterial.Diffuse,1)

endif

Material.insert(TempMaterial)
endfunction

function RemoveMaterials()
	Material.length=-1
endfunction

function LoadWorld()
	WorldObjectID=LoadObjectWithChildren("Map/test.x")
	SetObjectScalePermanent(WorldObjectID,0.1,0.1,0.1)
	SetObjectScreenCulling(WorldObjectID,0) // portal culling would work best in this kind of level

	// Beware: the Material order is important
	// most 3D model formats create groups for every texture
	// so one Material/Texture-Set for every mesh

	Diffuse=LoadImage("Map/F_v_01_D2.png")
	AddMaterial(Diffuse)

	Diffuse=LoadImage("Map/f_c_01_d2.png")
	AddMaterial(Diffuse)

	Diffuse=LoadImage("Map/f_c_02_D2.png")
	AddMaterial(Diffuse)

	Diffuse=LoadImage("Map/f_c_03_D2.png")
	AddMaterial(Diffuse)

	Diffuse=LoadImage("Map/f_f_01_d2.png")
	AddMaterial(Diffuse)

	Diffuse=LoadImage("Map/f_f_02_D2.png")
	AddMaterial(Diffuse)

	Diffuse=LoadImage("Map/f_f_03_D2.png")
	AddMaterial(Diffuse)



`1111111111111111111111111111111111111111111111111
	Diffuse=LoadImage("Map/w_e_up_01_d2.png")
	AddMaterial(Diffuse)

	Diffuse=LoadImage("Map/w_e_up_02_D2.png")
	AddMaterial(Diffuse)

	Diffuse=LoadImage("Map/w_e_up_03_D2.png")
	AddMaterial(Diffuse)

	Diffuse=LoadImage("Map/w_f_up_01_d2.png")
	AddMaterial(Diffuse)

	Diffuse=LoadImage("Map/w_k_all_01_d2.png")
	AddMaterial(Diffuse)

	Diffuse=LoadImage("Map/w_k_all_02_D2.png")
	AddMaterial(Diffuse)

	Diffuse=LoadImage("Map/w_k_all_03_D2.png")
	AddMaterial(Diffuse)

	Diffuse=LoadImage("Map/w_l_all_01_d2.png")
	AddMaterial(Diffuse)

SetObjectMaterials(WorldObjectID)
	RemoveMaterials()
endfunction WorldObjectID

function SetObjectMaterials(WorldObjectID)
	for MeshID=1 to GetObjectNumMeshes(WorldObjectID)-1
if Material[MeshID-1].Diffuse>0
			SetObjectMeshImage(WorldObjectID,MeshID,Material[MeshID-1].Diffuse,0)
		endif
	next MeshID
endfunction

function AddMaterial(Diffuse)
	TempMaterial as MatData
	if GetImageExists(Diffuse)
		TempMaterial.Diffuse=Diffuse
		SetImageWrapU(TempMaterial.Diffuse,1)
		SetImageWrapV(TempMaterial.Diffuse,1)

	endif

	Material.insert(TempMaterial)
endfunction

function RemoveMaterials()
	Material.length=-1
endfunction

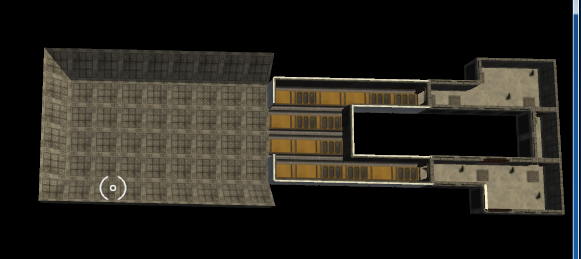

Also wrong texturing....

But this is in principle decisive.
You can change the names of the textures in the substitution mode and leave them when they coincide with the original.
But it’s hard.

programming is a hobby, not a job.

Attachments

Login to view attachments

Back to top

Profile PM Email Website

blink0k

Moderator

11

Years of Service

User Offline

Joined: 22nd Feb 2013

Location: the land of oz

Posted: 14th Dec 2021 19:55 Edited at: 14th Dec 2021 19:55

That error suggests to me that you have more meshes in the object than you think.
It would also explain why one of the textures is not showing

Back to top

Profile PM

pavel_sv_1982

11

Years of Service

User Offline

Joined: 9th Apr 2013

Location: Russia

Posted: 15th Dec 2021 10:41 Edited at: 15th Dec 2021 11:06

The texture of the last mesh is not displayed.
But why are textures overlaid on their own? Unclear
That is, the textures are generally not applied quite correctly.
The map was made in FPS creator.
With the help of a tool provided by a kind user, I processed the map. And made a readable file. [file.x]
I converted the textures to a readable format. [file.png]
It seems that everything worked out, but ... It looks like we will have to start renaming textures. But they are superimposed according to their rooms.

programming is a hobby, not a job.

Back to top

Profile PM Email Website

Bored of the Rings

User Banned

Posted: 15th Dec 2021 12:56 Edited at: 15th Dec 2021 12:56

if you used my tool AutoWelder, which version did you use? I have fixed texture/limb issues in latest version. if not , pls ignore this post.

Professional Programmer, languages: SAS, C++, SQL, PL-SQL, DBPro, Purebasic, JavaScript, others

Back to top

Profile

pavel_sv_1982

11

Years of Service

User Offline

Joined: 9th Apr 2013

Location: Russia

Posted: 15th Dec 2021 13:03

@Bored of the Rings
AutoWelder2.6d

programming is a hobby, not a job.

Back to top

Profile PM Email Website

Bored of the Rings

User Banned

Posted: 15th Dec 2021 13:24 Edited at: 15th Dec 2021 13:40

Ah yes it's at v2.9, will pm you a link when I get a moment, doing this on phone

Professional Programmer, languages: SAS, C++, SQL, PL-SQL, DBPro, Purebasic, JavaScript, others

Back to top

Profile

pavel_sv_1982

11

Years of Service

User Offline

Joined: 9th Apr 2013

Location: Russia

Posted: 15th Dec 2021 13:28

I will be very grateful.
I already have a large collection of instruments
yours including.

programming is a hobby, not a job.

Back to top

Profile PM Email Website

Bored of the Rings

User Banned

Posted: 15th Dec 2021 14:37

PM'd you a link to 2.9 AW

Professional Programmer, languages: SAS, C++, SQL, PL-SQL, DBPro, Purebasic, JavaScript, others

Back to top

Profile

pavel_sv_1982

11

Years of Service

User Offline

Joined: 9th Apr 2013

Location: Russia

Posted: 15th Dec 2021 15:39 Edited at: 15th Dec 2021 15:40

Thank you. I checked the object again.
It loads into dark basic pro without errors.
In the app game kit with errors.
It is necessary to look for an error in the code.
Or, using the substitution method, rename the texture files.

This means that the error is not in your program.

programming is a hobby, not a job.

Back to top

Profile PM Email Website

Back to top

Login to post a reply

Server time is: 2024-04-20 03:06:59
Your offset time is: 2024-04-20 03:06:59
