AppGameKit Classic Chat / Vulcan Error SetRenderToImage--Broadcast to iPad With AGK Classic

Author
Message
JosephB
17
Years of Service
User Offline
Joined: 12th Sep 2006
Location:
Posted: 18th May 2022 18:38
Not sure if this is a bug as I am using AppGameKit Classic and broadcasting to my iPad, so I do not think Vulcan should be involved, but I receive an error message stating "Error: Vulcan does not support rendering to loaded images; only images created with CreateRenderImage can be used with setRenderToImage in main.agc at line 63." The sample code is below with the needed attachment and shows that the image used is a loaded image "gray.png", not an image created with CreateRenderImage. I have also tested this with GetImage to create an image and the problem is the same. Code works fine on Windows and broadcasting to Android. Does anyone know if there a way around this?

Thanks.



Attachments

Login to view attachments
Virtual Nomad
Moderator
18
Years of Service
Recently Online
Joined: 14th Dec 2005
Location: SF Bay Area, USA
JosephB
17
Years of Service
User Offline
Joined: 12th Sep 2006
Location:
Posted: 19th May 2022 17:59
@Virtual Nomad,

Thanks for the reply. If I use CreateRenderImage(), how would I get an image from a file, or an image grabbed from the screen into that blank created render image? I have tried using a sprite with the image I want by using RenderToImage() to the created render image when rendering the sprite to the screen. The resulting image size is wrong (much smaller than the CreateRenderImage size), so I must reset the sprite size that uses that rendered to image. The sprite size also shows and acts differently on different devices. Is there a better way to update that created render image to either a file or screen image?

Thanks,

Joe
Virtual Nomad
Moderator
18
Years of Service
Recently Online
Joined: 14th Dec 2005
Location: SF Bay Area, USA
Posted: 19th May 2022 18:29 Edited at: 19th May 2022 18:39
Not at a computer/dont have code handy but, IIRC, its best to have the render image created @ the same aspect ratio as the device.

Then DrawSprite() to the render image.

Same dimensions would be ideal, as well but there are occasions where u'd want different dimensions. Ie, if ur render image was scaled @ 50% of the screen, u'd scale the sprite(s), DrawSprite() @ scaled coords. Then u would scale the RenderImage sprite @ 200%.

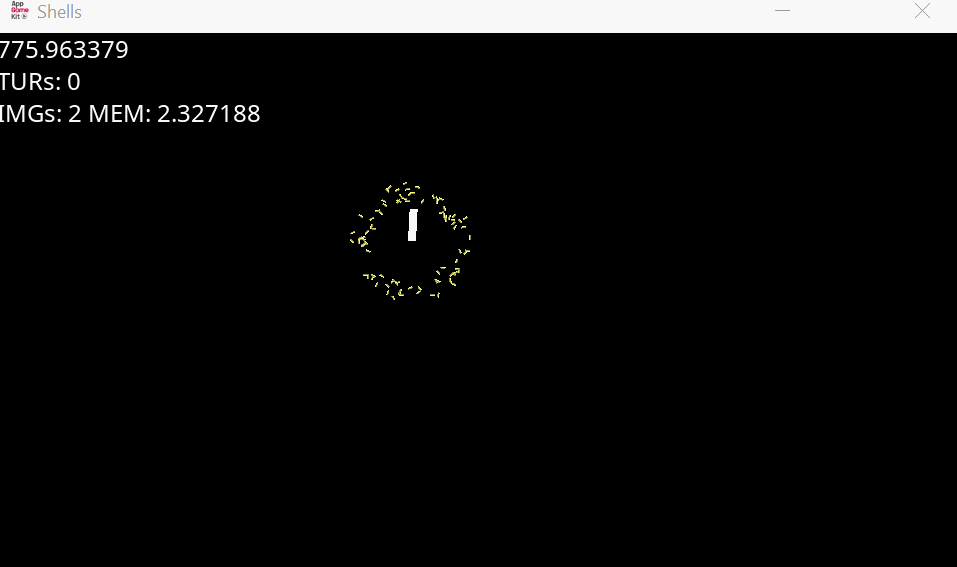

Meanwhile, i was able to find some code i had offered on discord that might be usefull. See attached

I can't remember if that was a 'final version' but i'll look for it when i get home/can test.

Meanwhile, the code was meant to depict the accumulation of shell casings spit out by turret guns without creating sprite after sprite in anticipation of reaching "thousands" of them soon enough:

Attachments

Login to view attachments
JosephB
17
Years of Service
User Offline
Joined: 12th Sep 2006
Location:
Posted: 19th May 2022 20:24
That's clever. In my example, I set the created render image to the max screen size and then created a sprite with a loaded image. I then sized the sprite the same as the screen size to use it to render to the created render image. Finally, I created a sprite using this image. The sprite does resize properly. While the code works okay in Windows and Android, there are some issues with Apple iOS. Also, this is much more system intensive then doing it with the original example code, maybe 1/4 to 1/10 the FPS. I also receive an error message when broadcasting to my iPad with the line SetImageTransparentColor(imgRender1, 255, 100, 100): Cannot update image data on an image that has been used with SetRenderToImage, only modifications by the GPU are allowed. If I REM that line out, the code will broadcast, but does not do what it should to remove some of the image to revel the hidden image.

I did notice in your example there are y locations (0 to some number around 50) where the shell casings do not show. I am not able to determine why that occurs.
Virtual Nomad
Moderator
18
Years of Service
Recently Online
Joined: 14th Dec 2005
Location: SF Bay Area, USA
Posted: 20th May 2022 13:04
JosephB,

have you tried exporting? does it do the same?

either way, you could report it on the repository: https://github.com/TheGameCreators/AGK-Studio/issues.
JosephB
17
Years of Service
User Offline
Joined: 12th Sep 2006
Location:
Posted: 20th May 2022 14:13
Virtual Nomad,

I have not tried to export. I have not reported it yet either but will try to work around it for a while before I do as this is likely an error somewhere on my part. I was hoping that someone could point me in the right direction or explain what is wrong with the code and why. Basically, trying to keep learning. I did discover something about your code and the issue I noticed with the casings not showing at some y coordinate locations. If I rem-out line 69--Render()--the casings show at all locations. I have no idea why that is though.
Raven
19
Years of Service
User Offline
Joined: 23rd Mar 2005
Location: Hertfordshire, England
Posted: 22nd May 2022 02:38
It isn't a bug, but the correct behaviour.
Apple on iOS have their own Graphics Driver and API called Metal., which effectively is their own version of OpenGL (Metal v1) and Vulkan (Metal v2).
The other thing to note here is that the AppGameKit Player is Universal to AppGameKit Classic and Studio... but keep in mind it uses the Studio Renderer.

Now something to note is that the AppGameKit Player DOES NOT Support changing Rendering Mode.
On Android, it will start and always be in OpenGL (Basic) Mode.
On iOS, if you're using Metal v1 it will be OpenGL (Basic) where-as if you're on Metal v2 it will be Vulkan (Advanced).
And again... you can't change this.

It doesn't mean that when you output the Runtime Package, it will run in that mode. "Native" Code as it were, CAN change the Rendering Mode; and AppGameKit Classic Apps will use the AppGameKit Classic Renderer.
While AppGameKit Studio, you can select which you want it to start in.

It would be nice if we could have a setting for the AppGameKit Player to select which mode you start in (Basic or Advanced) on Compatible Platforms.
Certainly make it easier to test Vulkan-Based Android Apps without having to create an APK every dang time.

In any case you'll need to write support for how AppGameKit Studio (Vulkan) works for Metal v2 Devices., assuming you want to test via AppGameKit Player.
JosephB
17
Years of Service
User Offline
Joined: 12th Sep 2006
Location:
Posted: 23rd May 2022 21:51
Virtual Nomad/Raven,

Thank you. I finally got it working and it looks nice on Windows and Android, but the iOS is not pretty (probably an Apple thing that I have no idea how to make work properly yet). I had to finally write some short VS and PS code that took care of the performance issues. For those interested I included the AppGameKit code and the shader codes. The color in this instance used to make parts of the covering sprite become transparent must be color (RGB) 12, 12, 12 or less. I used 0, 0, 0 as the color to render onto the image.

AGK:


VS:


PS:
Virtual Nomad
Moderator
18
Years of Service
Recently Online
Joined: 14th Dec 2005
Location: SF Bay Area, USA
Posted: 24th May 2022 01:54
Quote: "iOS is not pretty"

might help if you add #renderer "basic" to your code?
JosephB
17
Years of Service
User Offline
Joined: 12th Sep 2006
Location:
Posted: 24th May 2022 15:20 Edited at: 24th May 2022 18:09

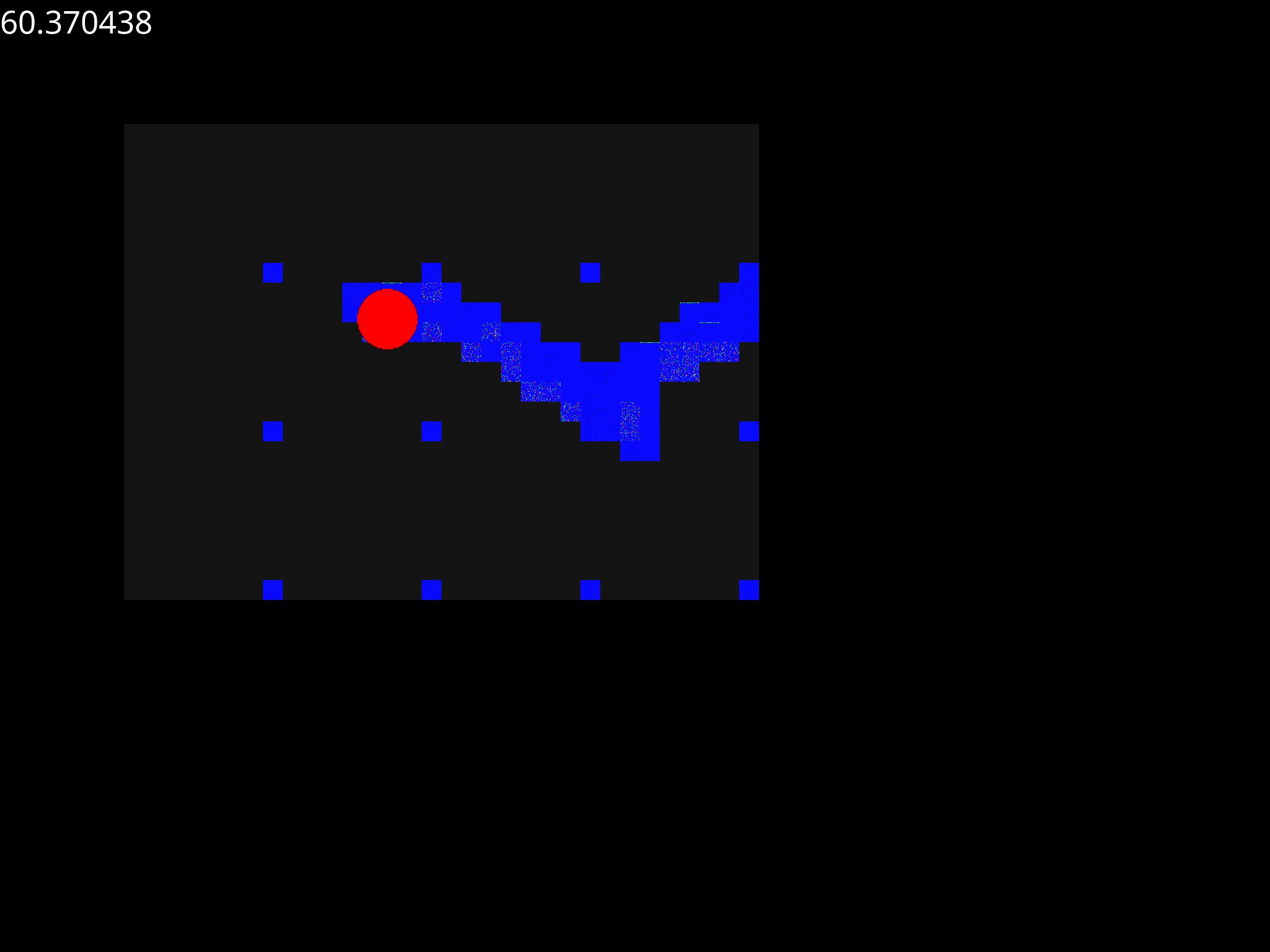

I already tried the #renderer "Basic", but AppGameKit classic seems to ignore that command as I can say #renderer "hello" and no errors. I did try this in AppGameKit Studio and while #renderer"Basic" or the other possibilities seem to do something, the problem still persists. It just looks blocky. I attached a screenshot.


Attachments

Login to view attachments
