DarkBASIC Discussion / Camera Structure Question

Author
Message
Relativity
20
Years of Service
User Offline
Joined: 29th Mar 2005
Location: Position is relative.
Posted: 29th Aug 2005 19:39
Link
If the camera were portrayed as a 3D object, would it be curved or would it resemble a plain?

This is a test. This is only a test. If this were an actual emergency you'd all be dead.
Back to top
Profile PM Email
Sven B
20
Years of Service
User Offline
Joined: 5th Jan 2005
Location: Belgium
Posted: 29th Aug 2005 20:33
Link

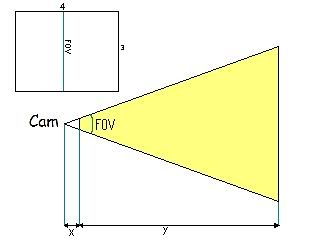

A point:



(X is the minimum viewing distance, X+Y is the maximum viewing distance, fov = camera field of view)

Immunity and Annihalation makes Immunihalation...
Back to top
Profile PM Email
Relativity
20
Years of Service
User Offline
Joined: 29th Mar 2005
Location: Position is relative.
Posted: 31st Aug 2005 16:51
Link
Thanks, Sven B. That's very helpful.

This is a test. This is only a test. If this were an actual emergency you'd all be dead.
Back to top
Profile PM Email
Sven B
20
Years of Service
User Offline
Joined: 5th Jan 2005
Location: Belgium
Posted: 31st Aug 2005 21:06
Link
Note that 4 and 3 aren't measures. It means that the width stands to the height, as 4 stands to 3.

In real, this is the same as the screen width() and screen height().

Immunity and Annihalation makes Immunihalation...
Back to top
Profile PM Email
Relativity
20
Years of Service
User Offline
Joined: 29th Mar 2005
Location: Position is relative.
Posted: 2nd Sep 2005 22:32 Edited at: 2nd Sep 2005 23:13
Link
Okay, I have another question. Does the minimum viewing distance curve around the camera so it is always distance X from the camera, or is the minimum viewing distance X only at the nearest point to the camera point? In other words, does the minimum viewing distance wrap around the camera point like a sphere, or is it like a plain that is a distance of X perpendicular to the camera?

[Edit]
Also, if we were to imagine all 2D operations were done on a shape a certain distance away from the camera (for example, the mouse), would the distance be X and what would the shape be?
Back to top
Profile PM Email
Sven B
20
Years of Service
User Offline
Joined: 5th Jan 2005
Location: Belgium
Posted: 3rd Sep 2005 13:20
Link
Look at my picture.

the plain is perpendicular with the distance of X to the camera.
Same with the maximum viewing distance.

When a camera is pointing with a certain angle between 0 and 90°, then the shape on the ground should be something like this:



Immunity and Annihalation makes Immunihalation...
Back to top
Profile PM Email
Relativity
20
Years of Service
User Offline
Joined: 29th Mar 2005
Location: Position is relative.
Posted: 5th Sep 2005 19:23 Edited at: 6th Sep 2005 19:00
Link
Ok, last question (hopefully). If we imagine that all 2D operations were drawn on a plain a certain distance away from the camera in 3D space, what would that distance be?

[Edit]
Nevermind, I got it. Thanks for your assistance Sven B.
Back to top
Profile PM Email
Sven B
20
Years of Service
User Offline
Joined: 5th Jan 2005
Location: Belgium
Posted: 7th Sep 2005 14:27
Link
SithSpawn,

I read your code in the codebase.
I can see you fully understand the camera structure now.

Nice job.

Immunity and Annihalation makes Immunihalation...
Back to top
Profile PM Email
Relativity
20
Years of Service
User Offline
Joined: 29th Mar 2005
Location: Position is relative.
Posted: 7th Sep 2005 16:58
Link
Thanks
Back to top
Profile PM Email
master programmer
19
Years of Service
User Offline
Joined: 30th May 2005
Location: 3D Space
Posted: 10th Sep 2005 11:36
Link
Pretty Picture
